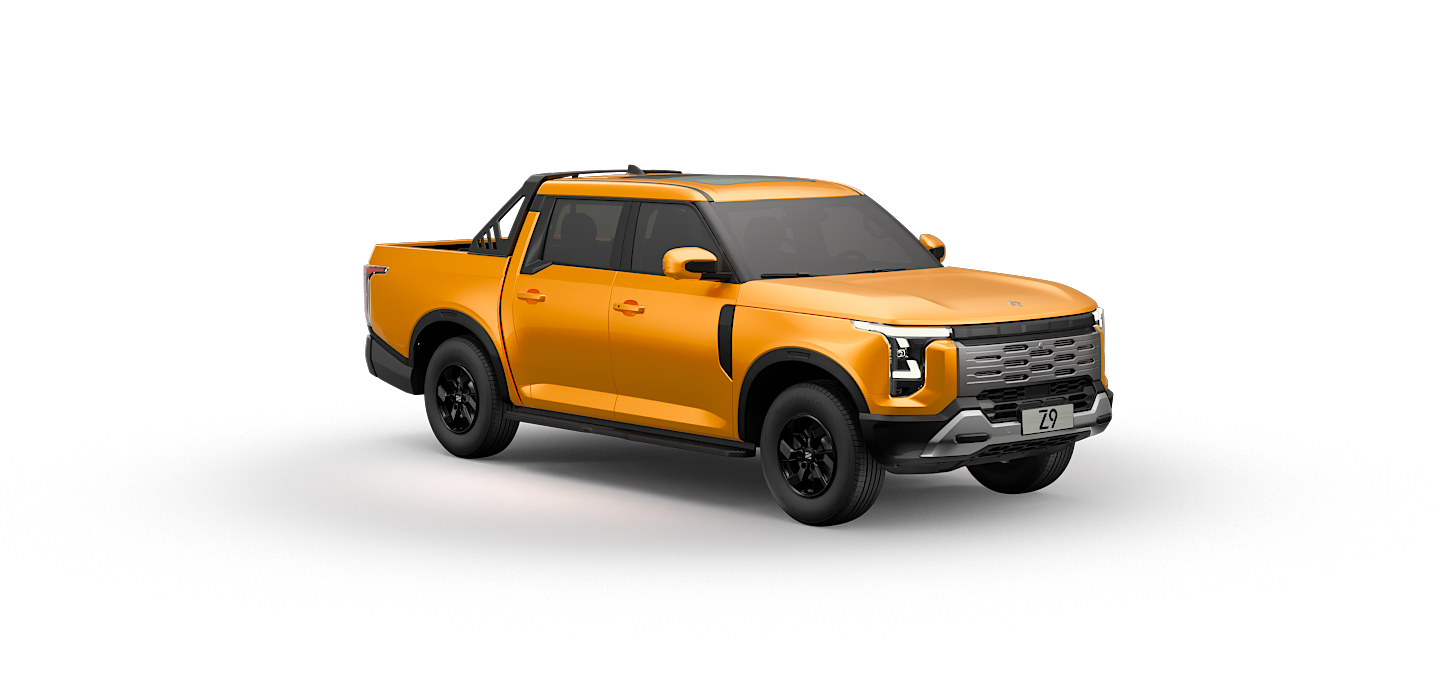

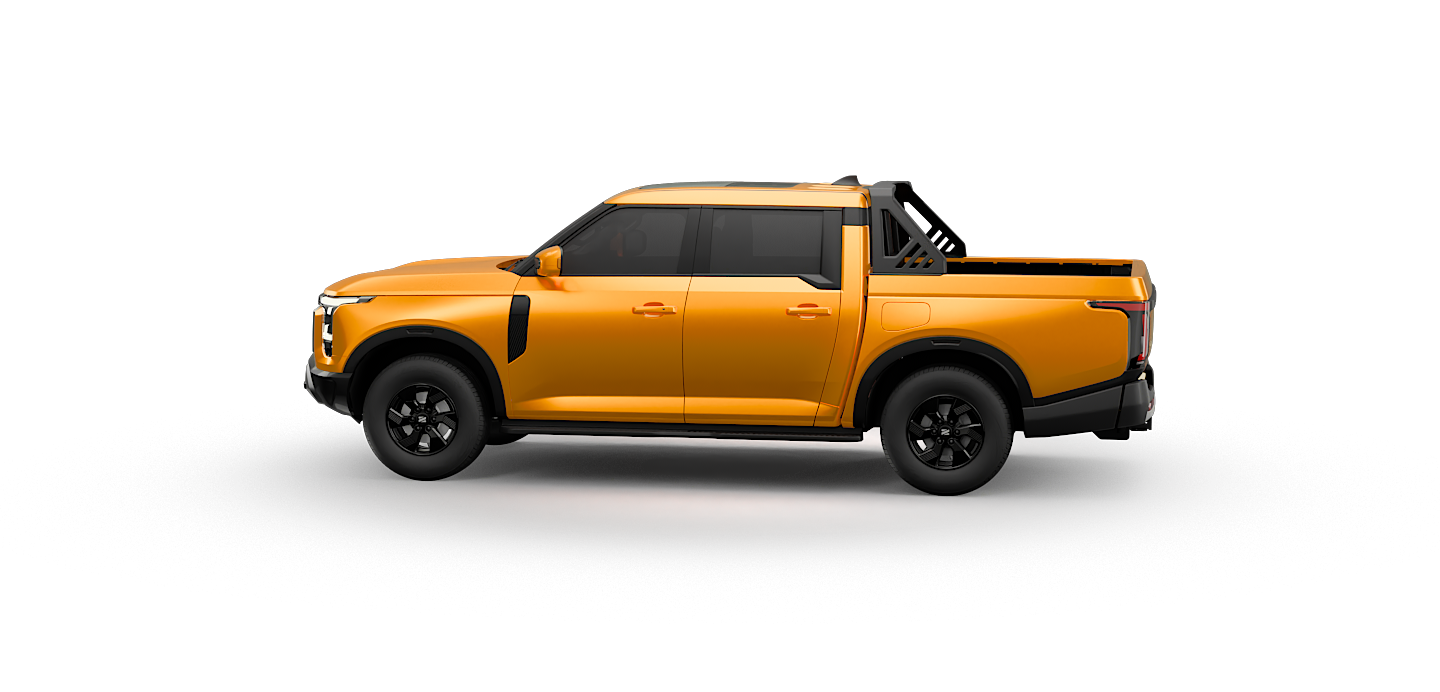

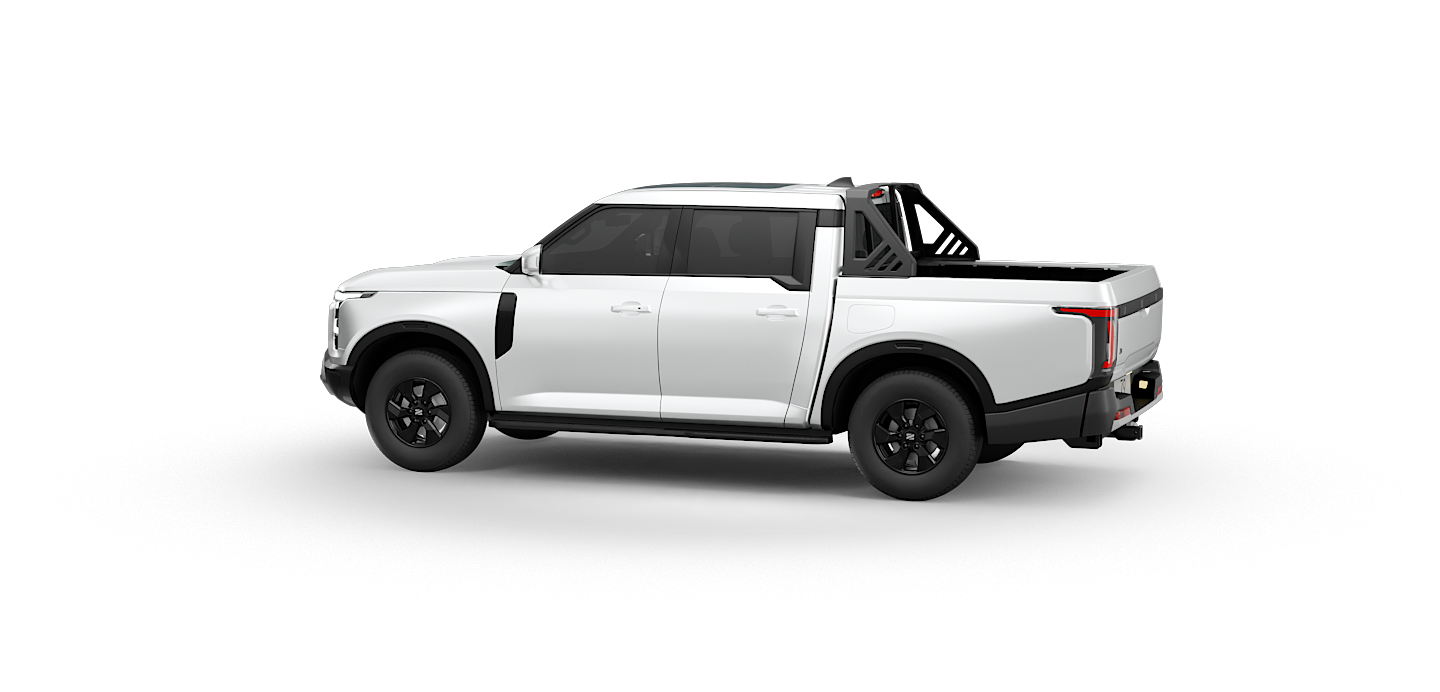

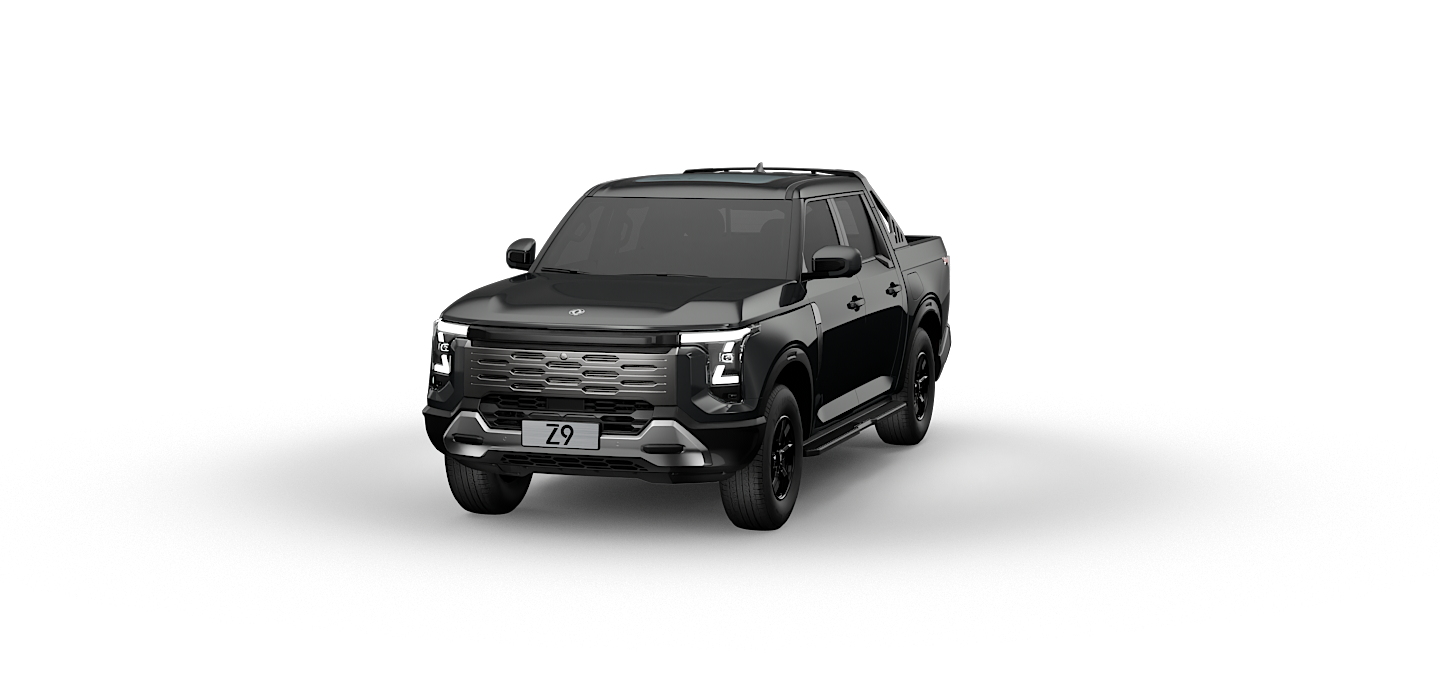

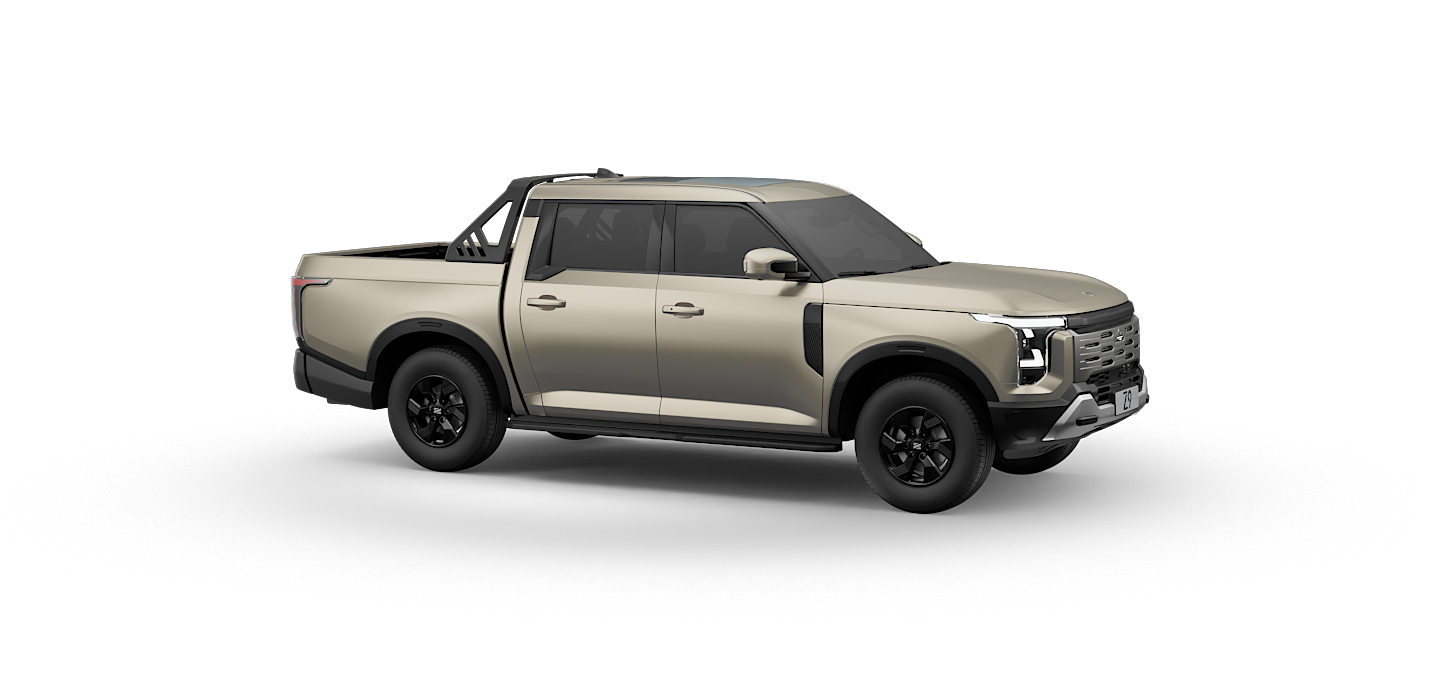

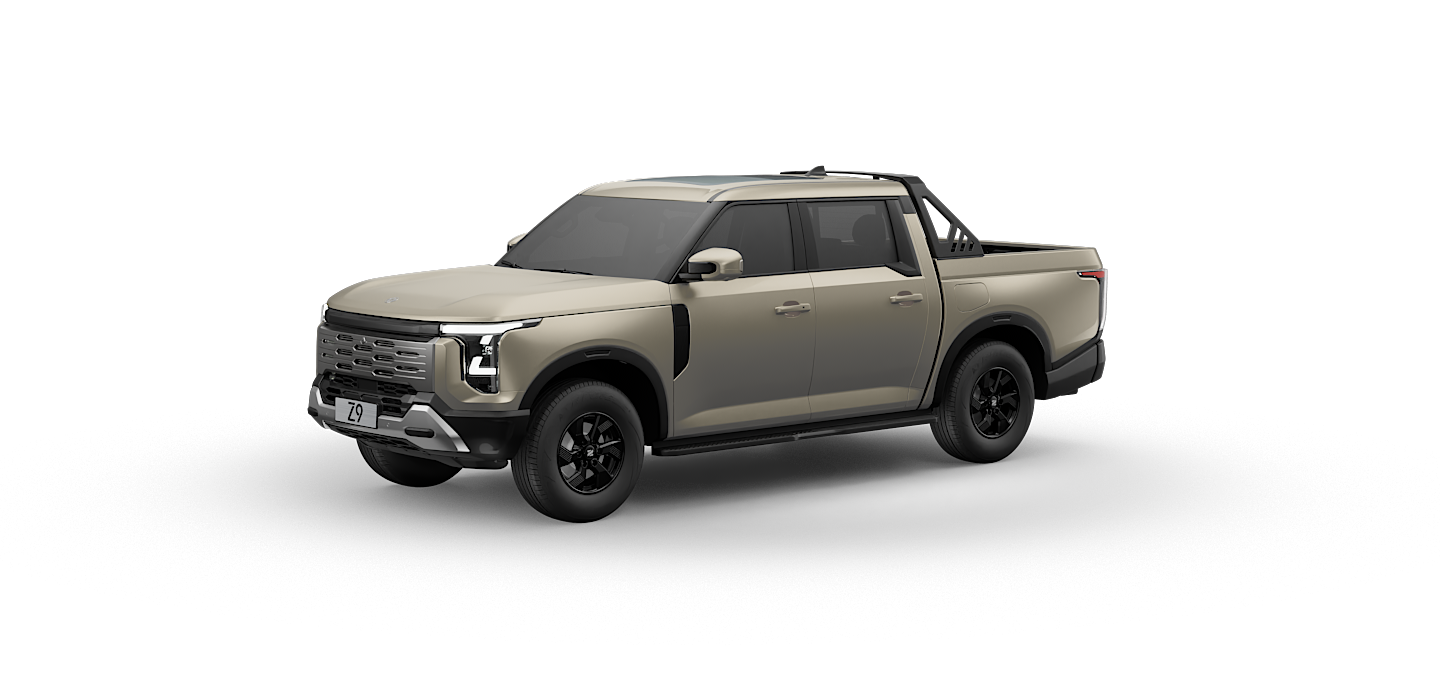

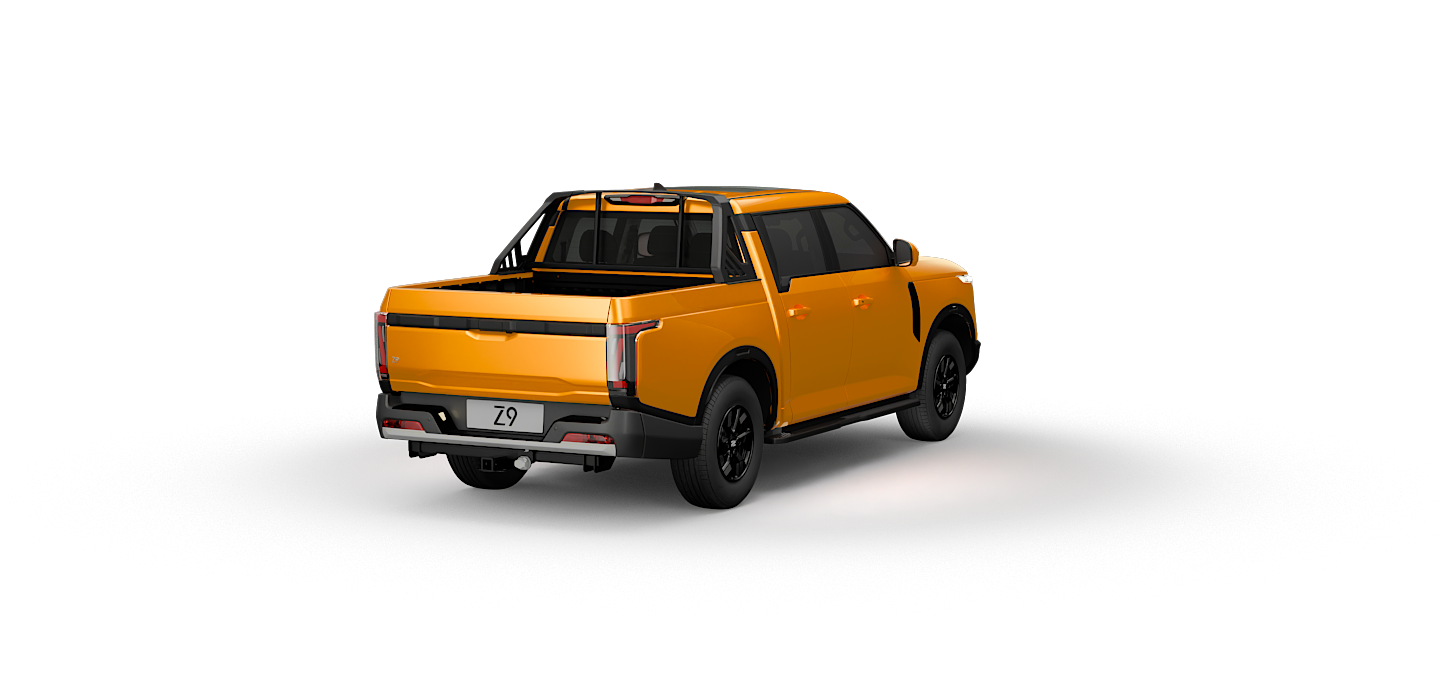

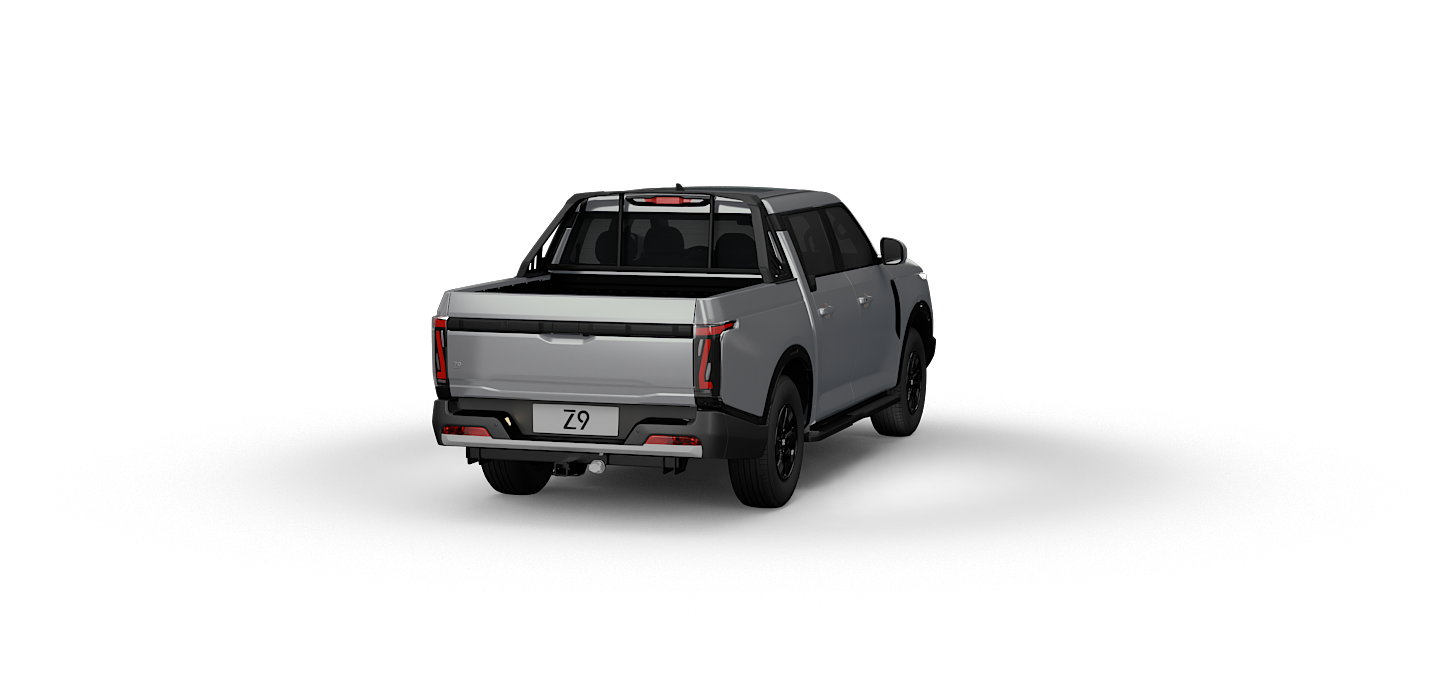

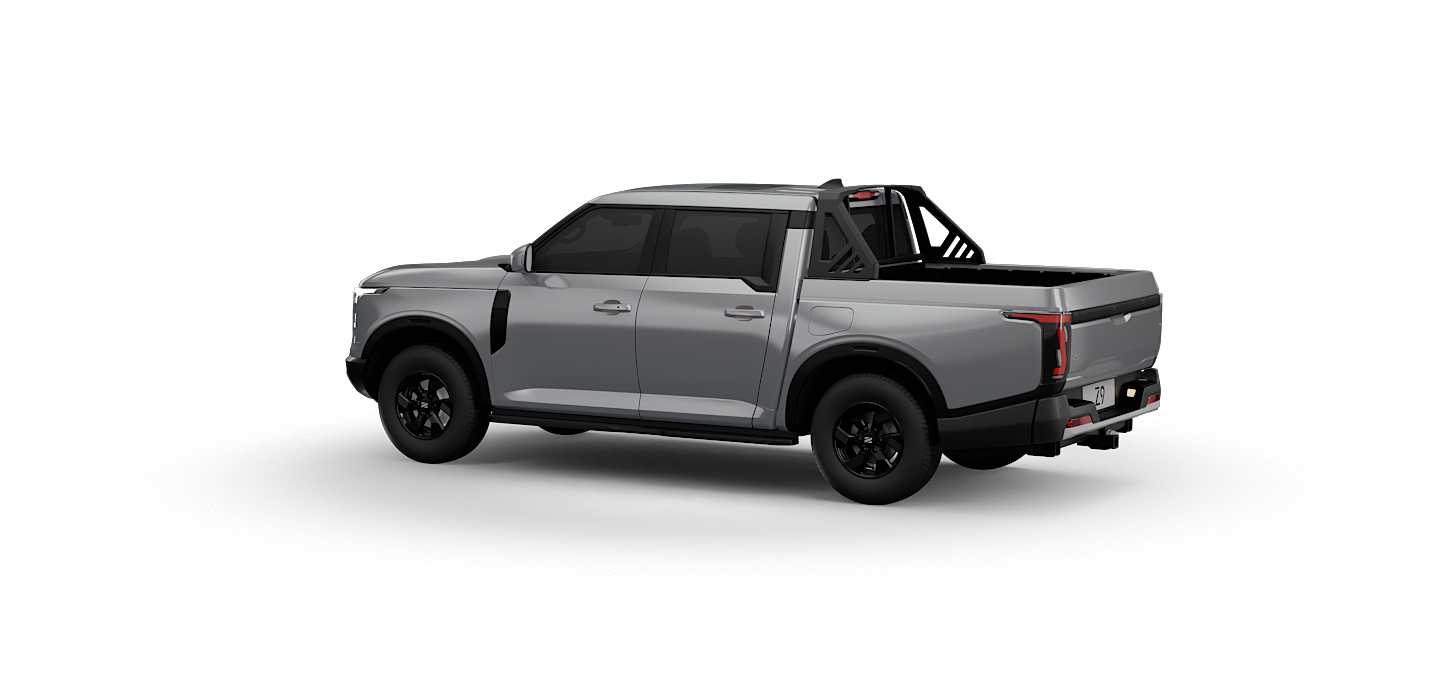

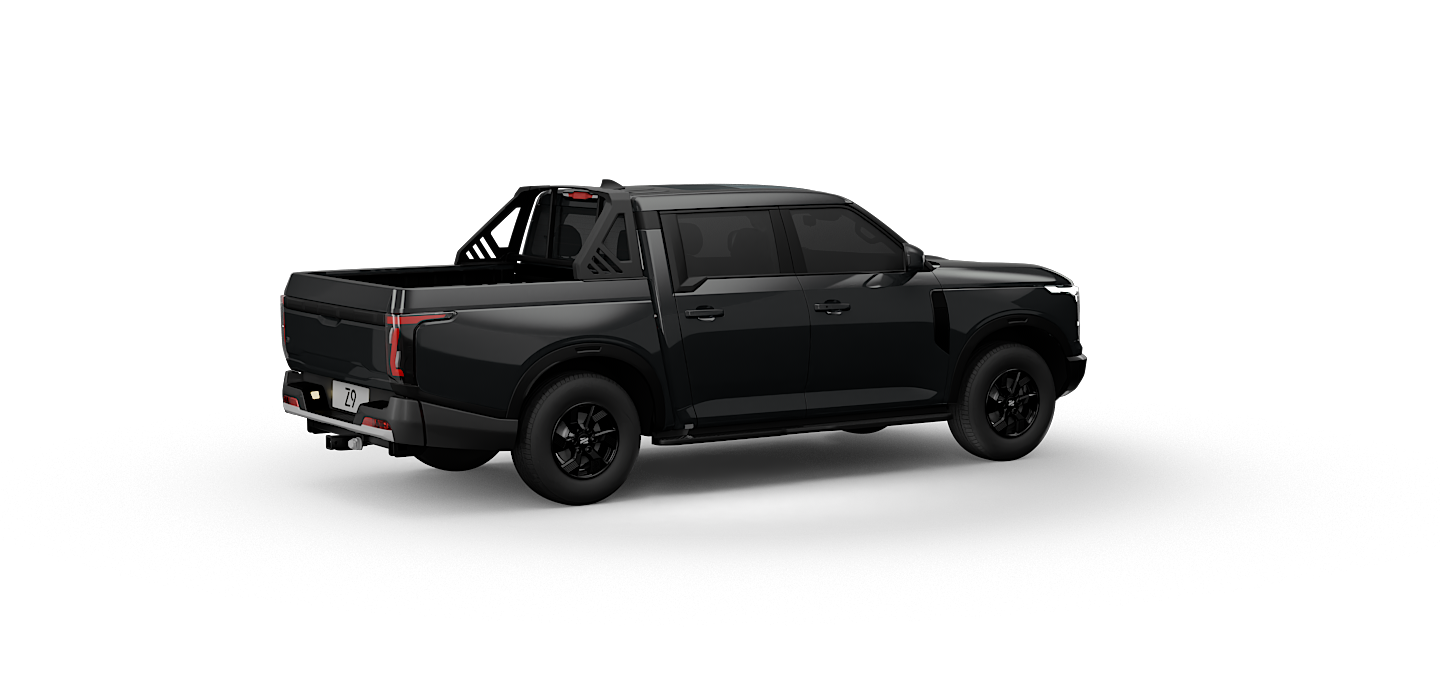

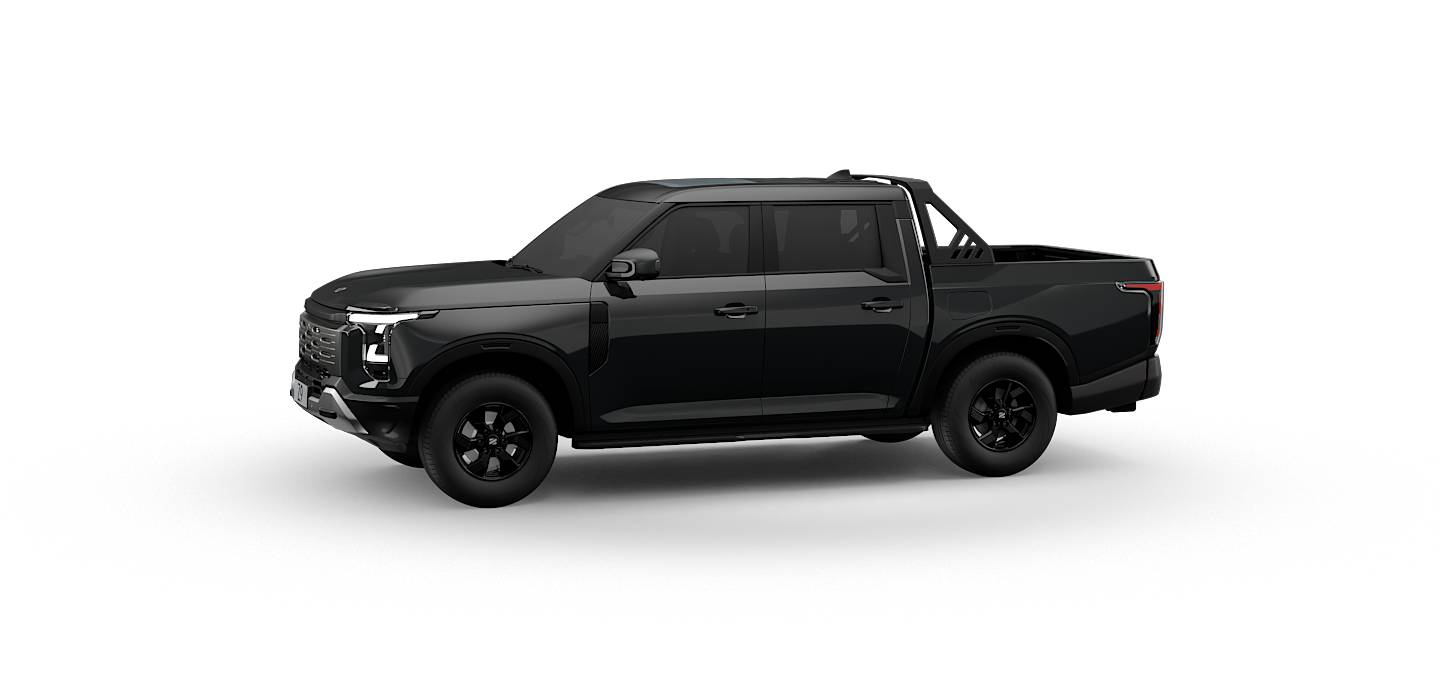

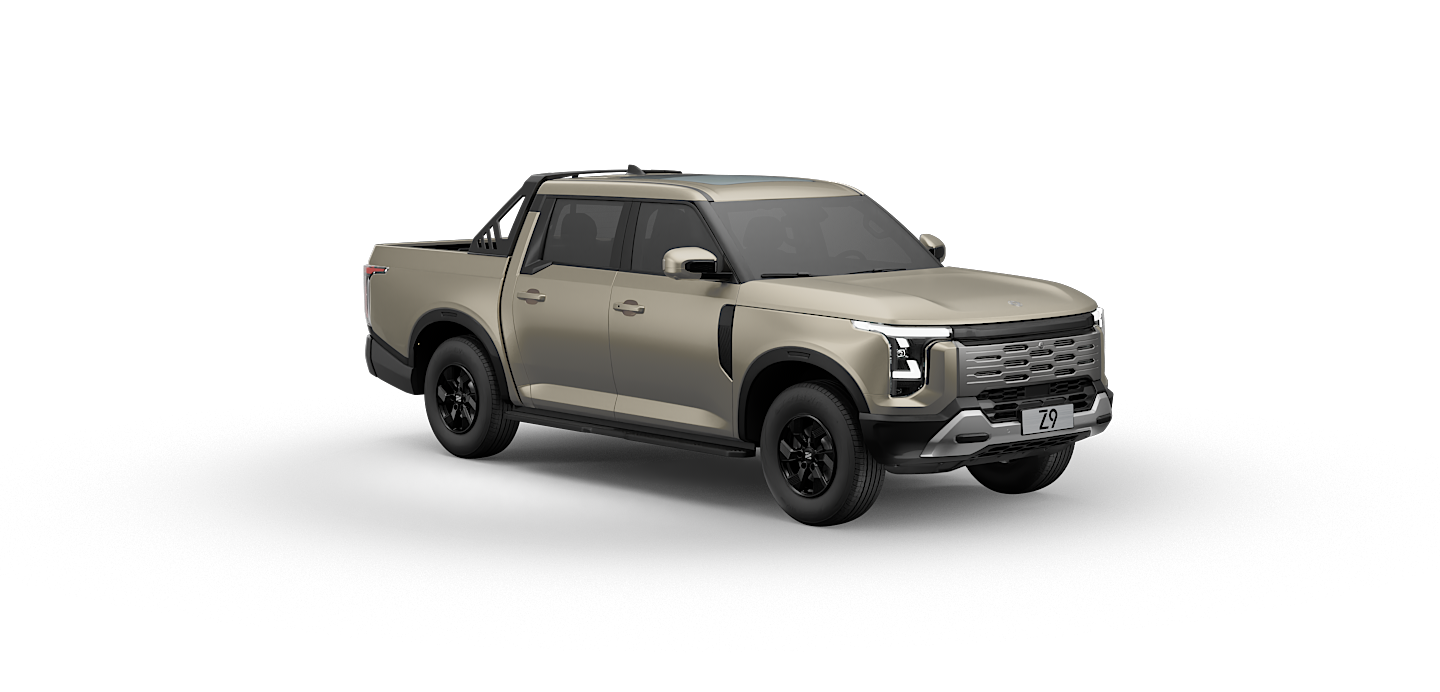

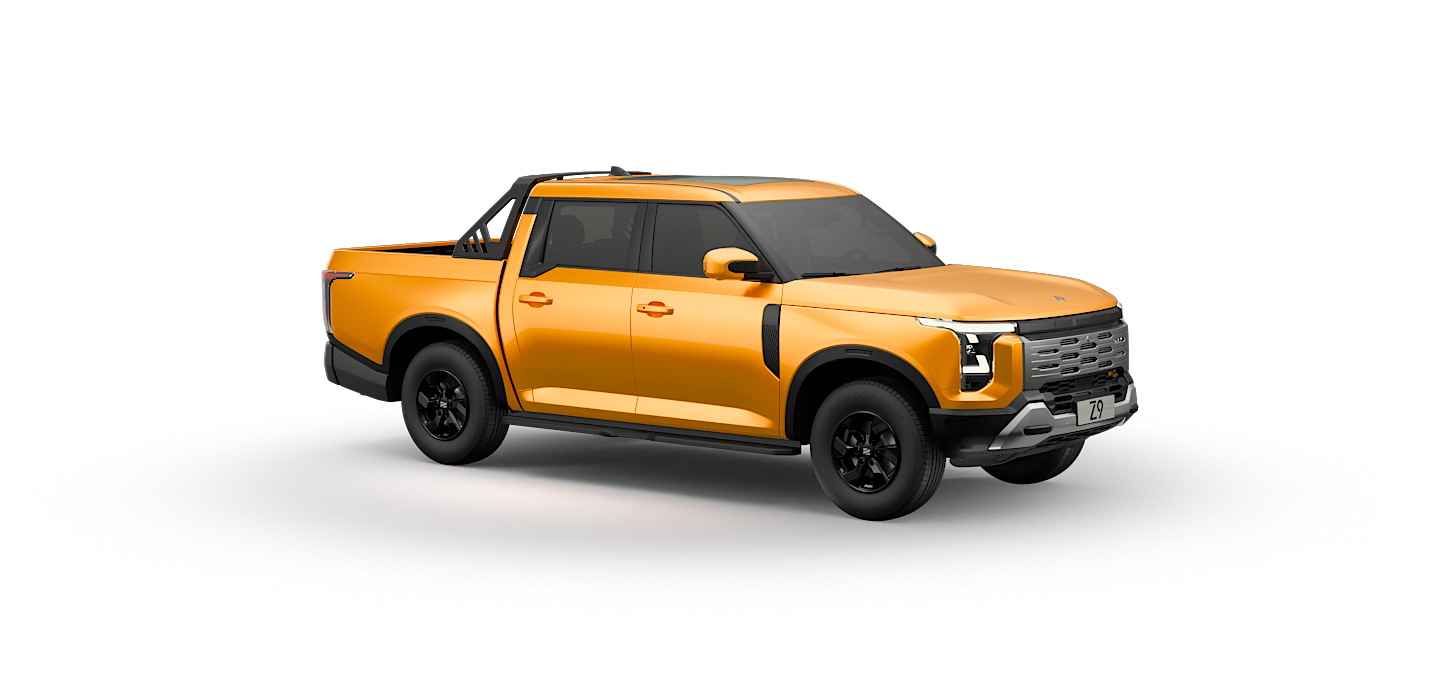

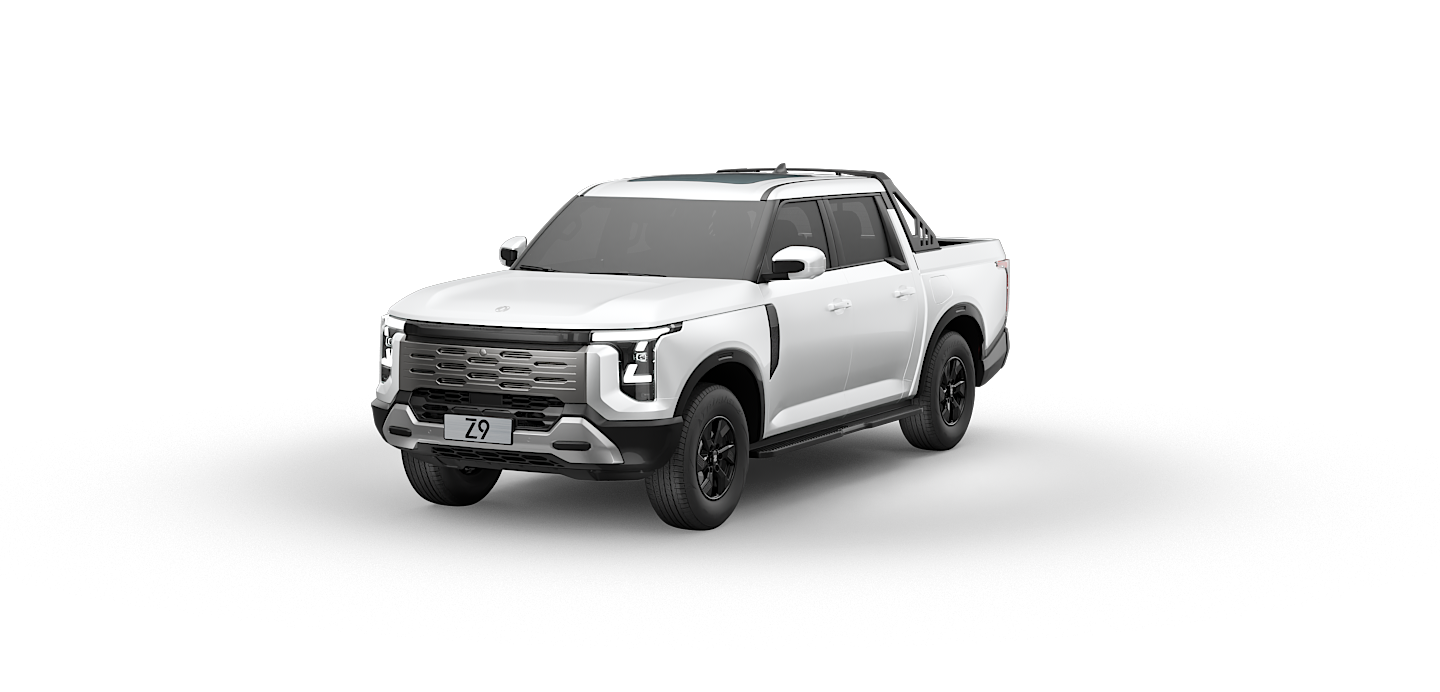

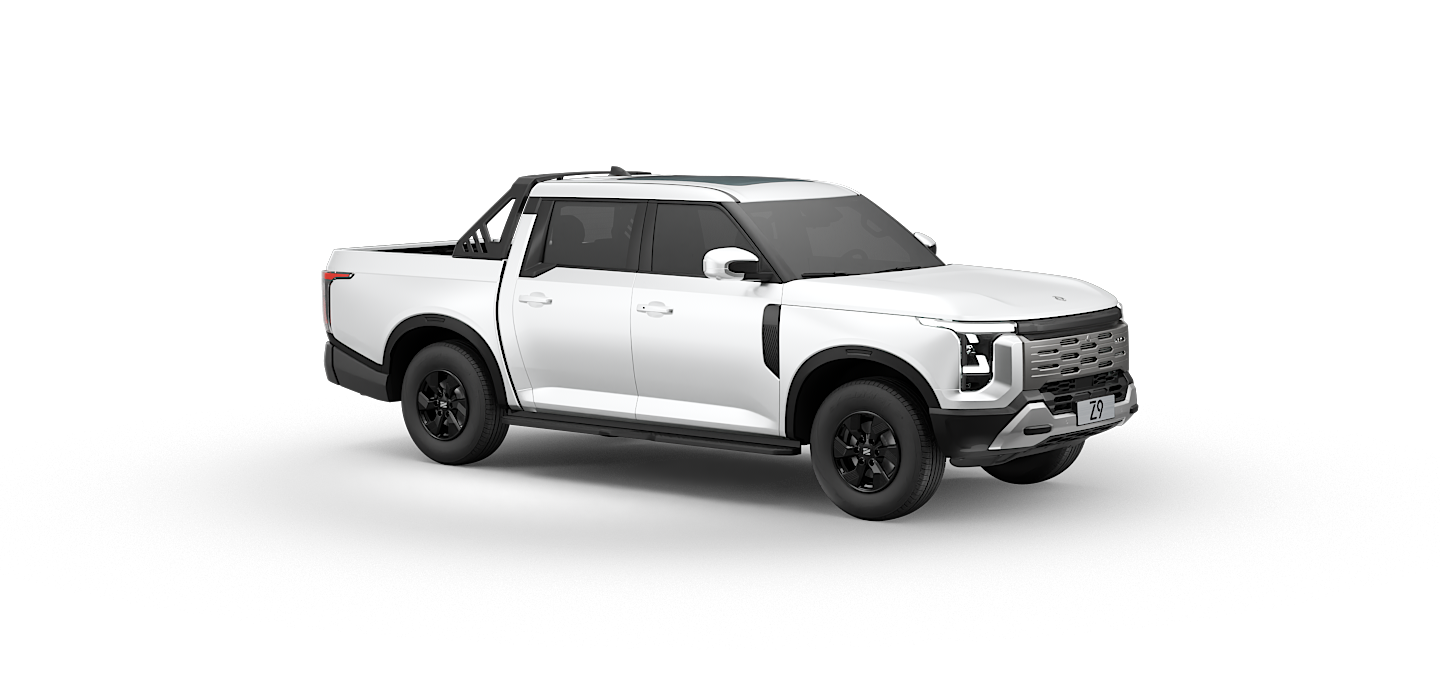

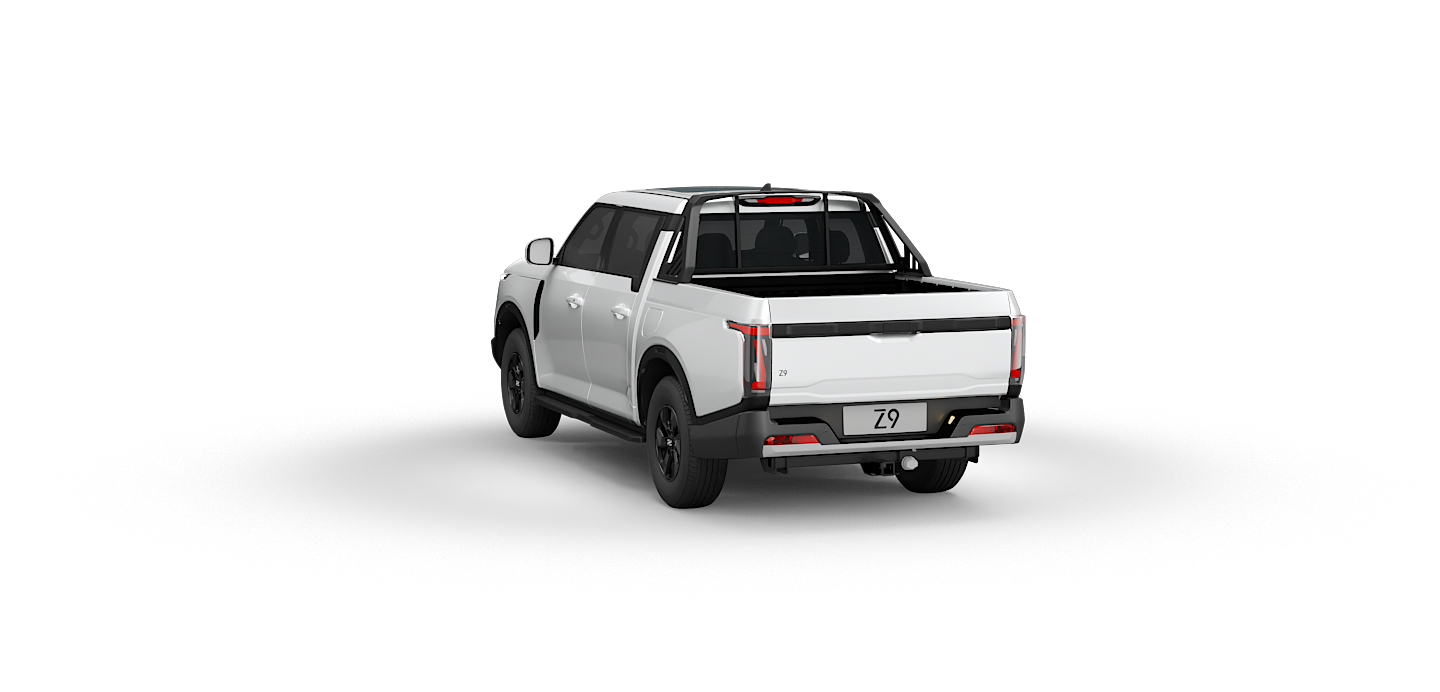

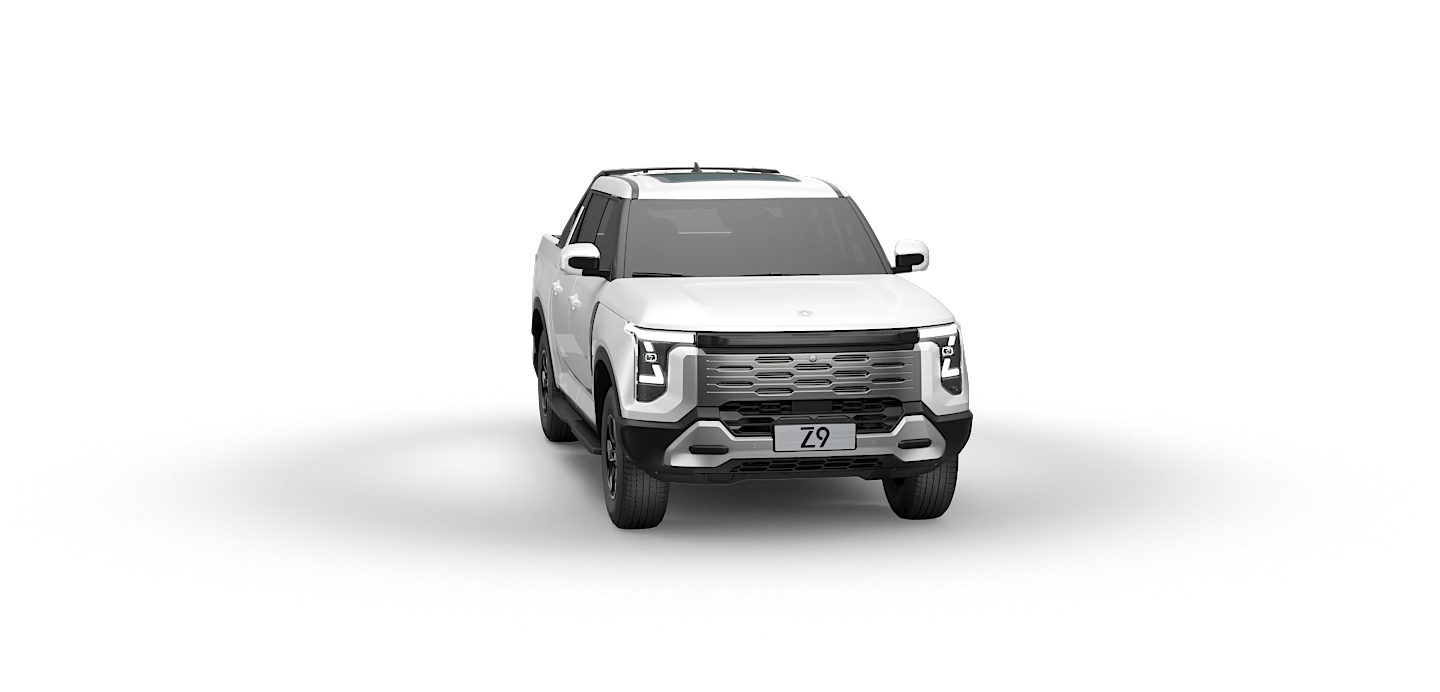

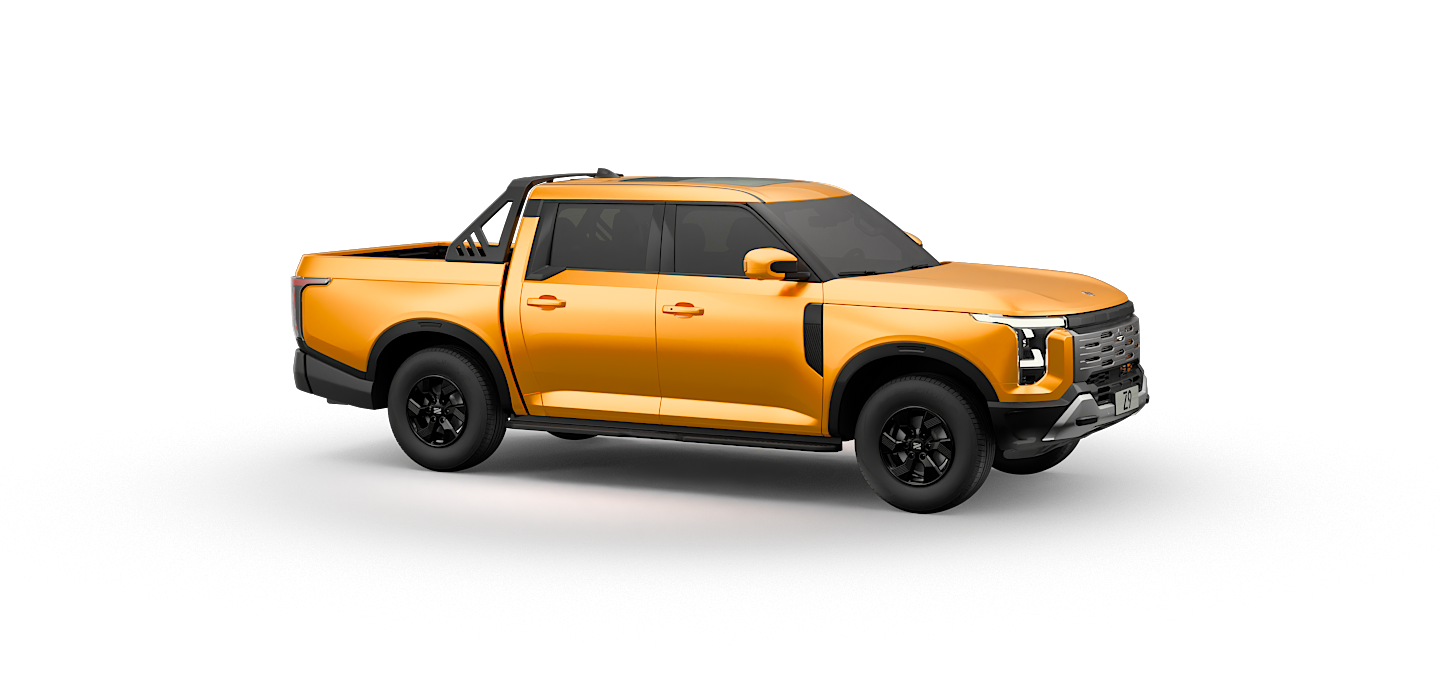

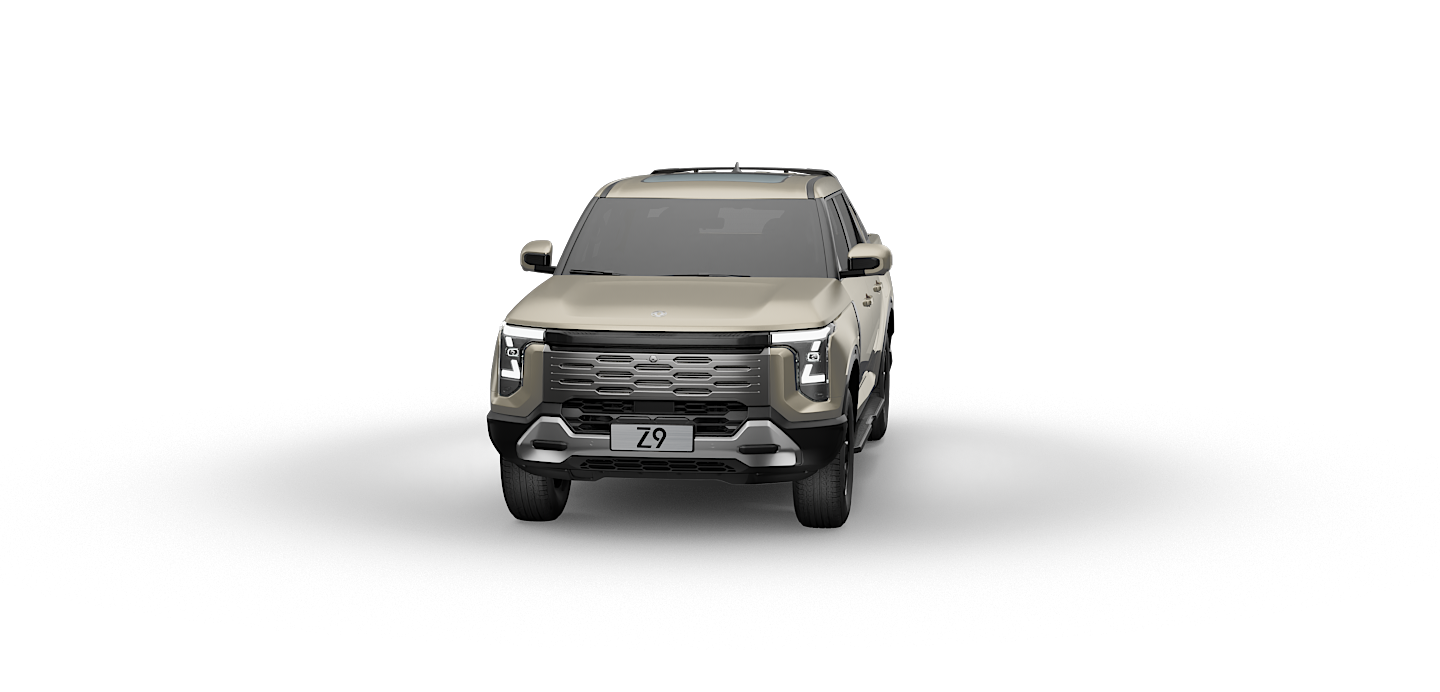

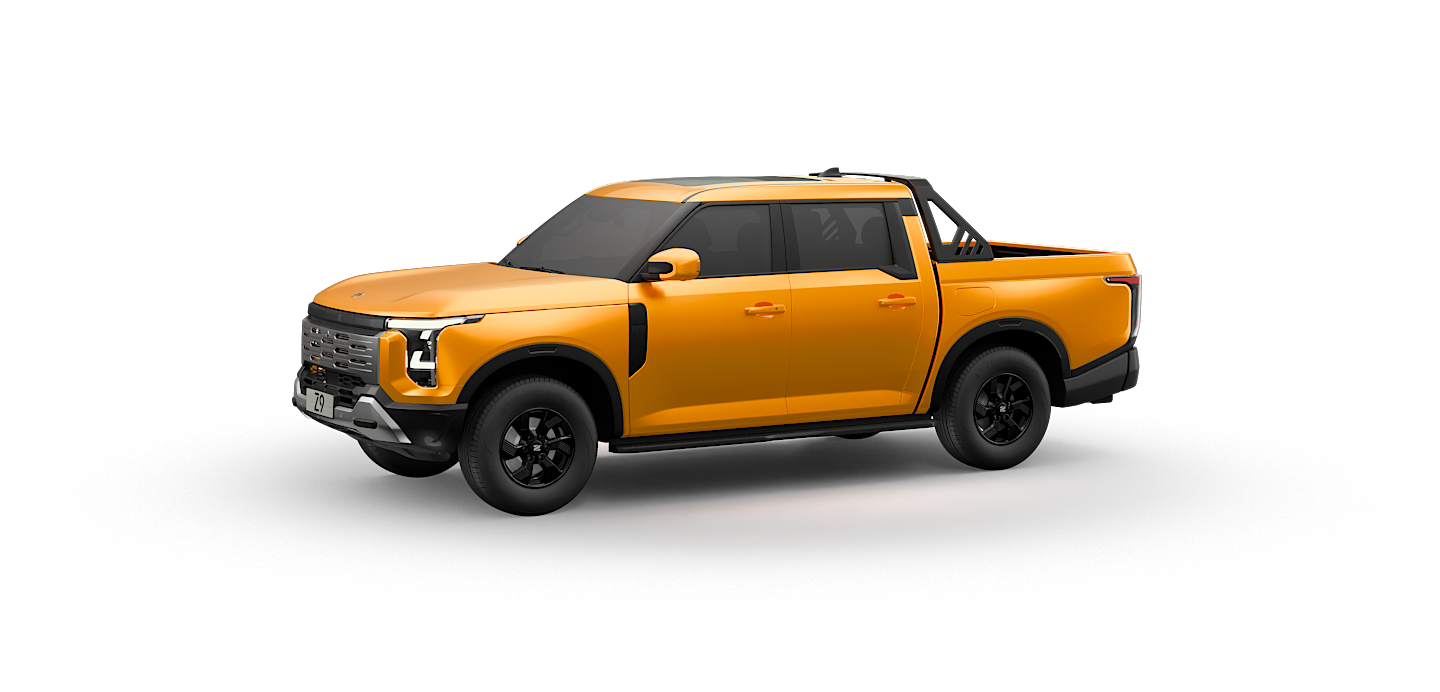

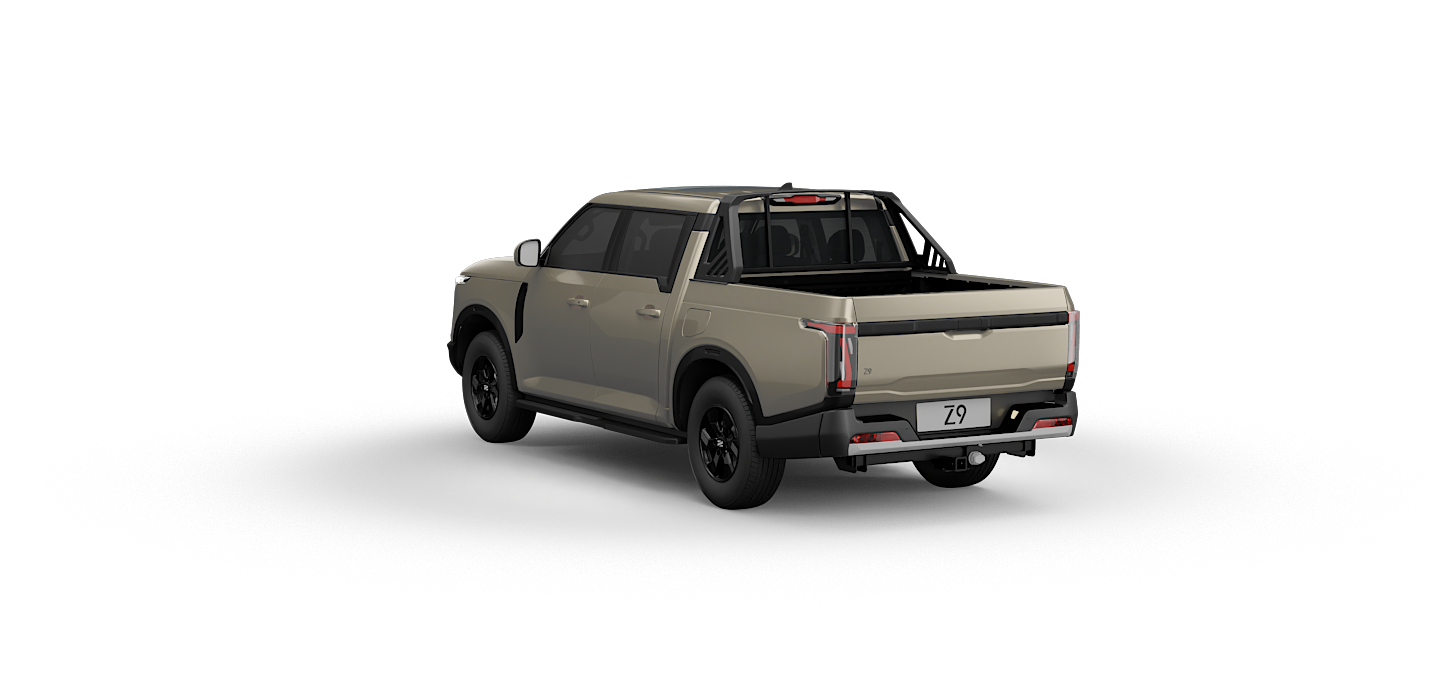

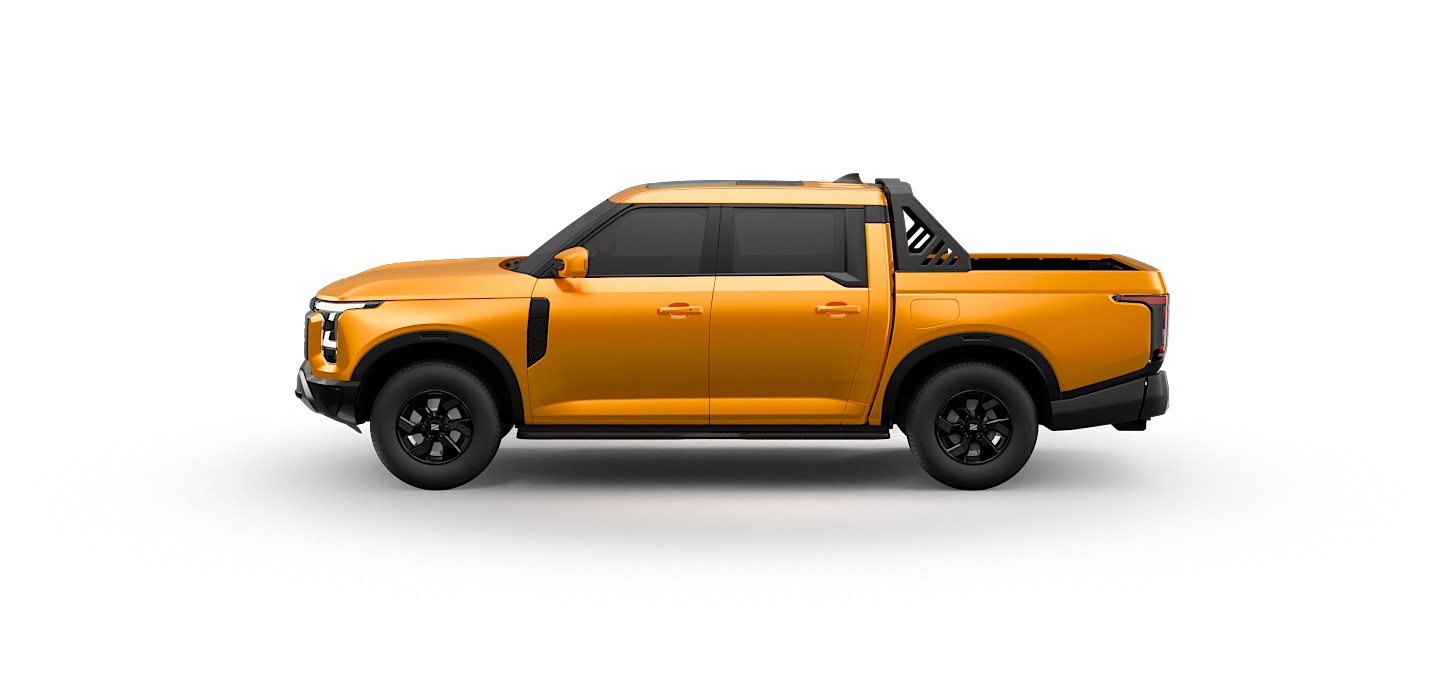

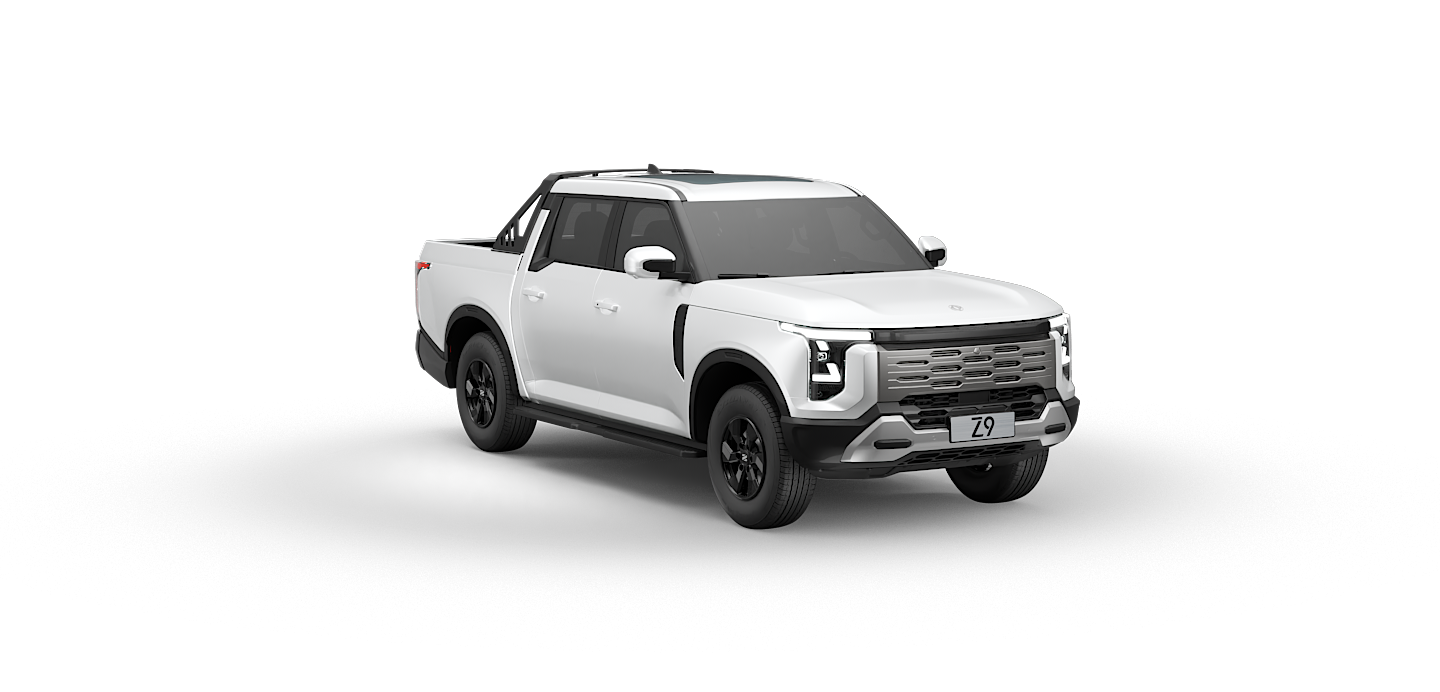

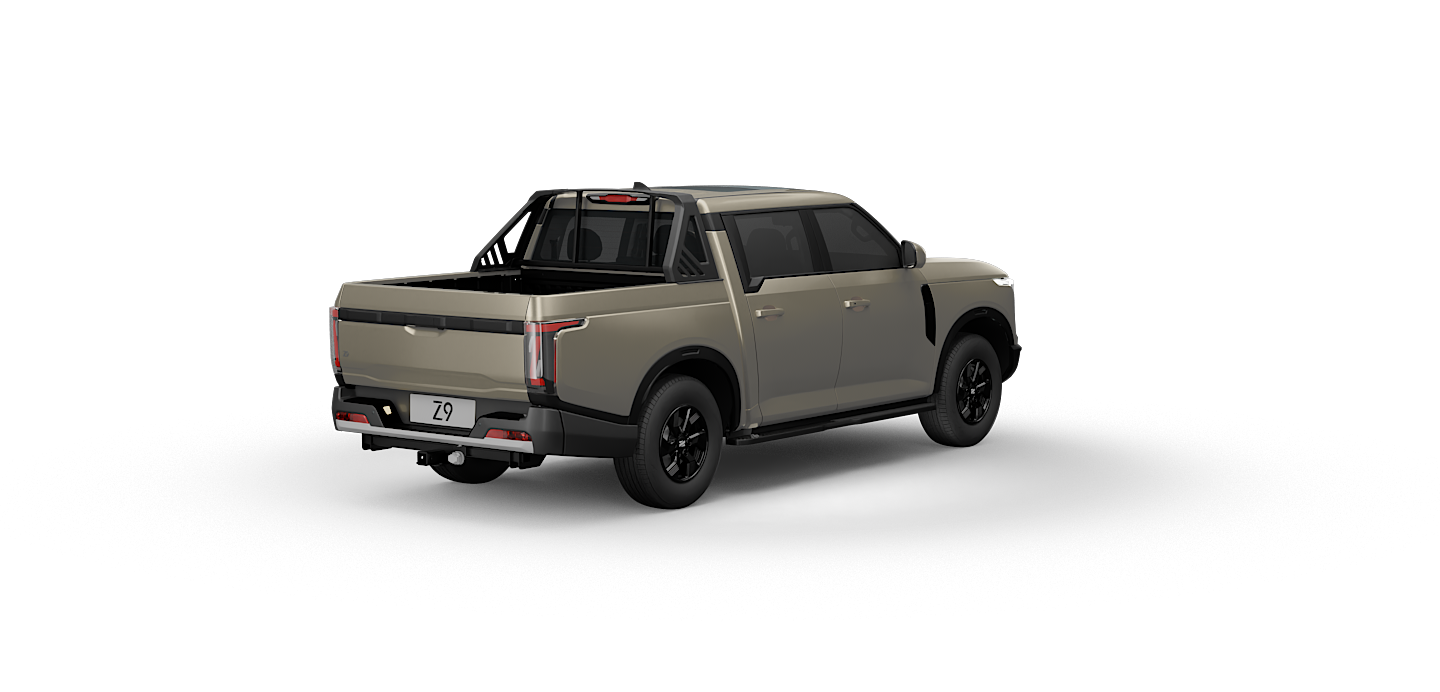

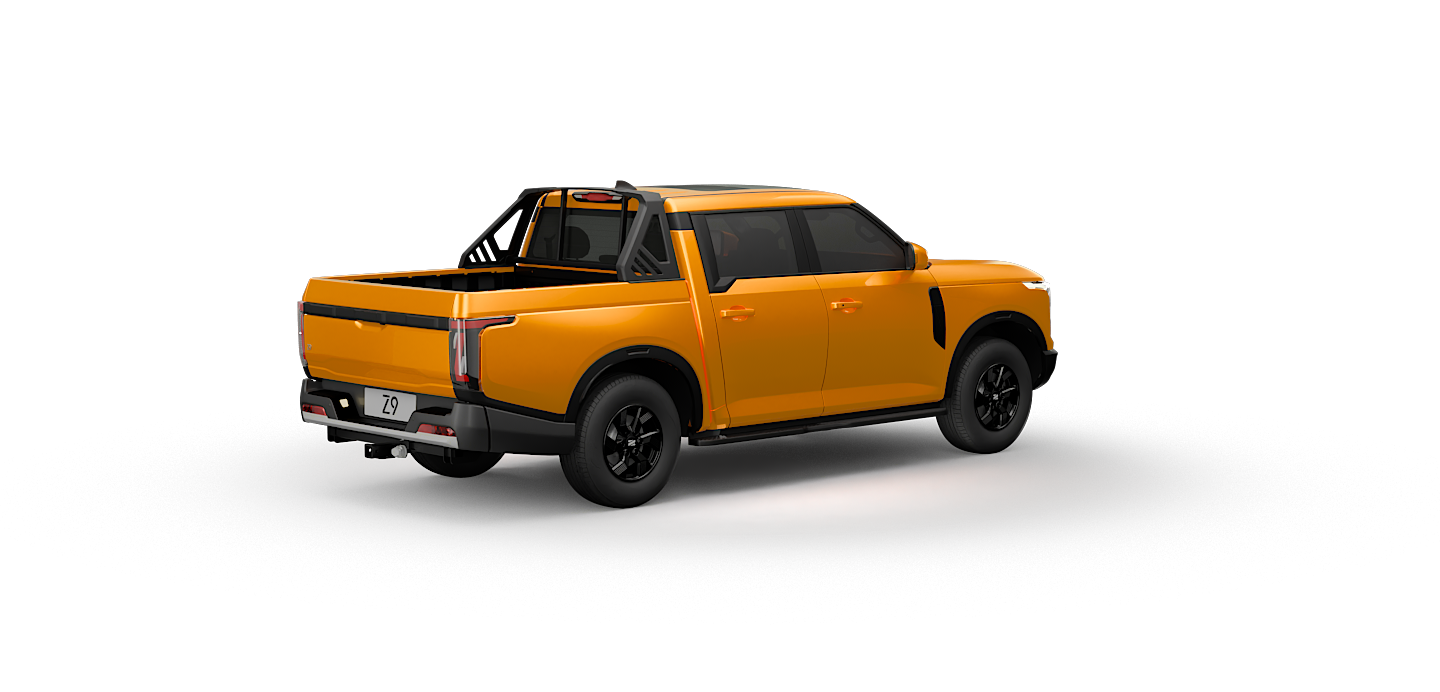

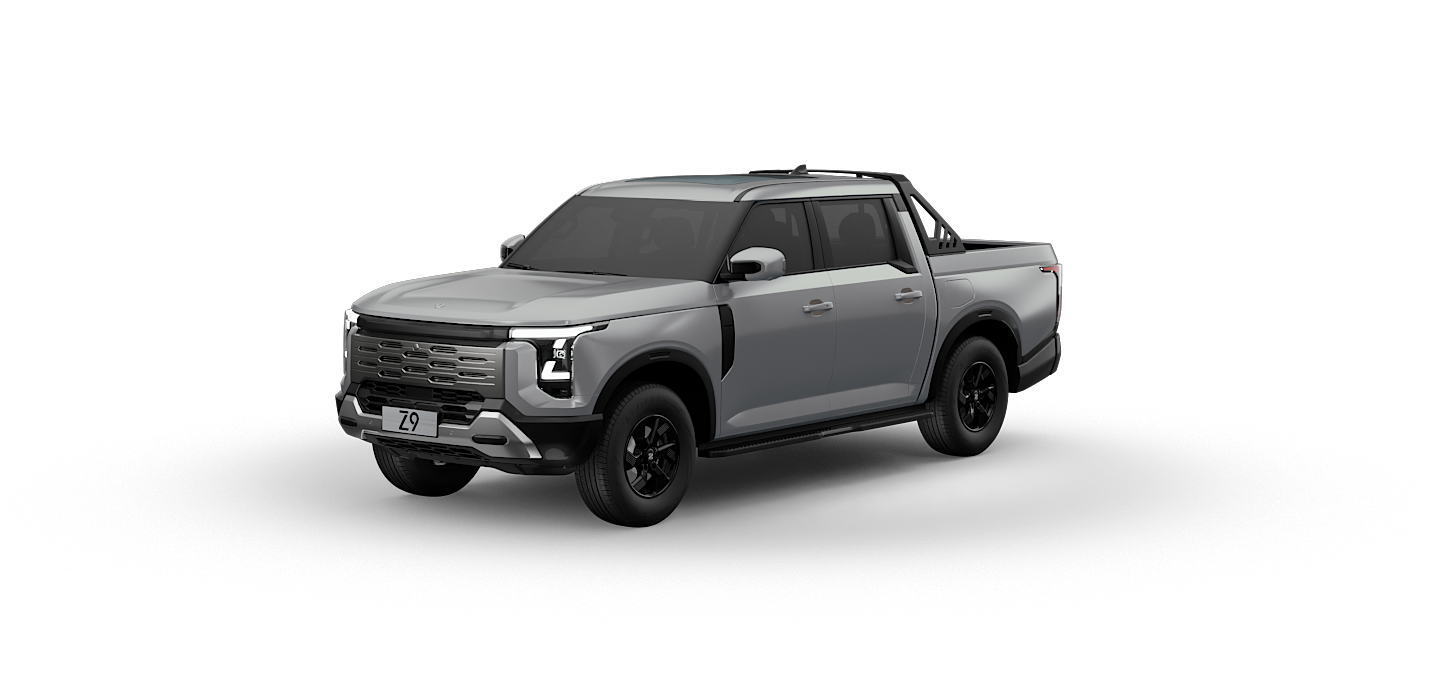

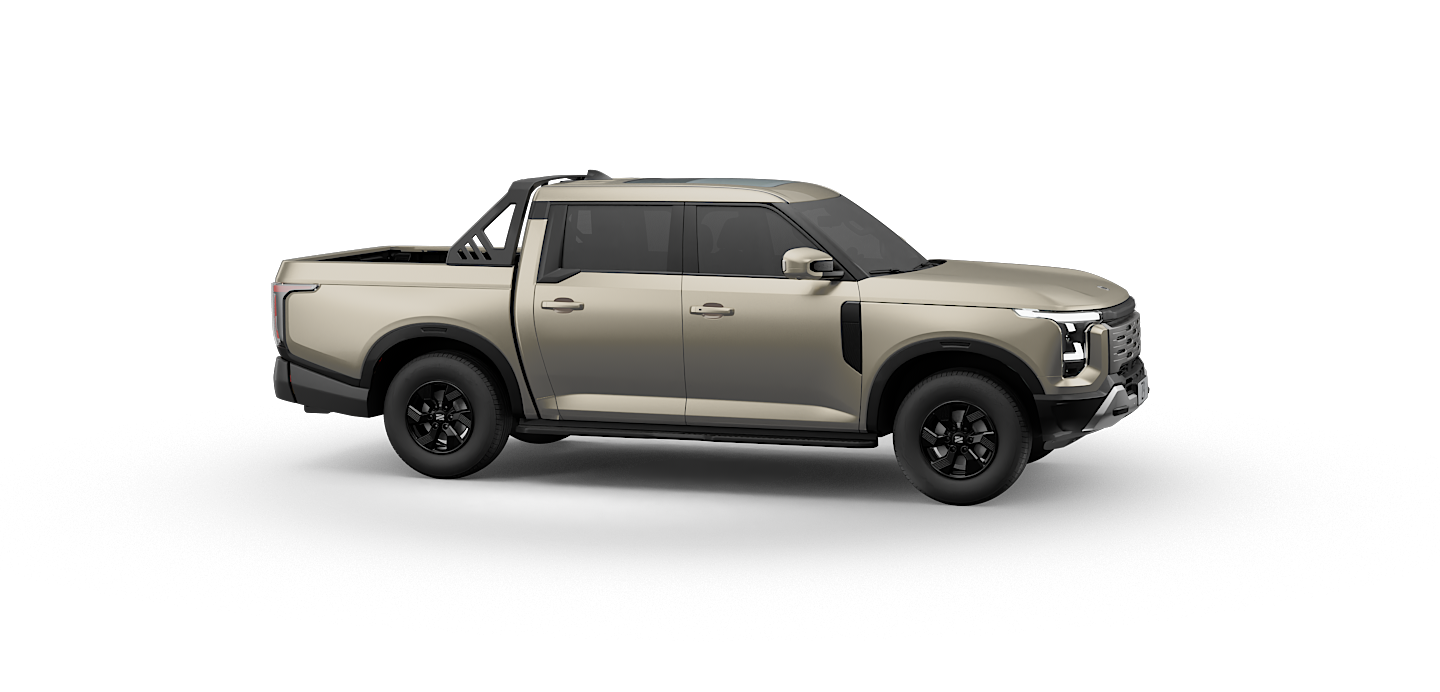

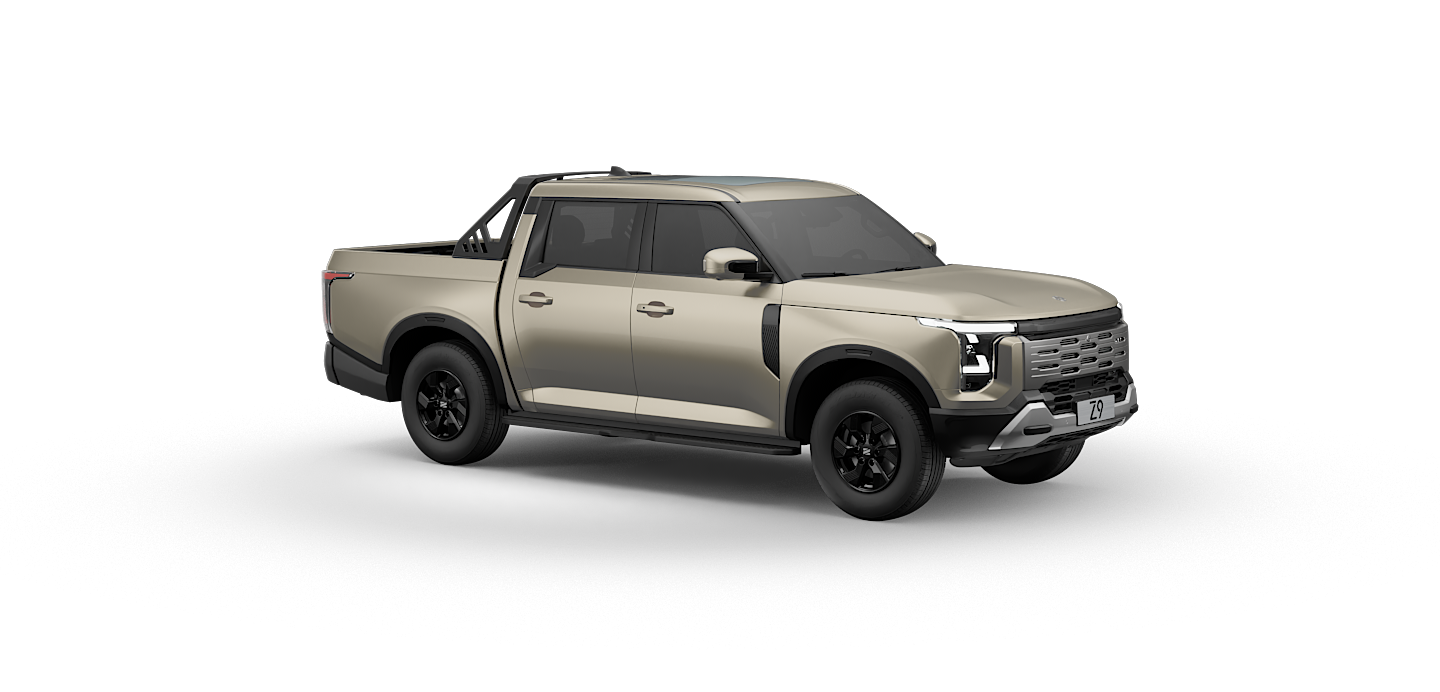

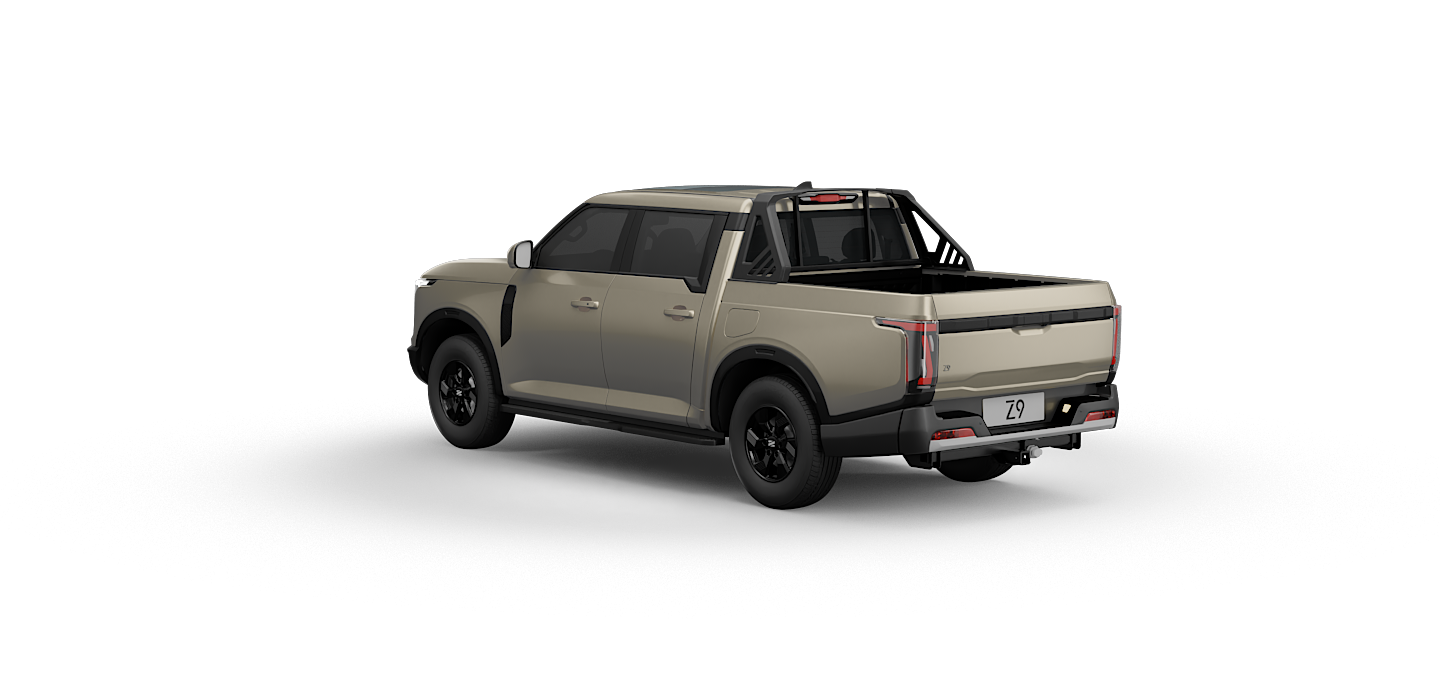

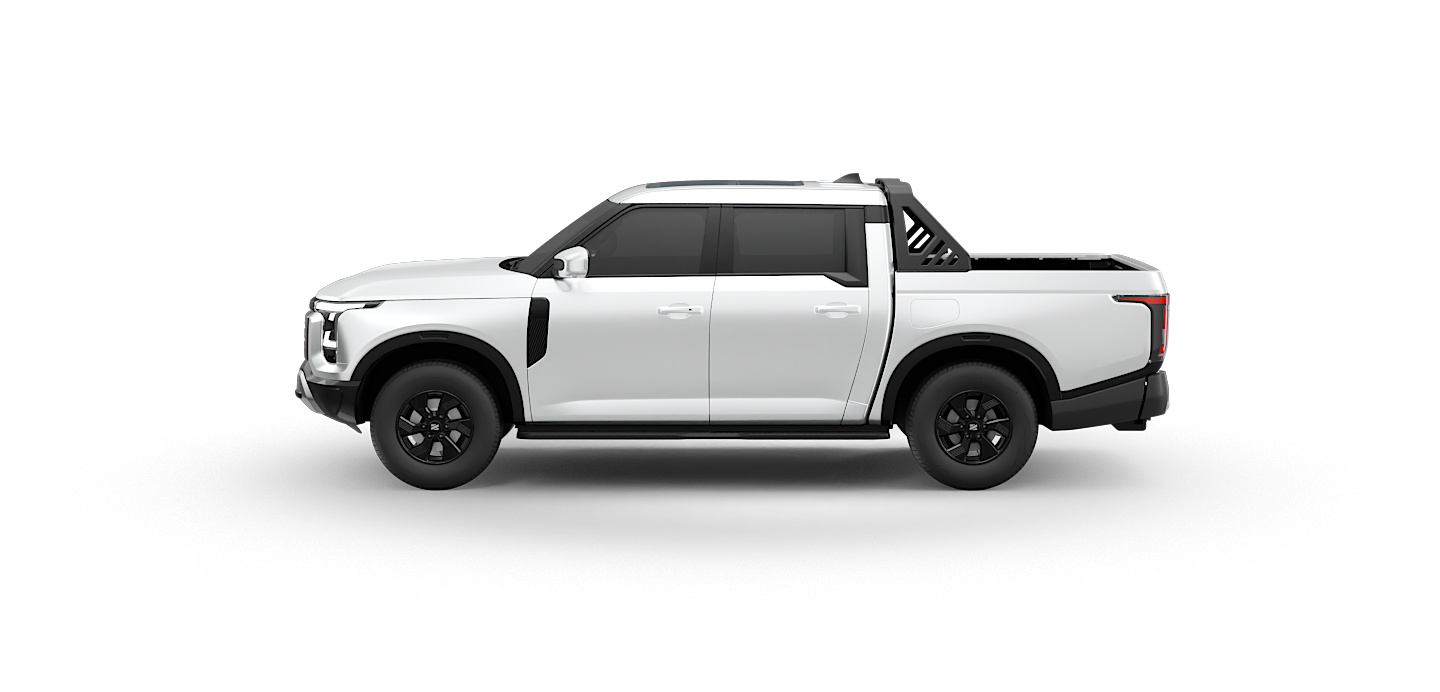

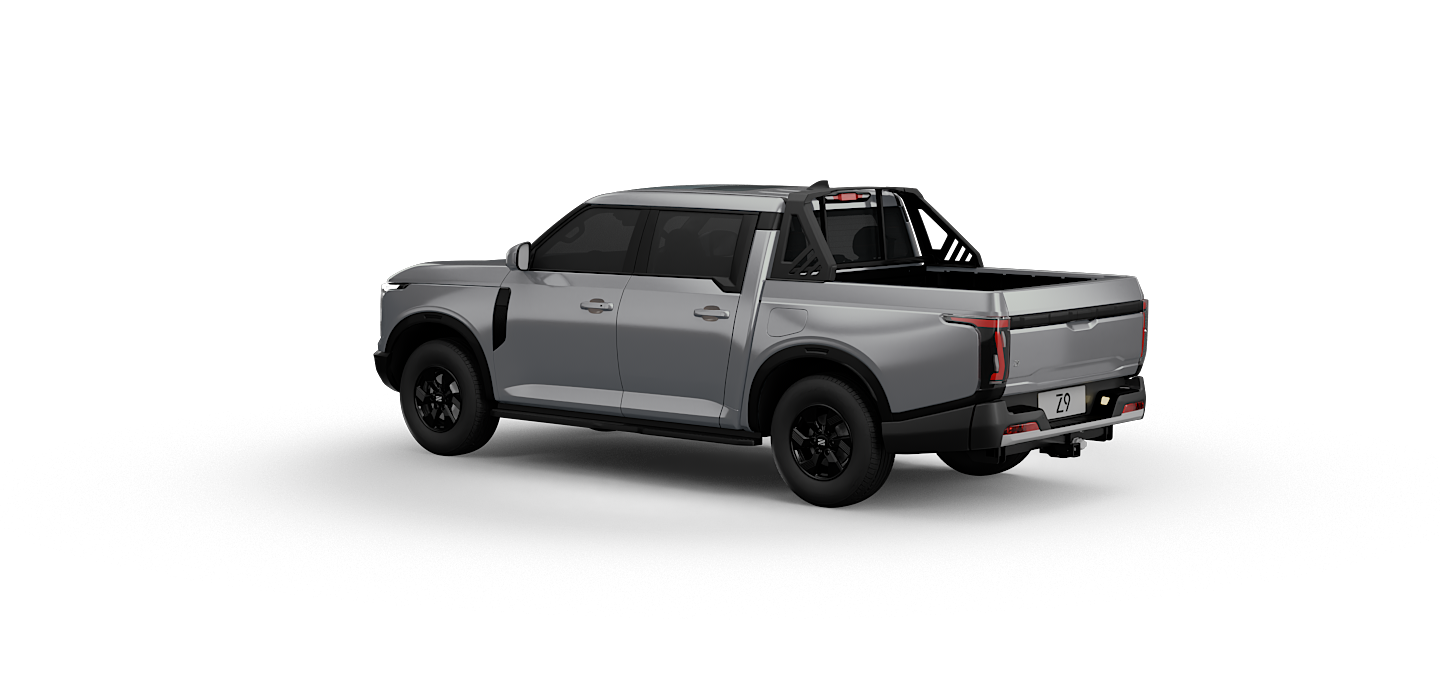

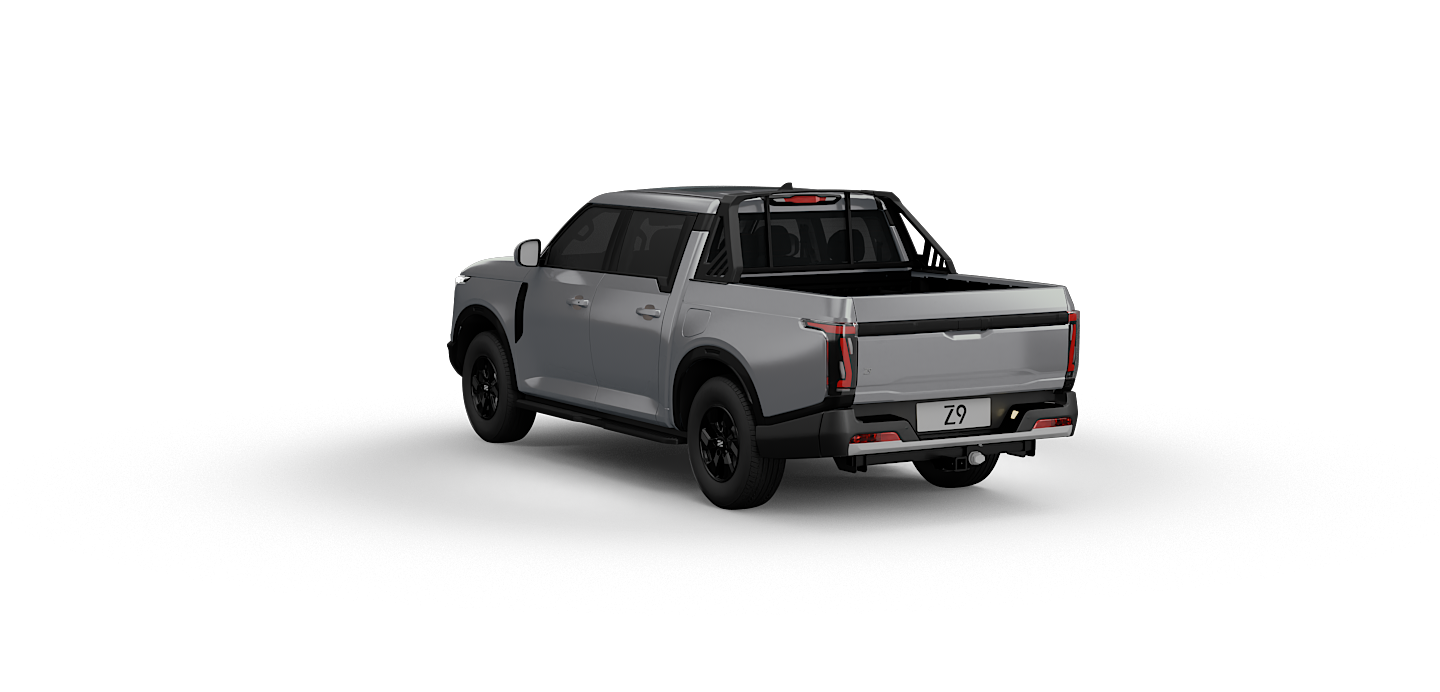

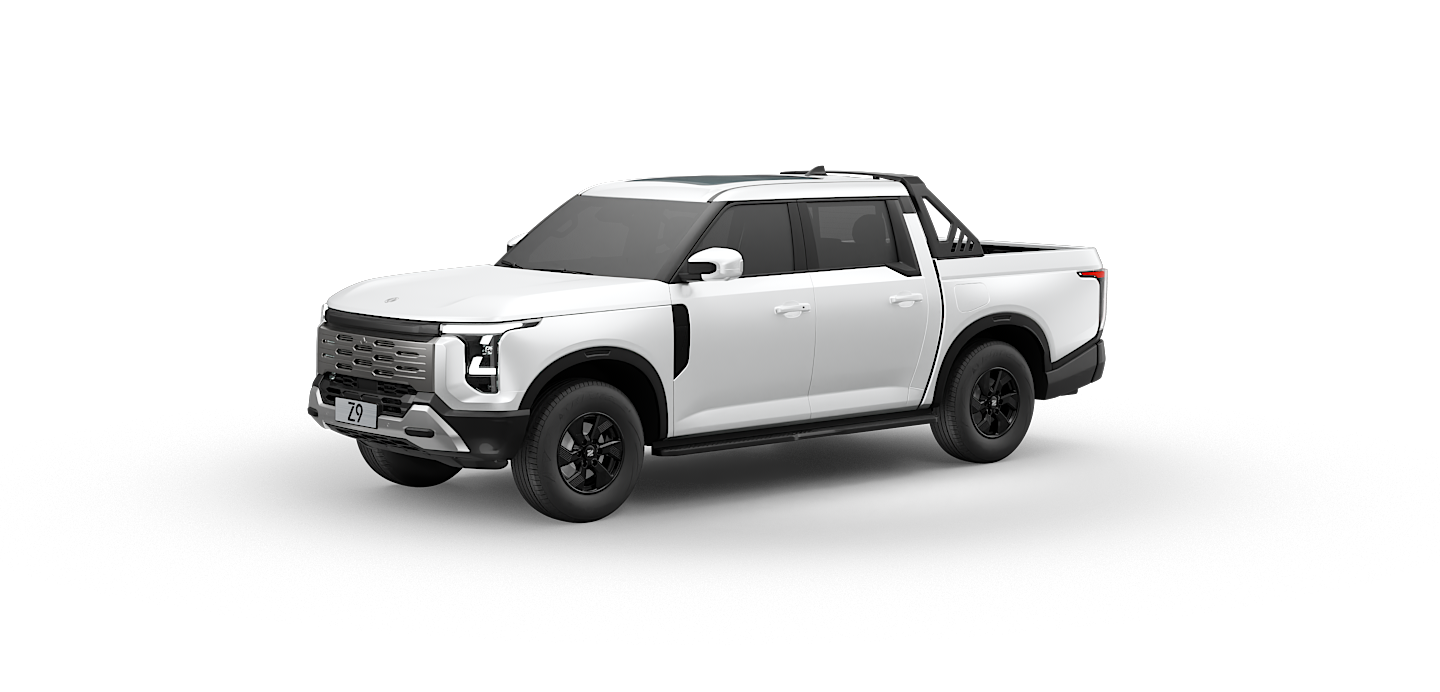

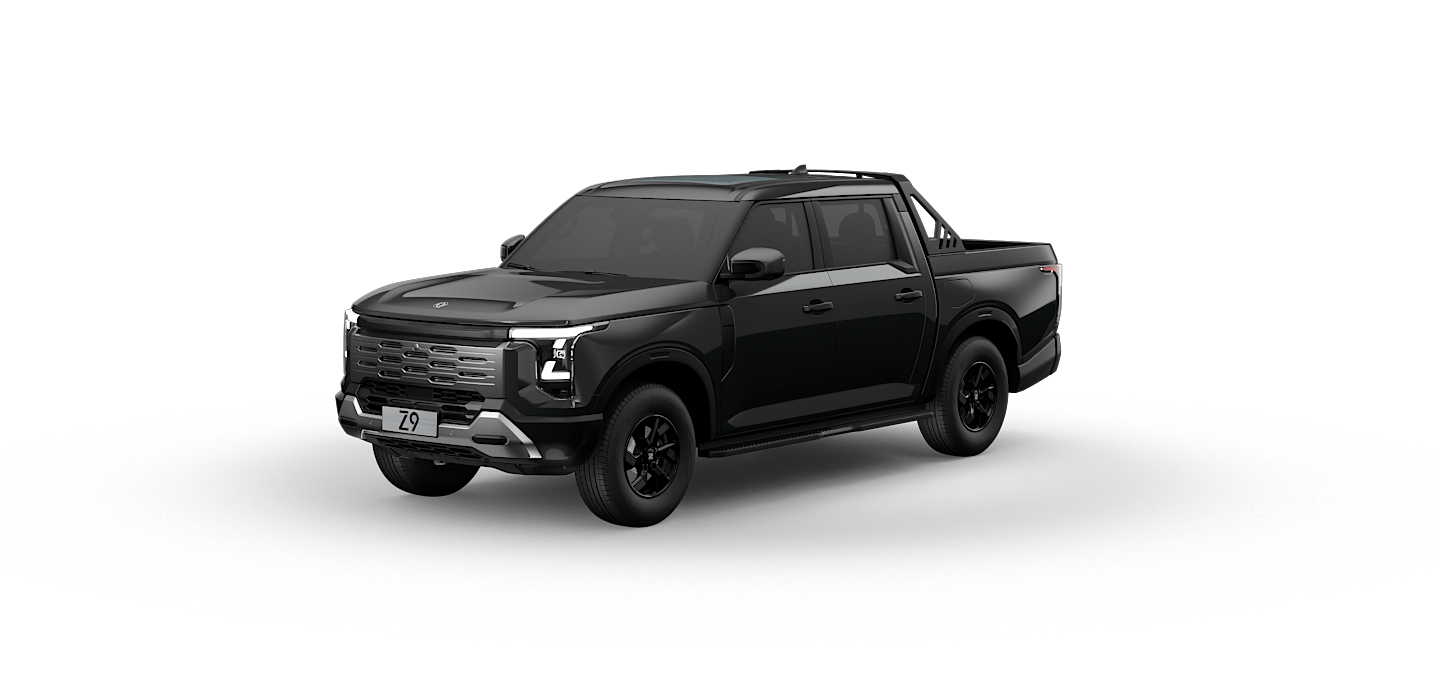

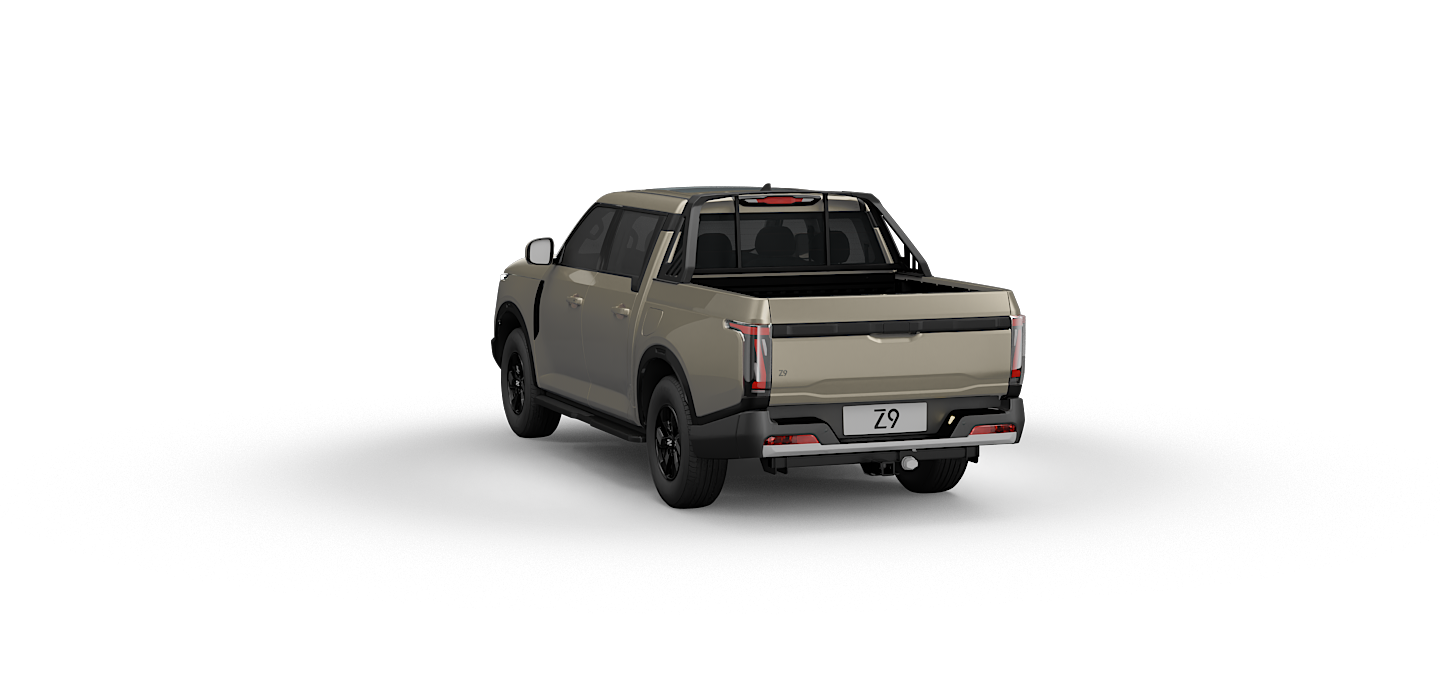

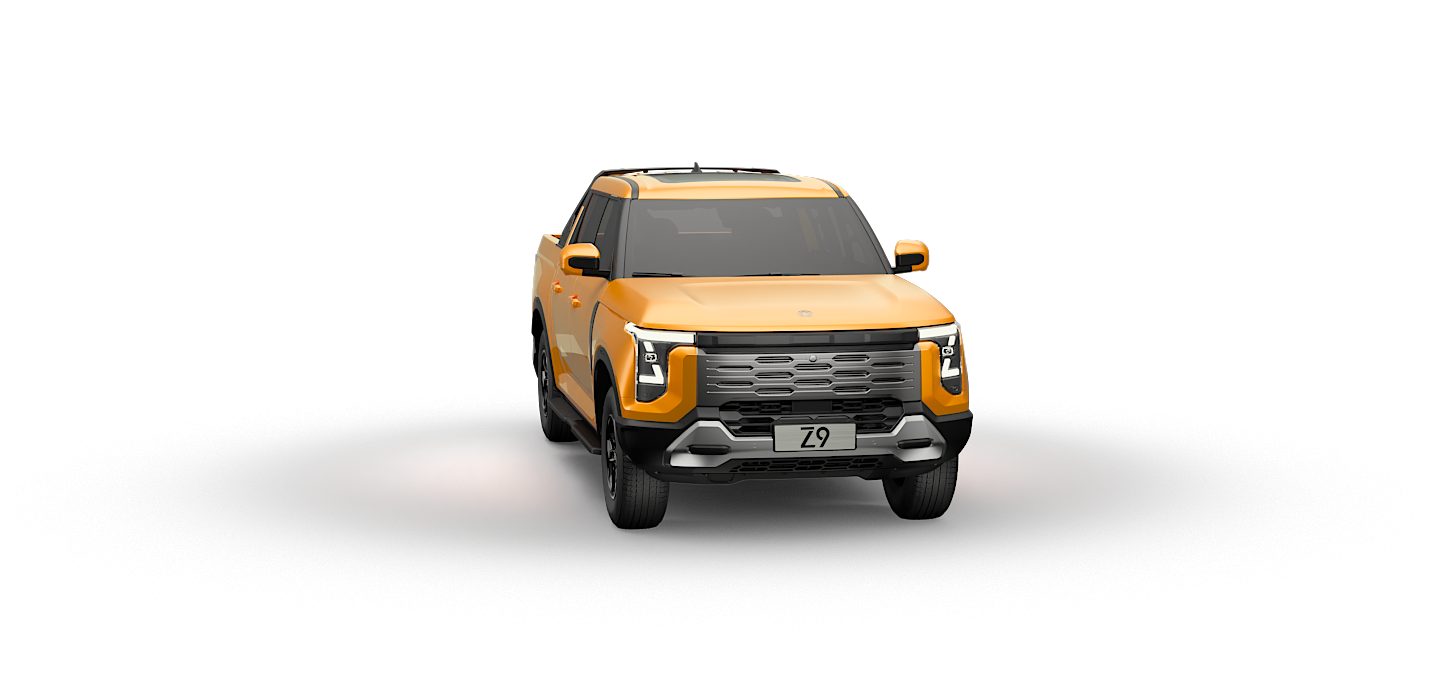

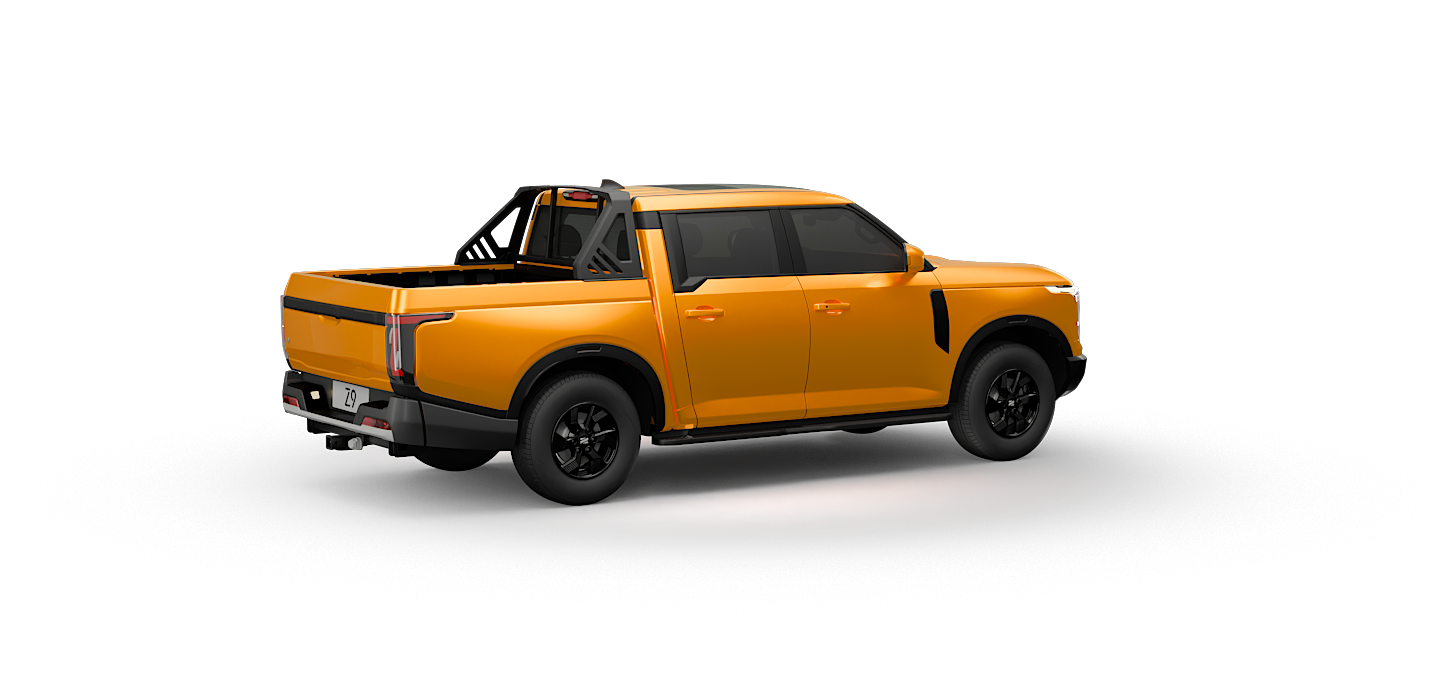

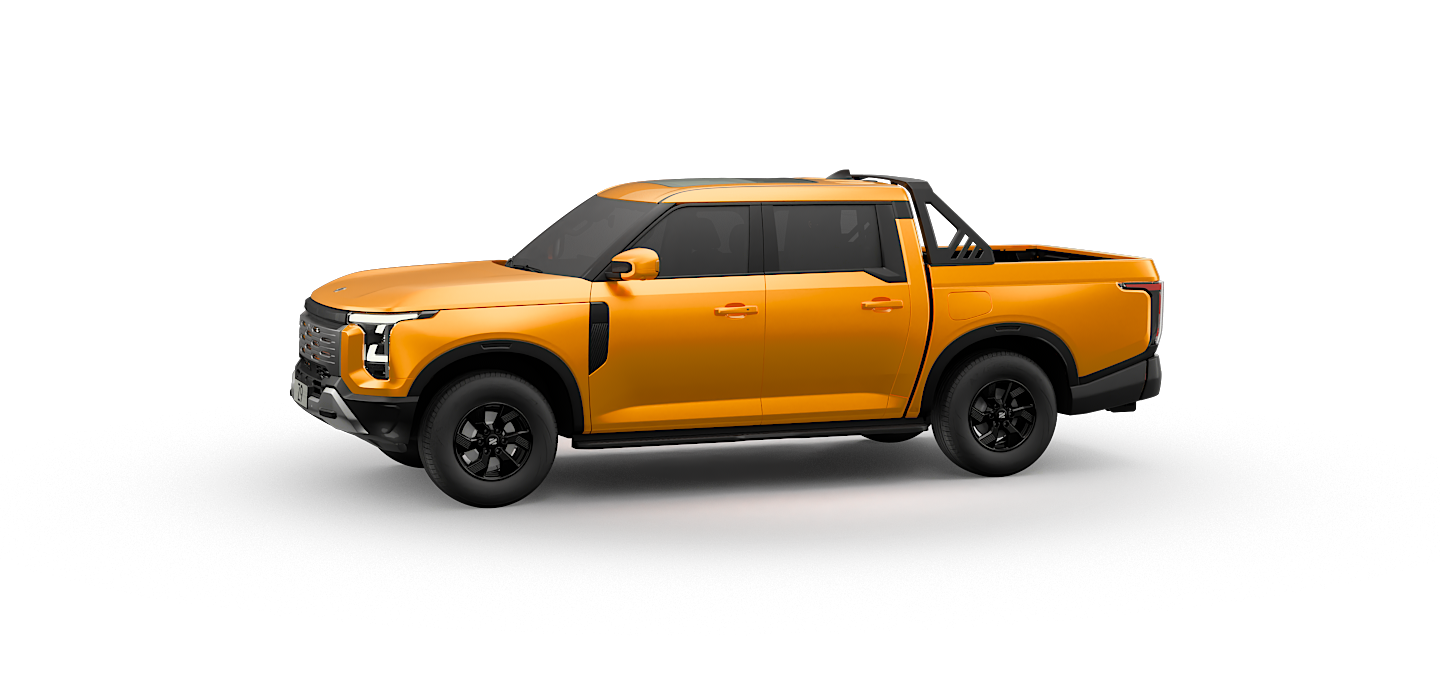

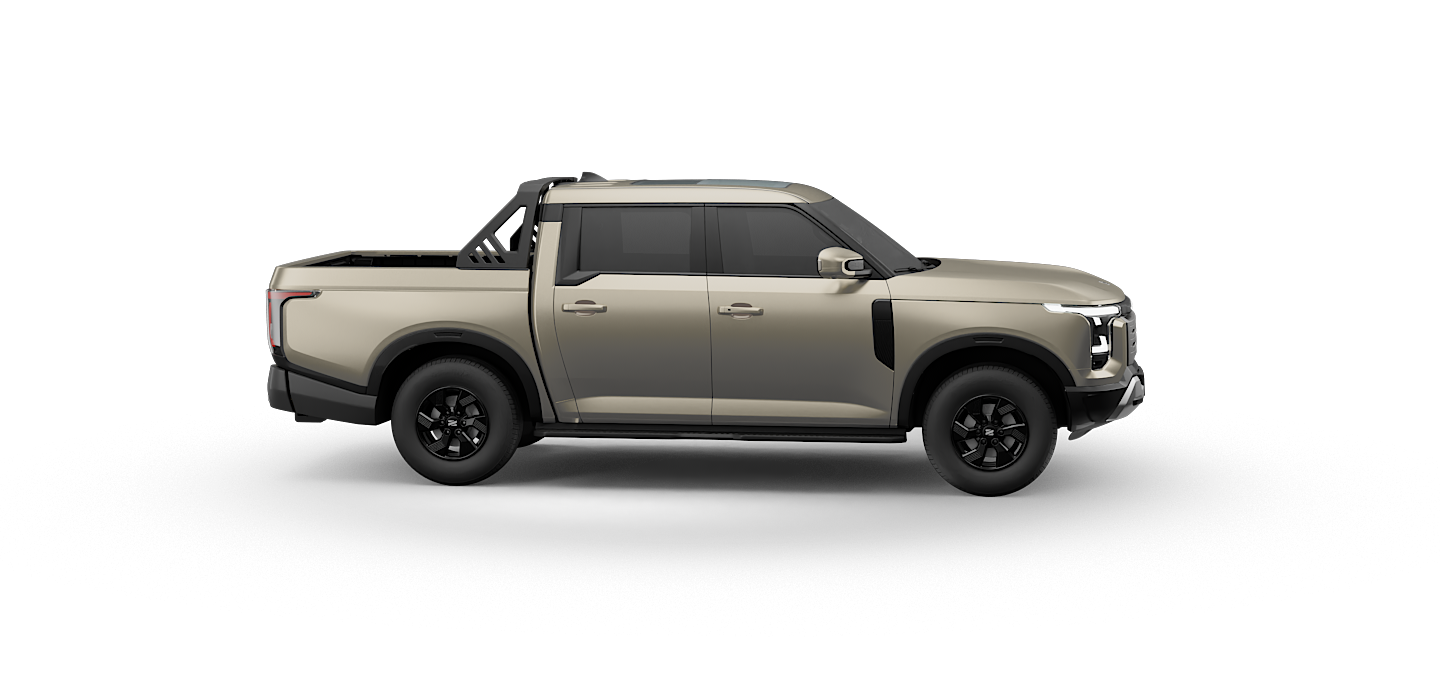

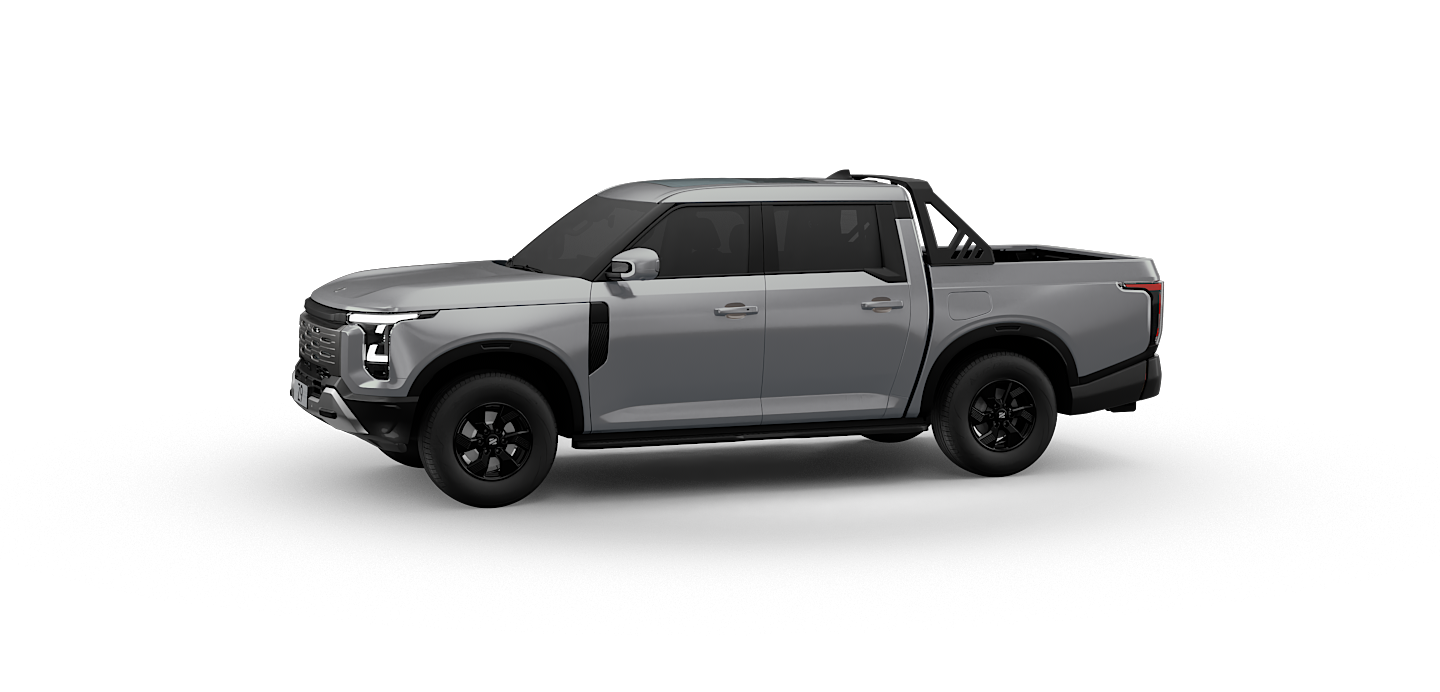

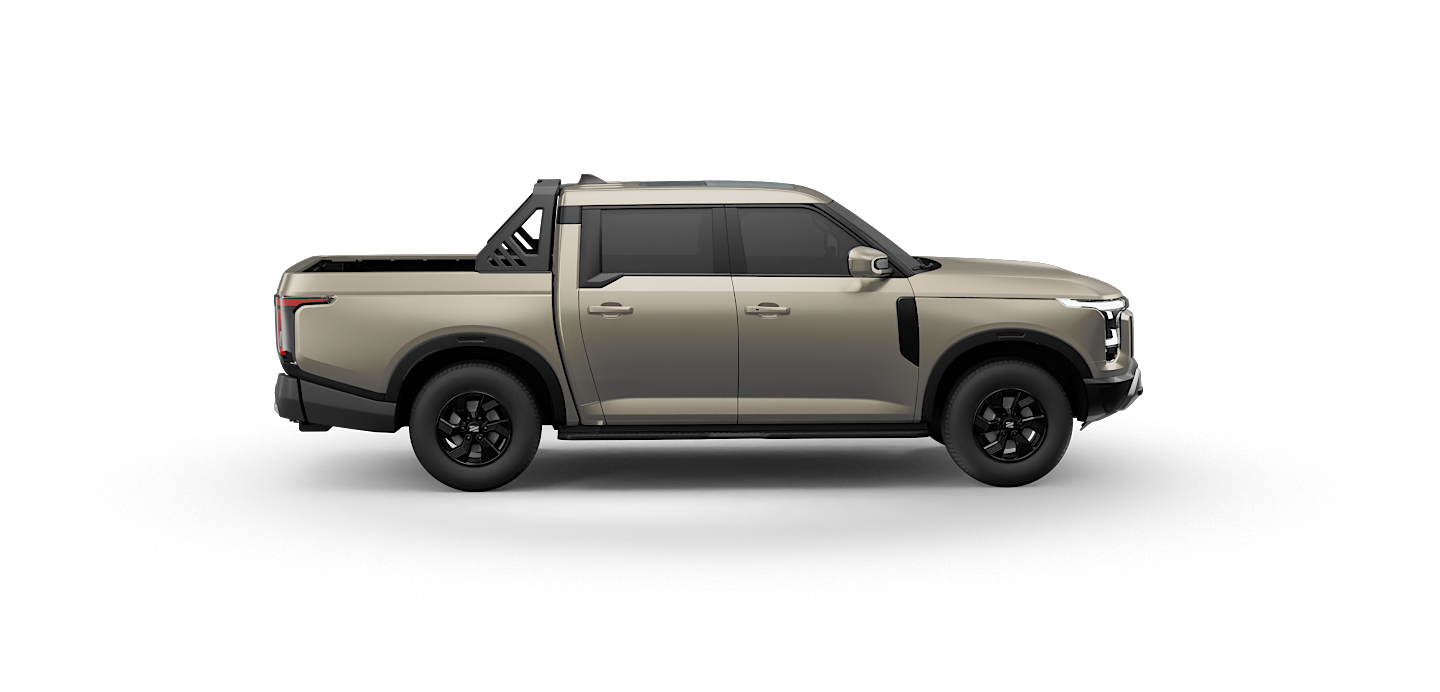

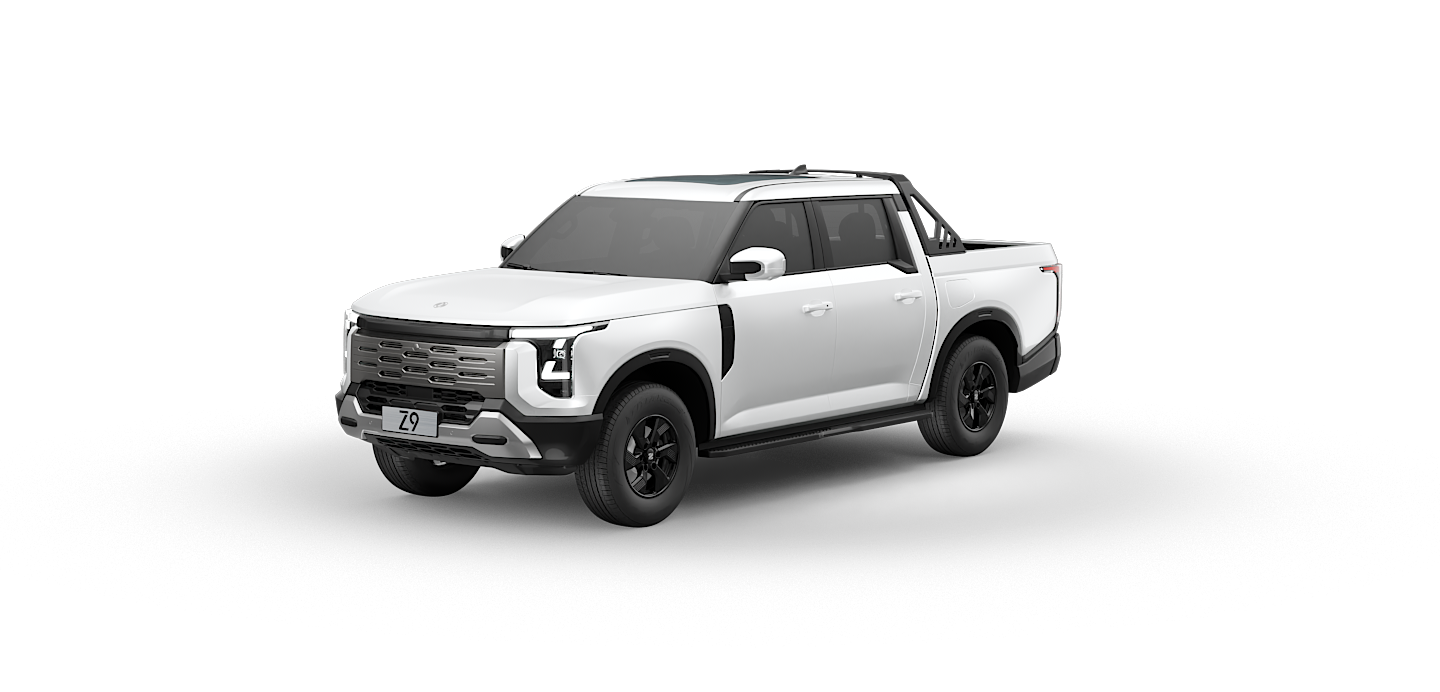

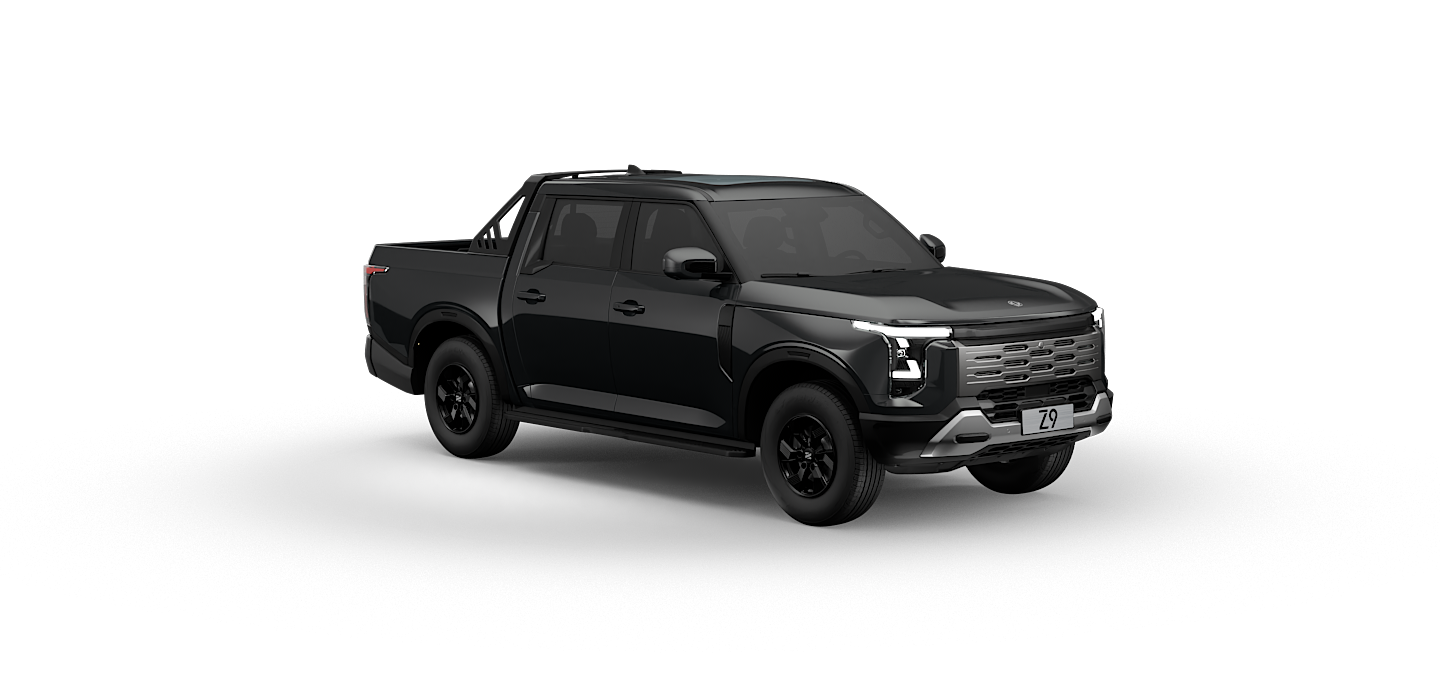

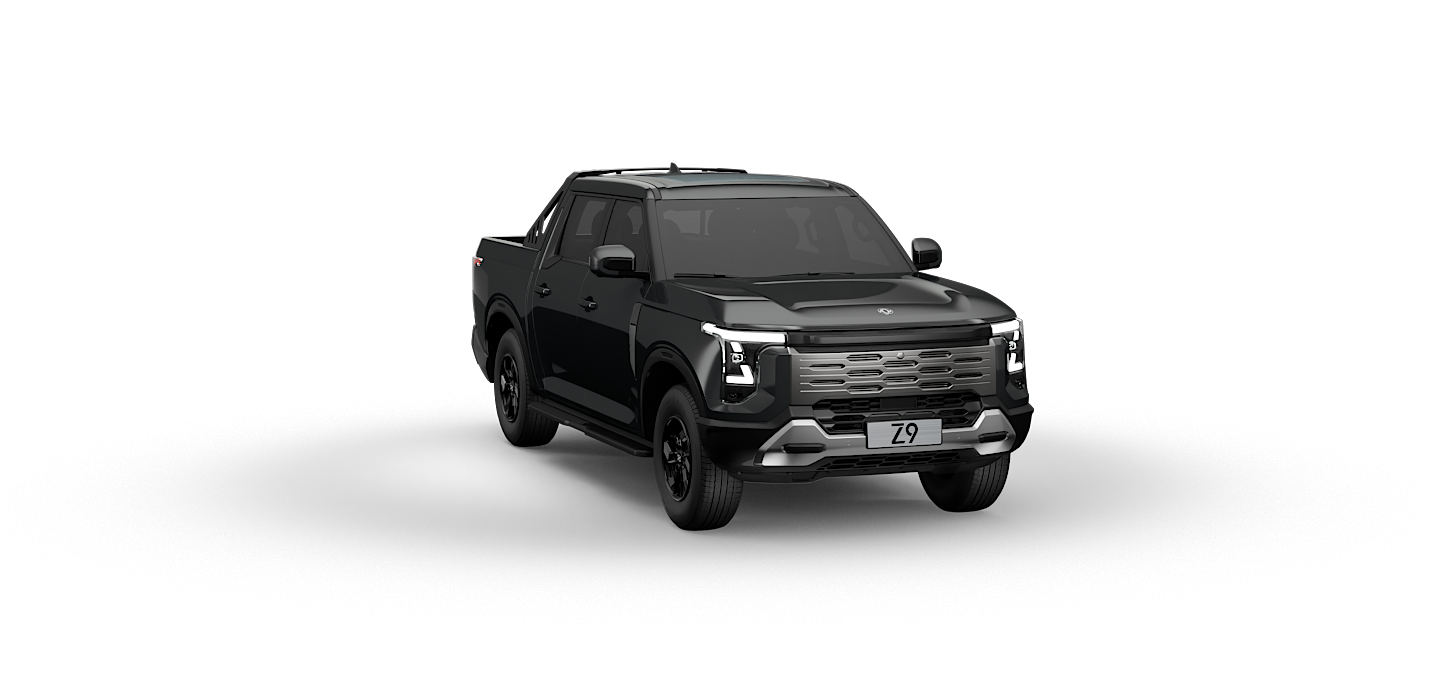

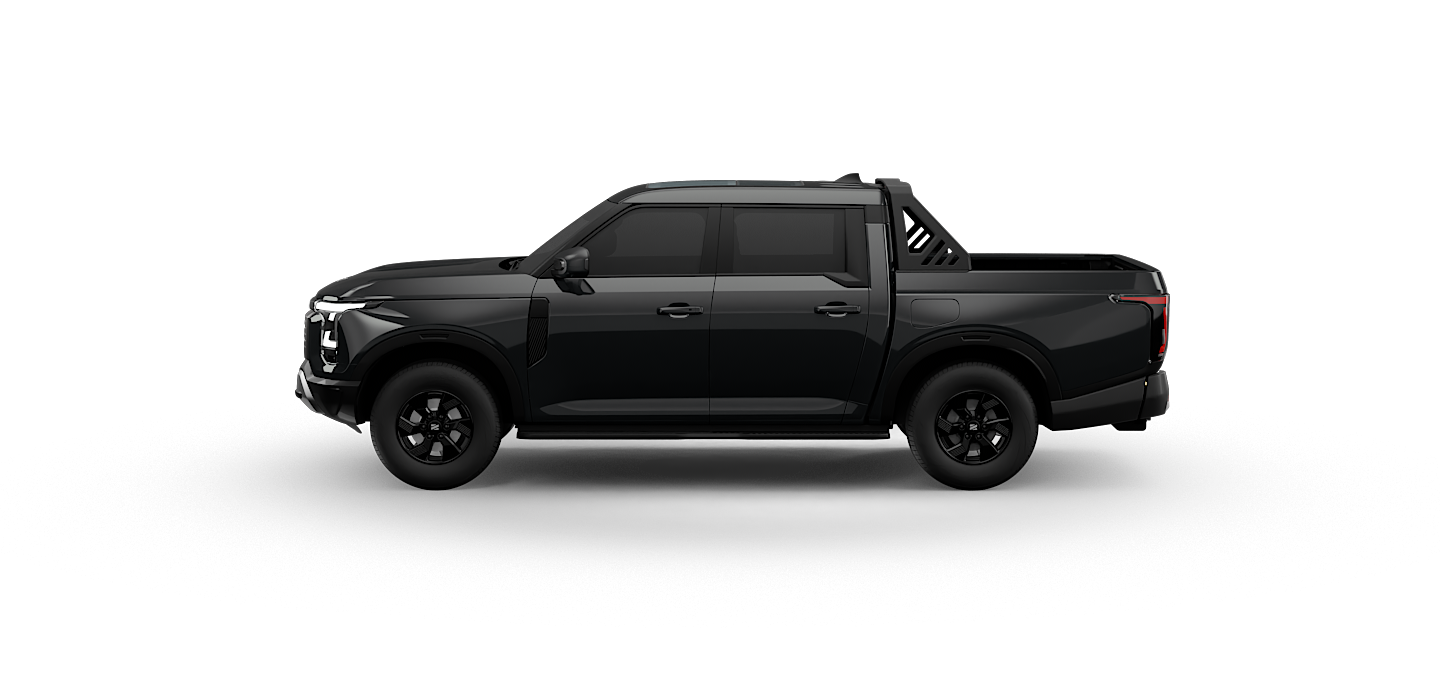

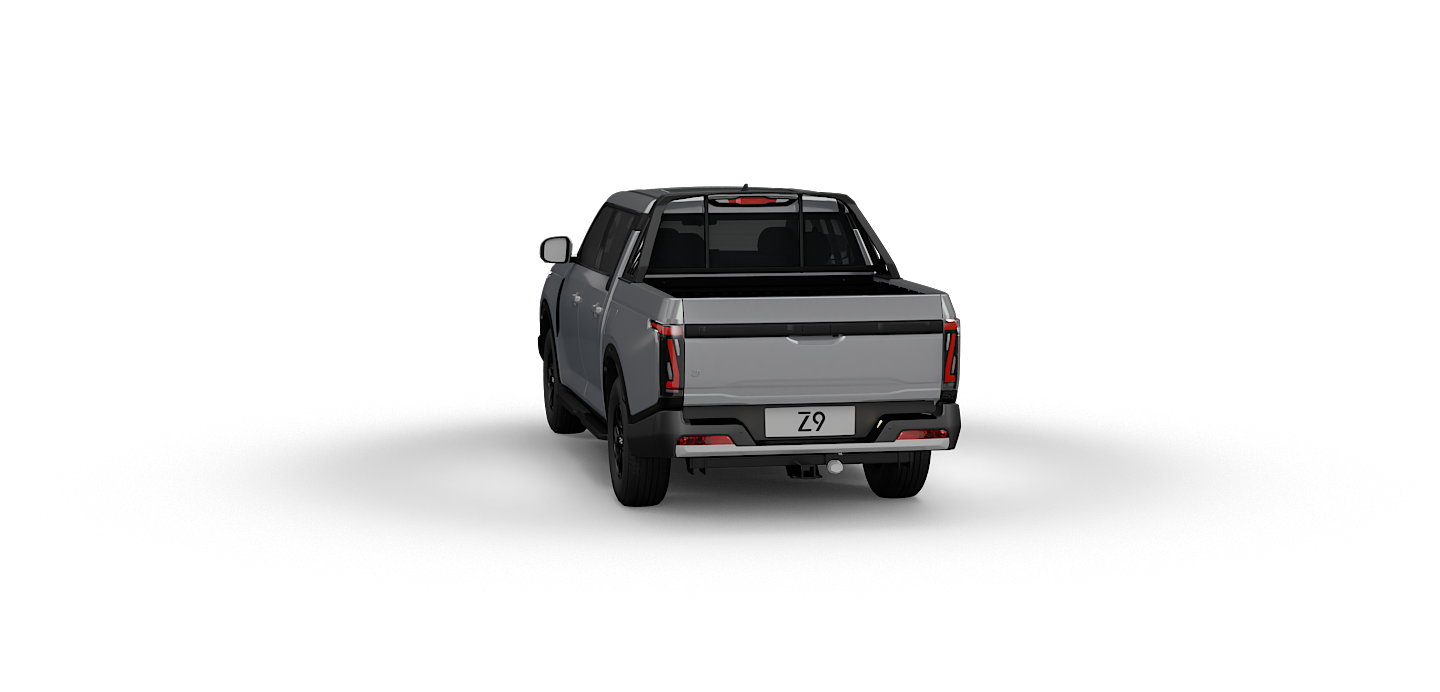

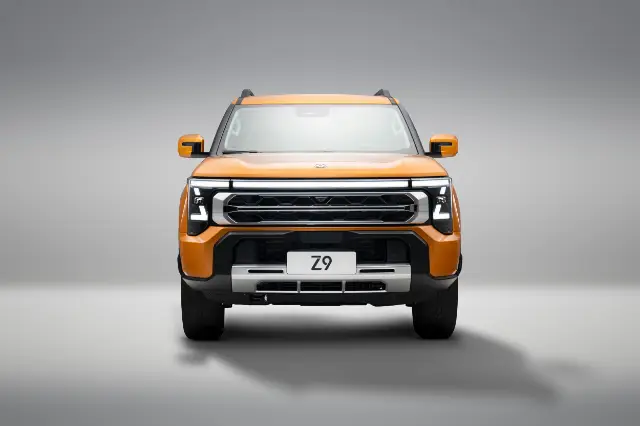

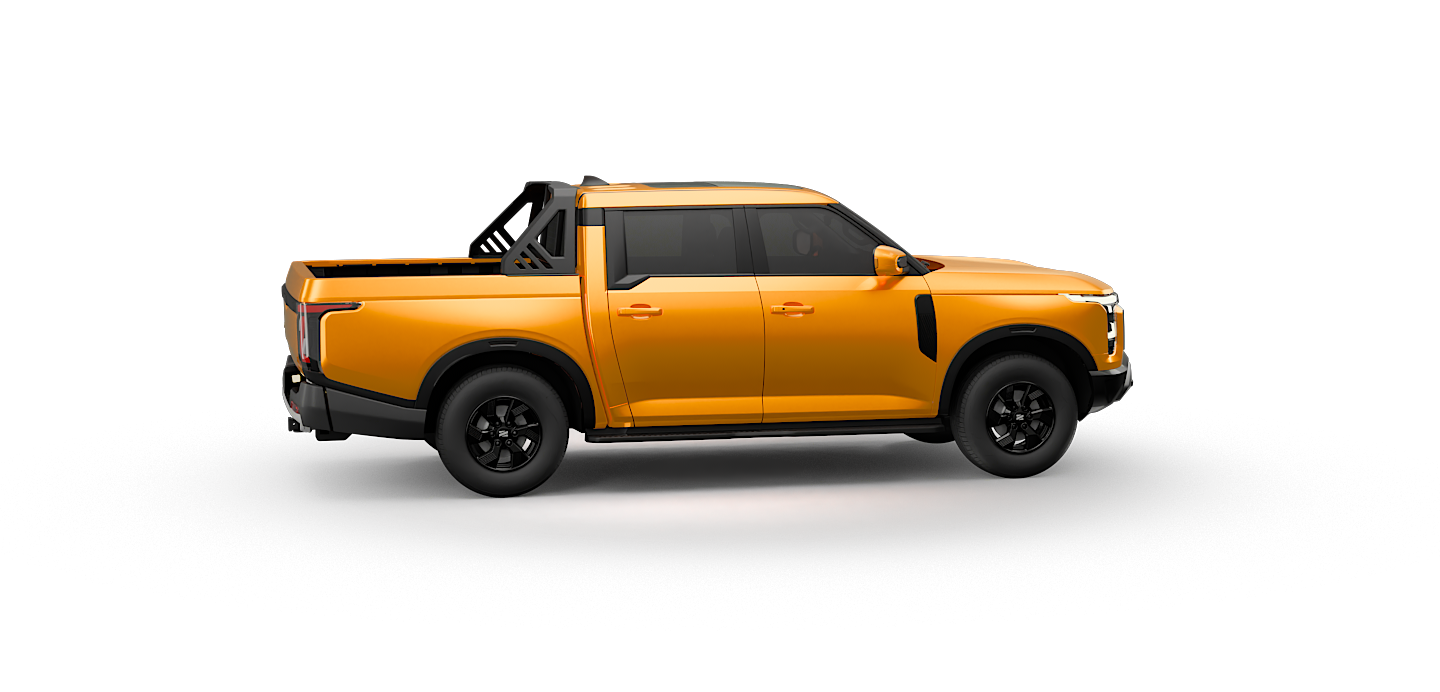

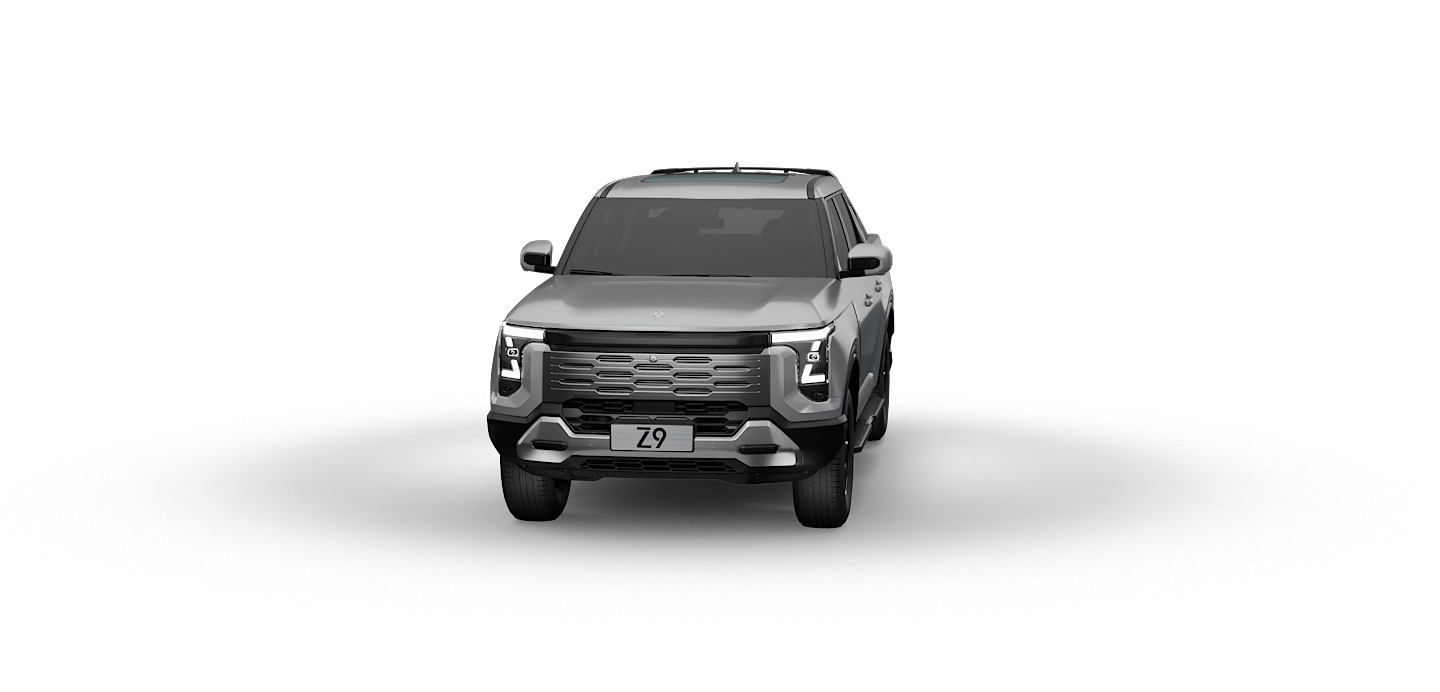

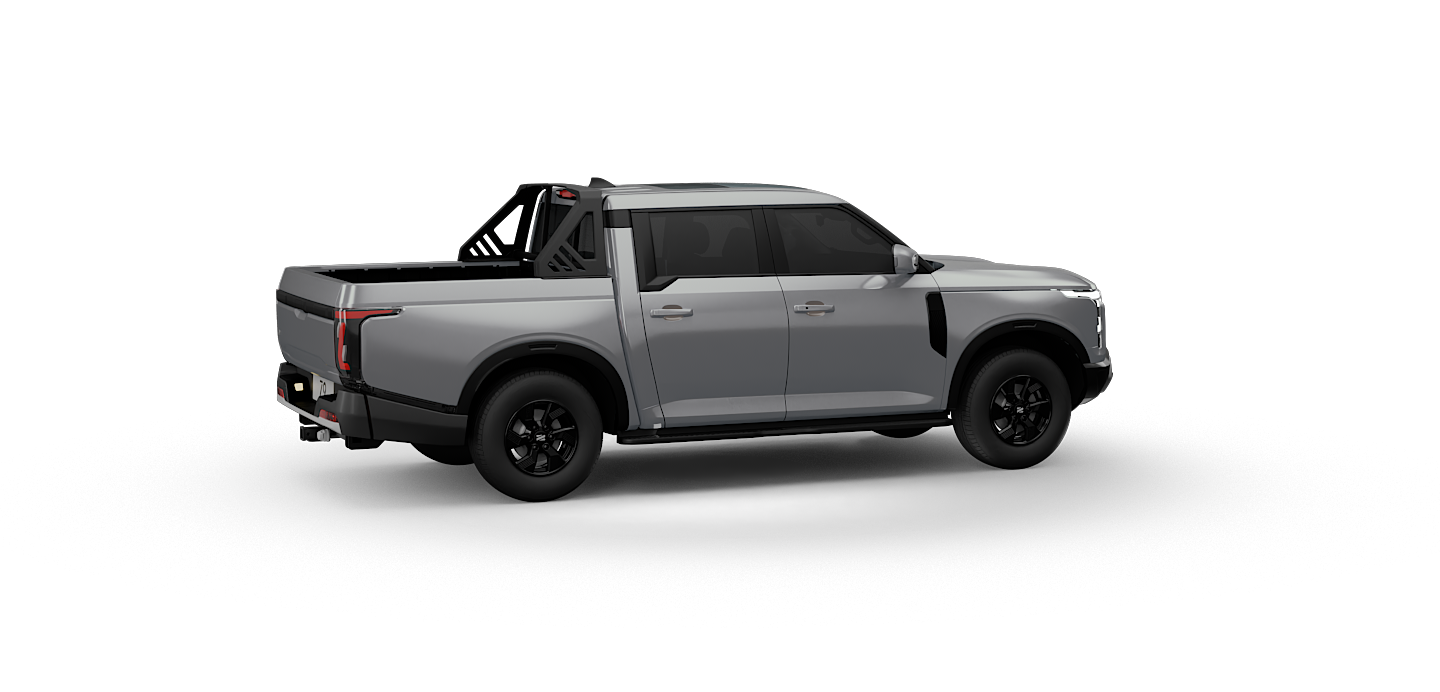

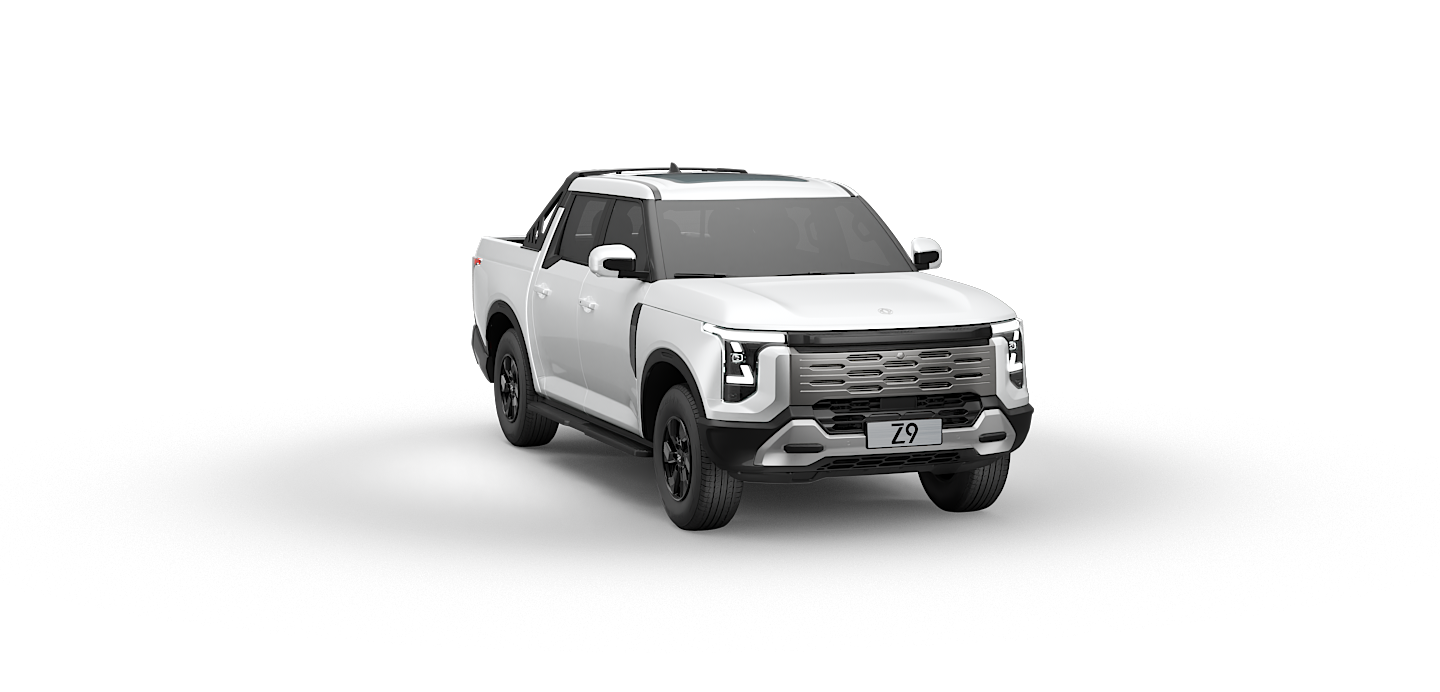

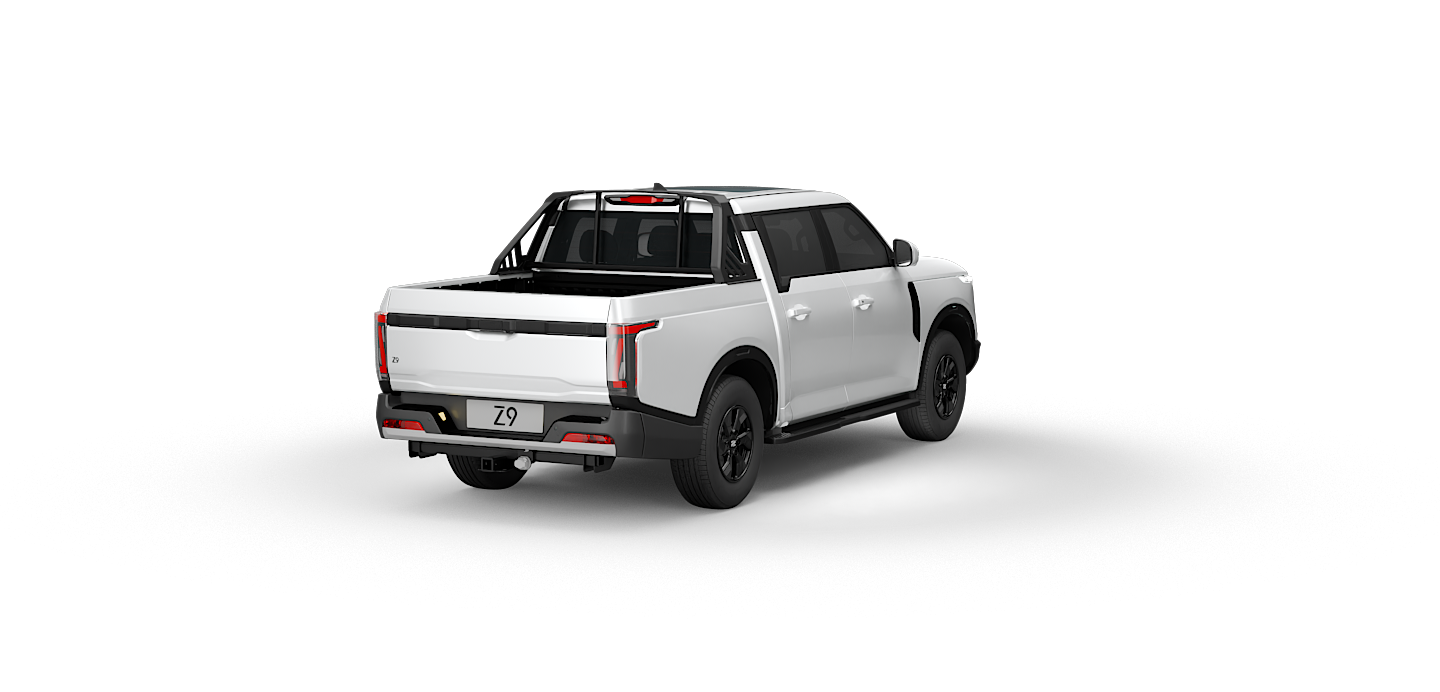

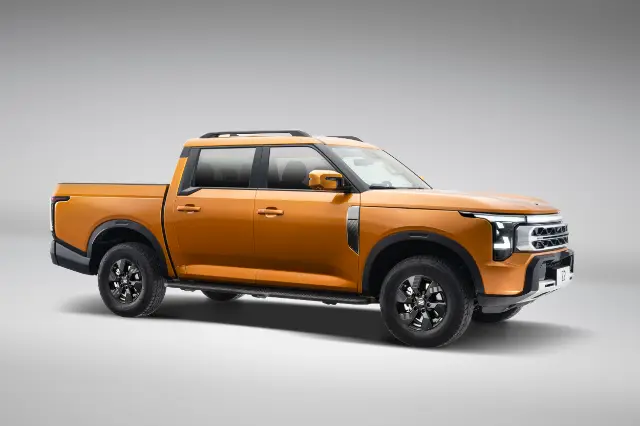

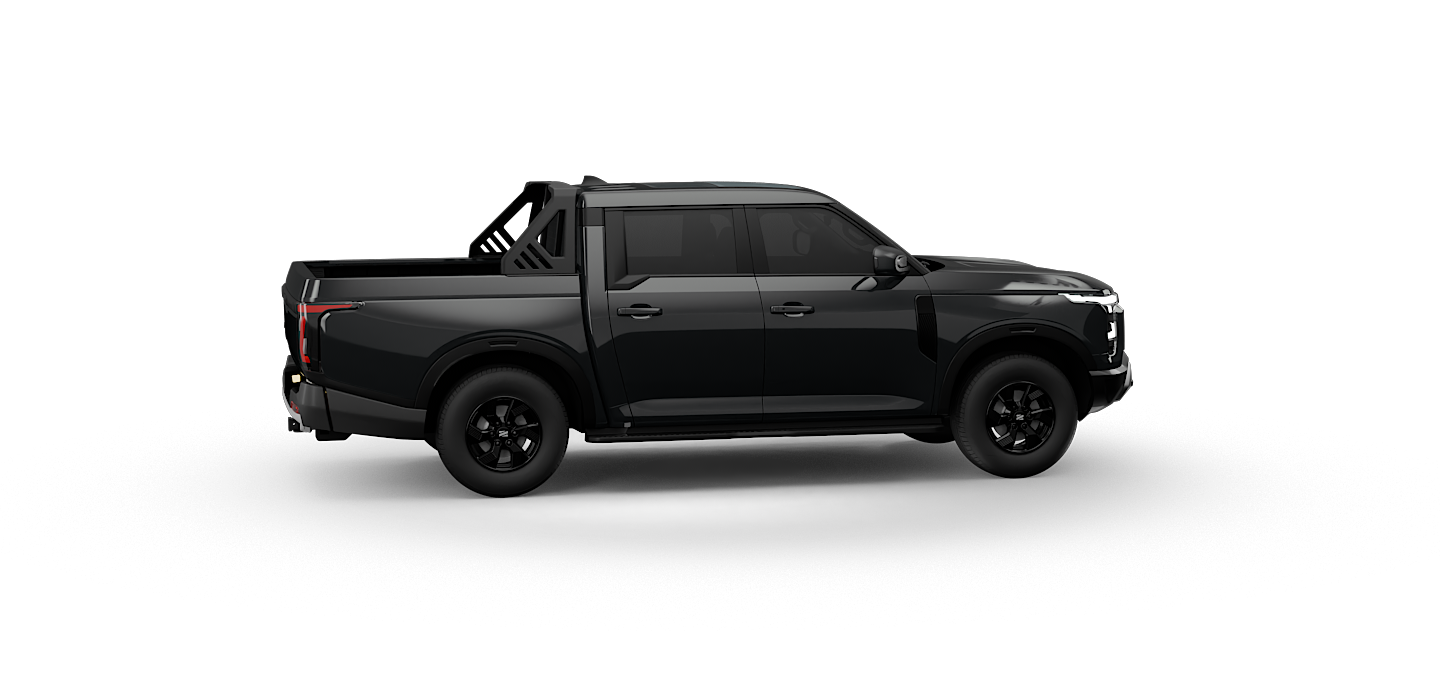

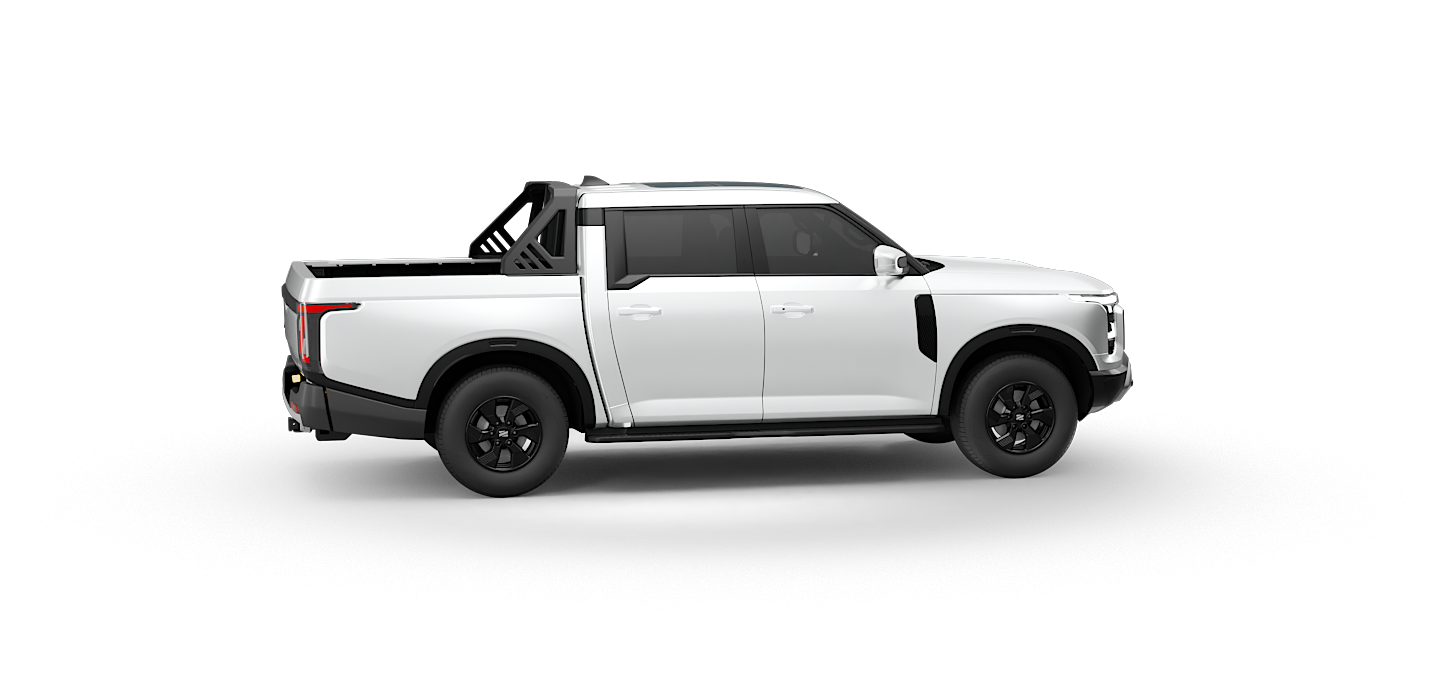

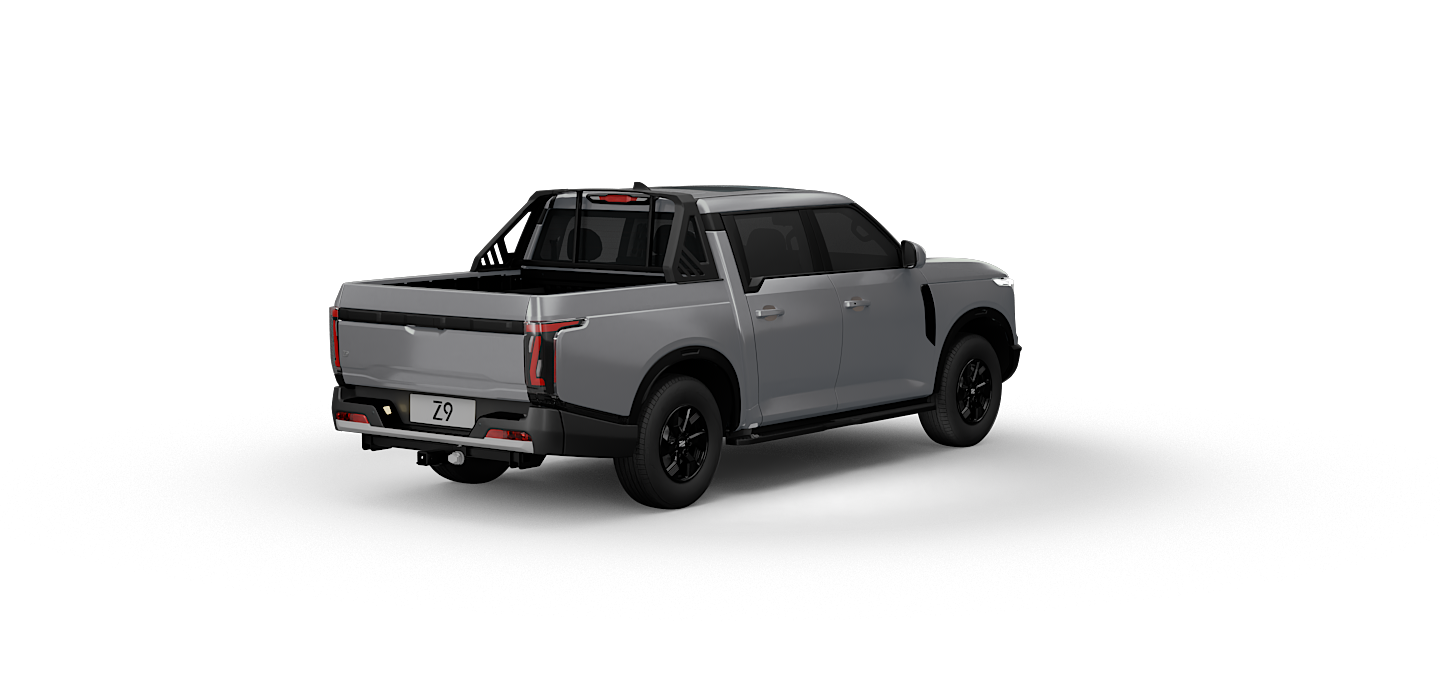

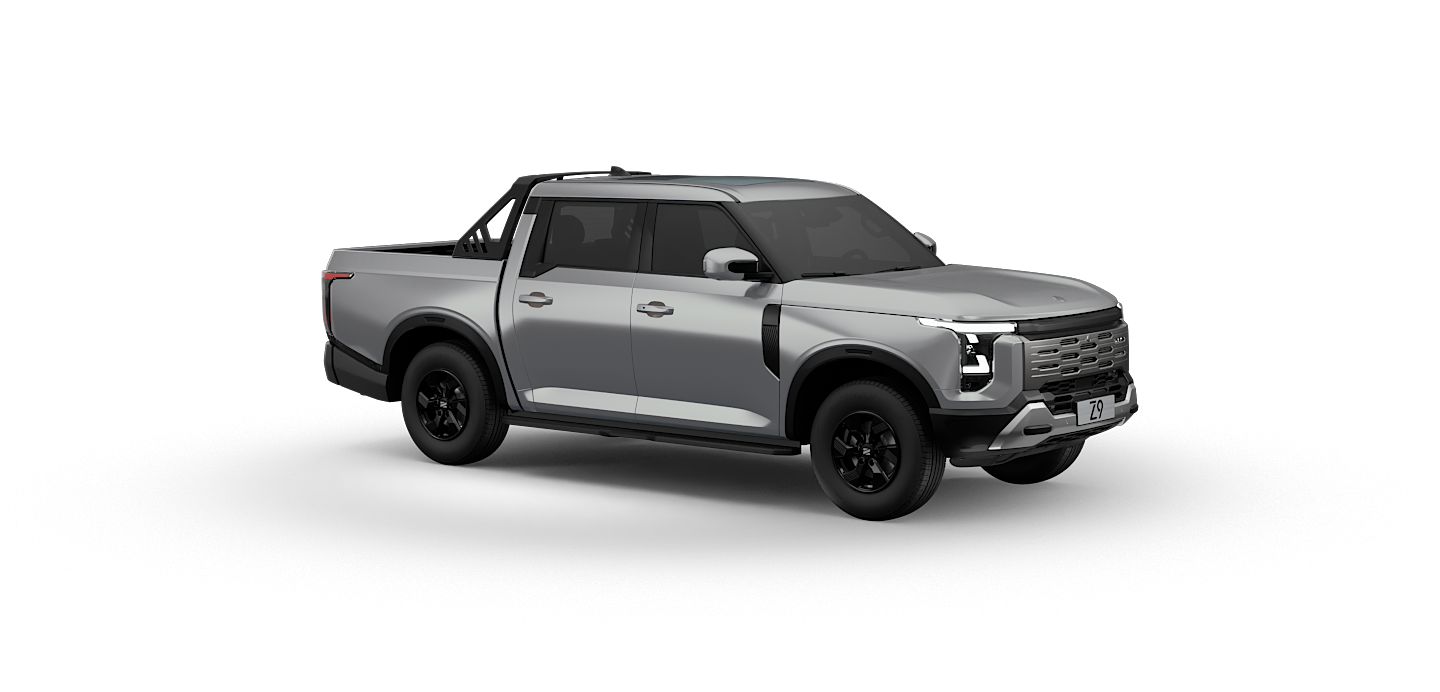

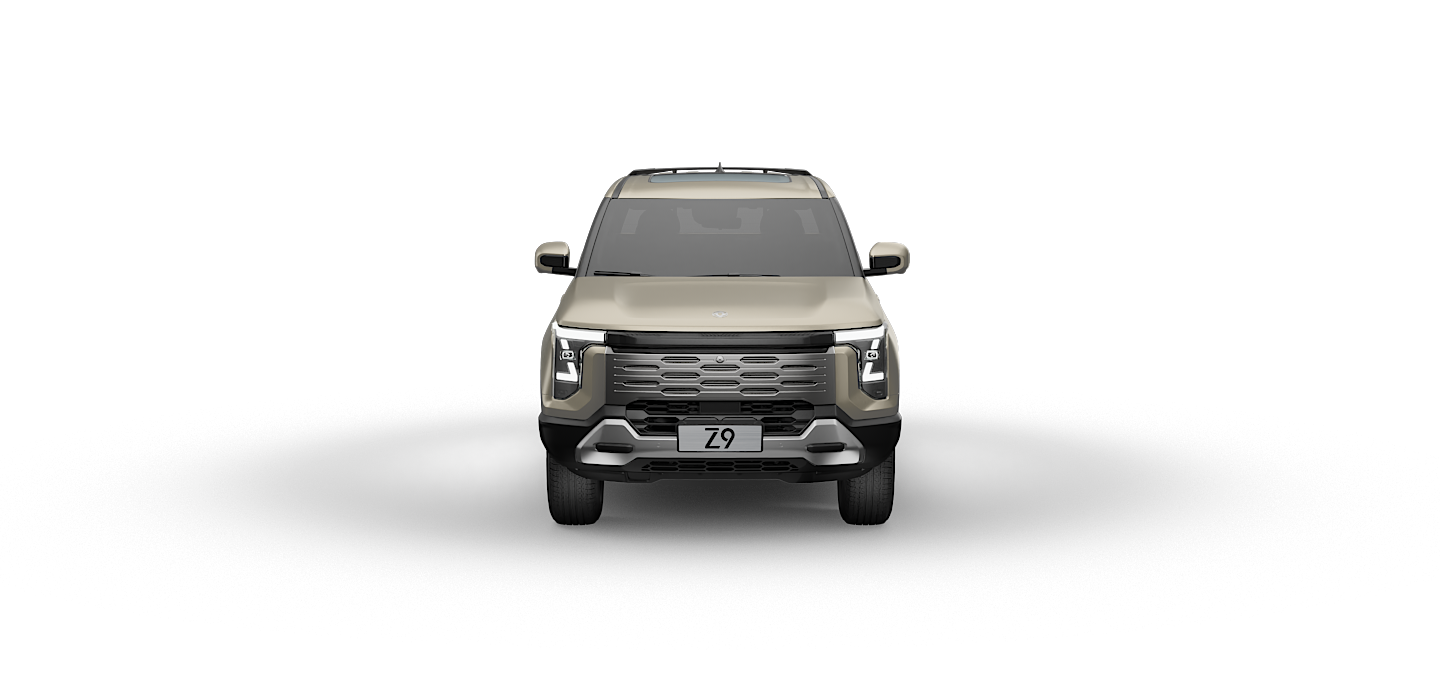

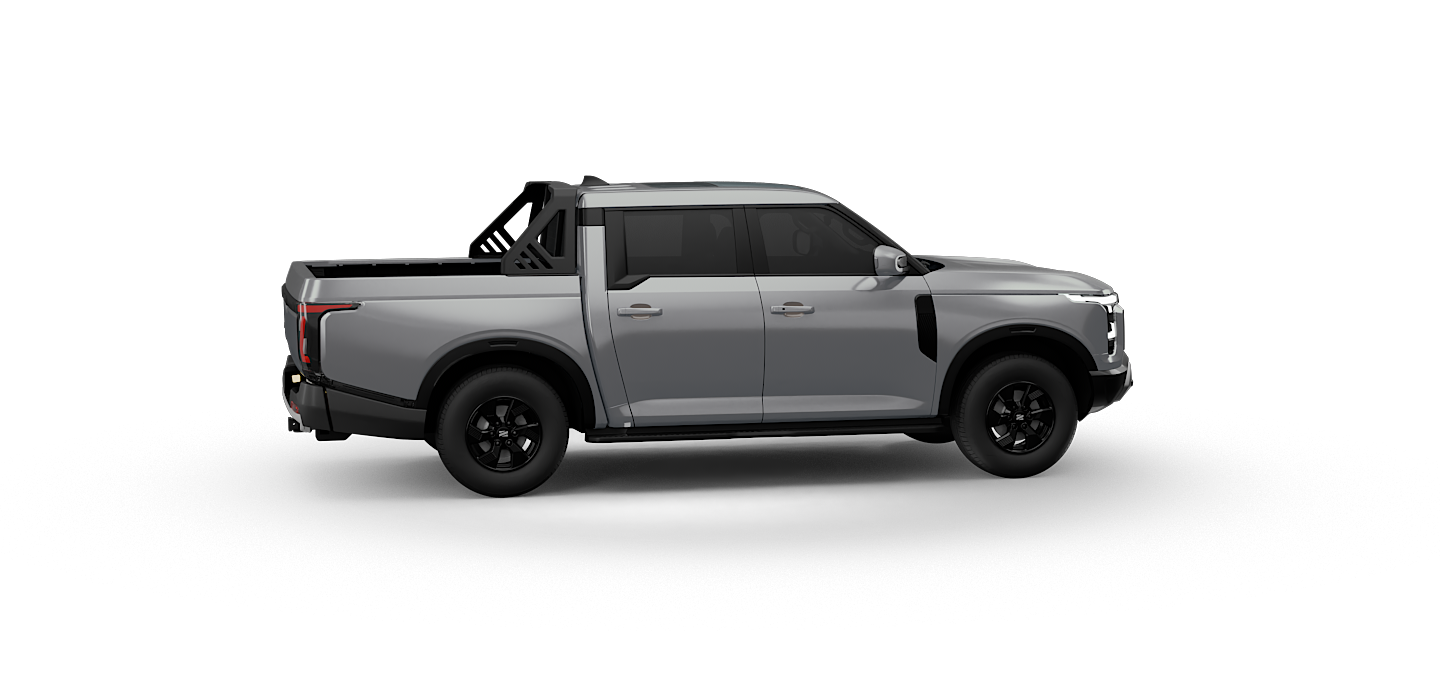

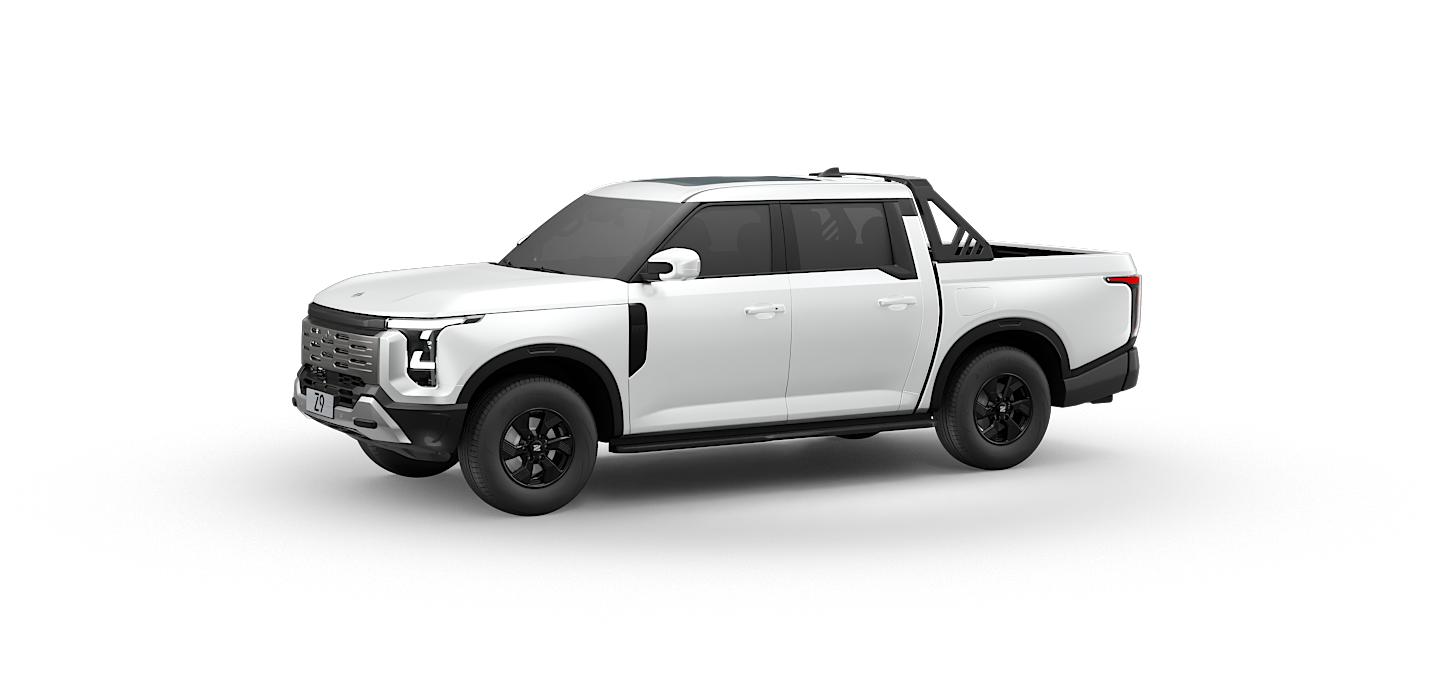

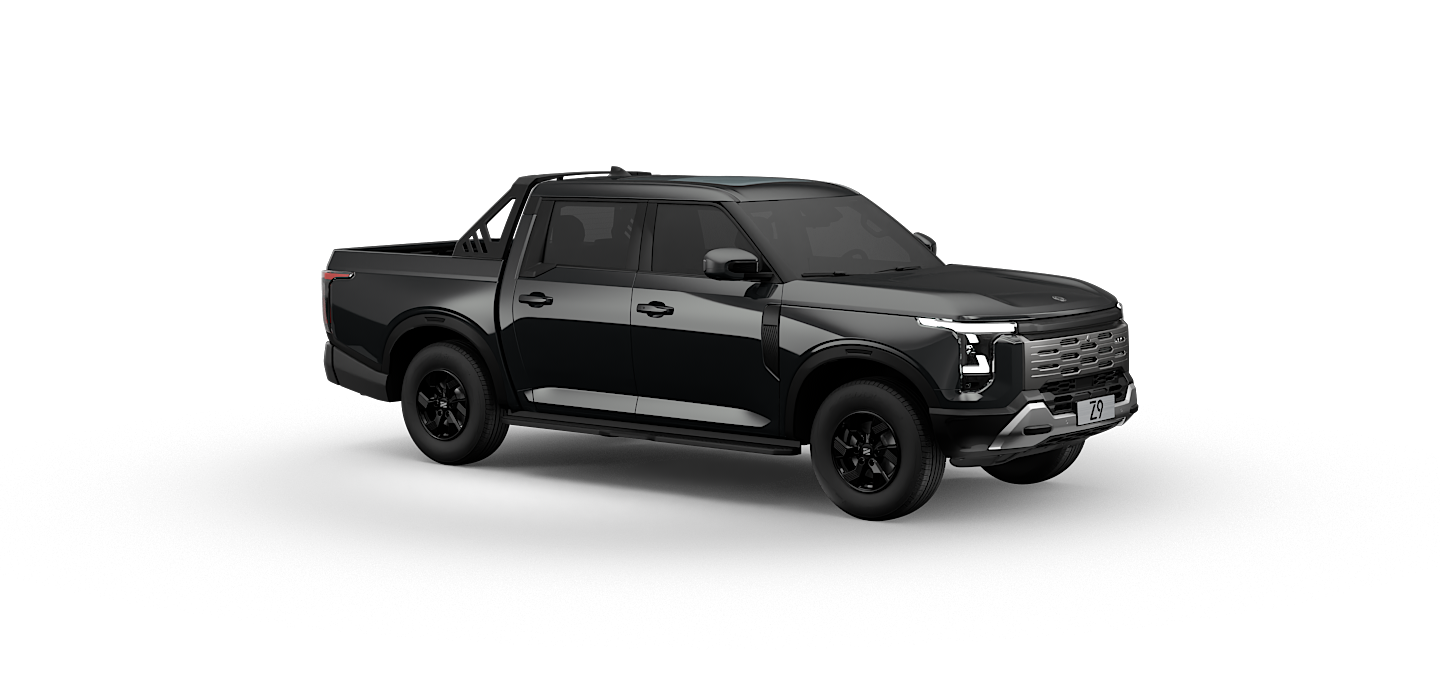

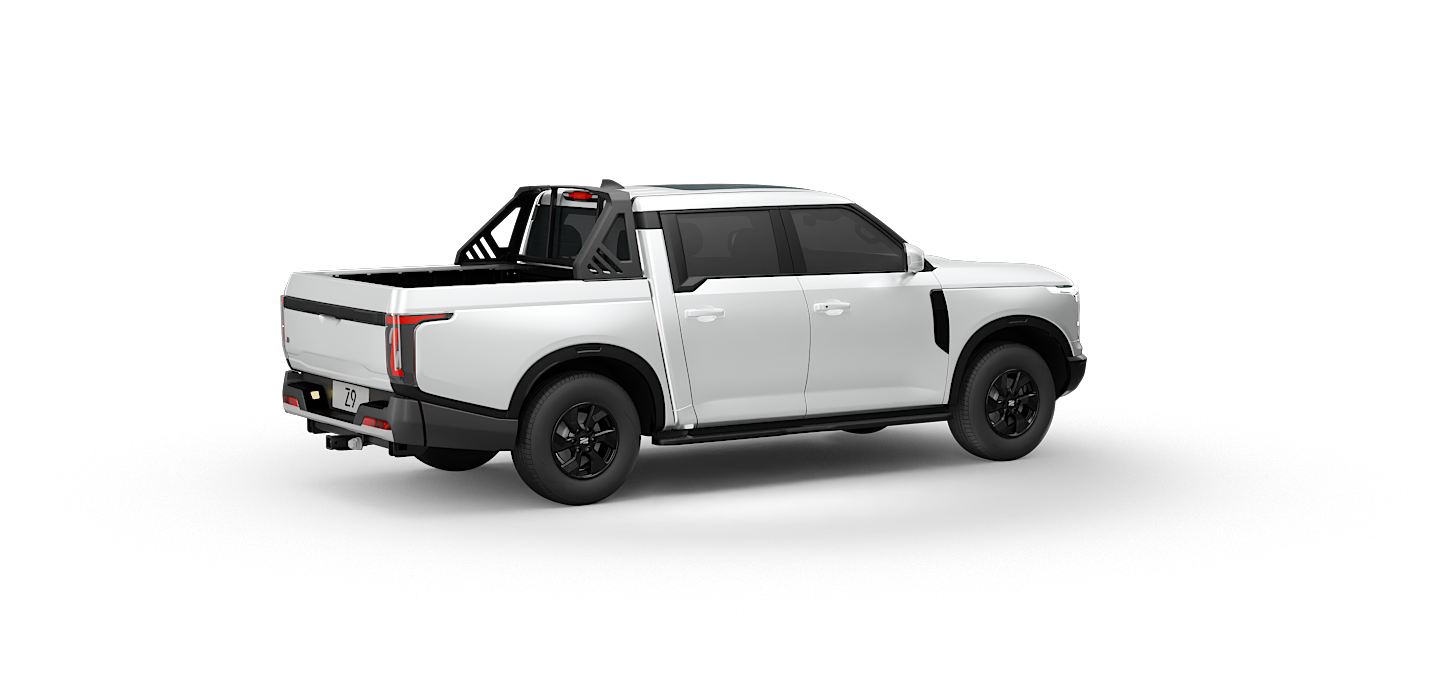

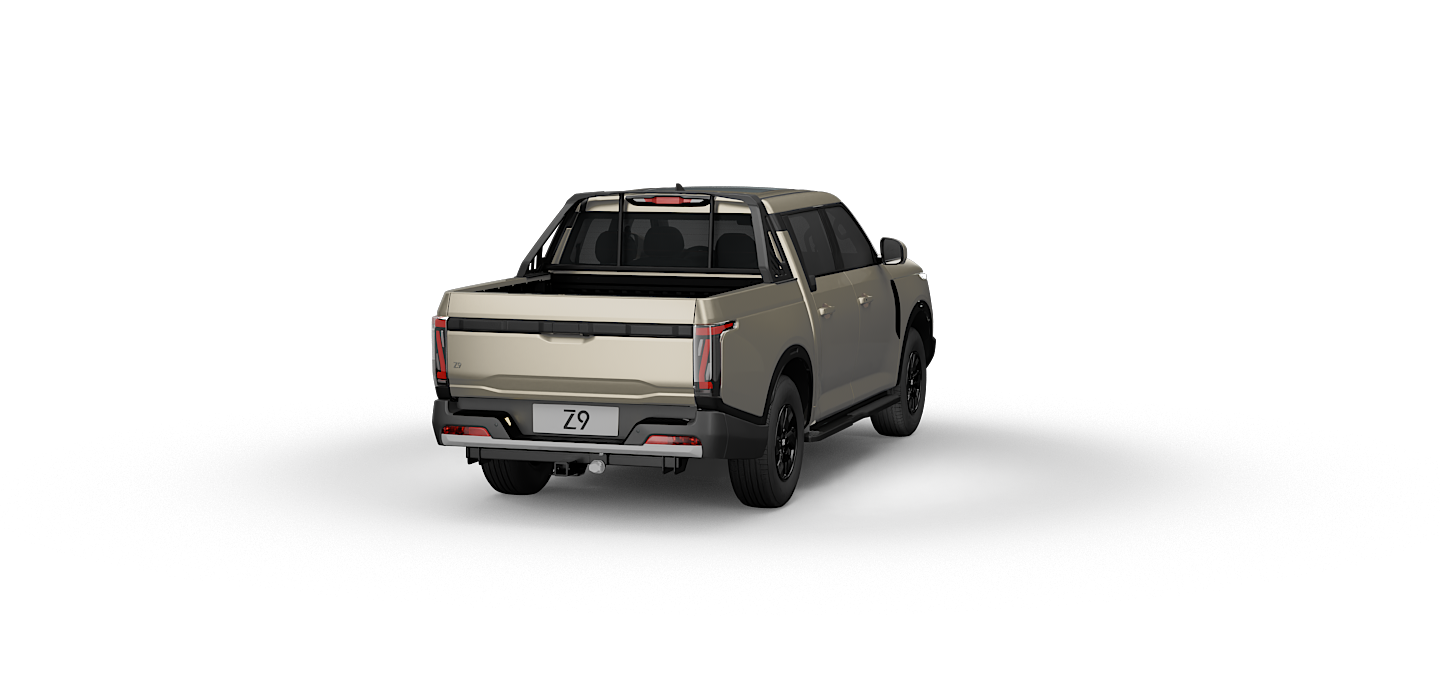

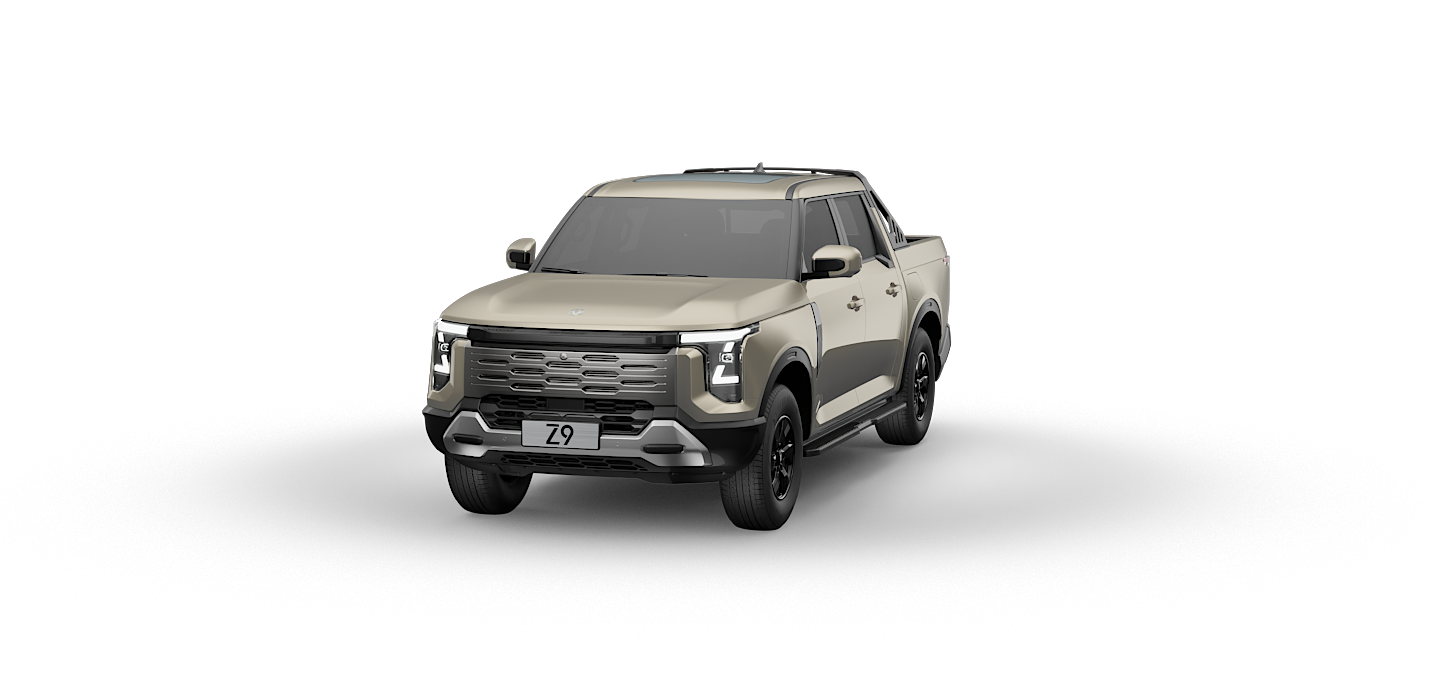

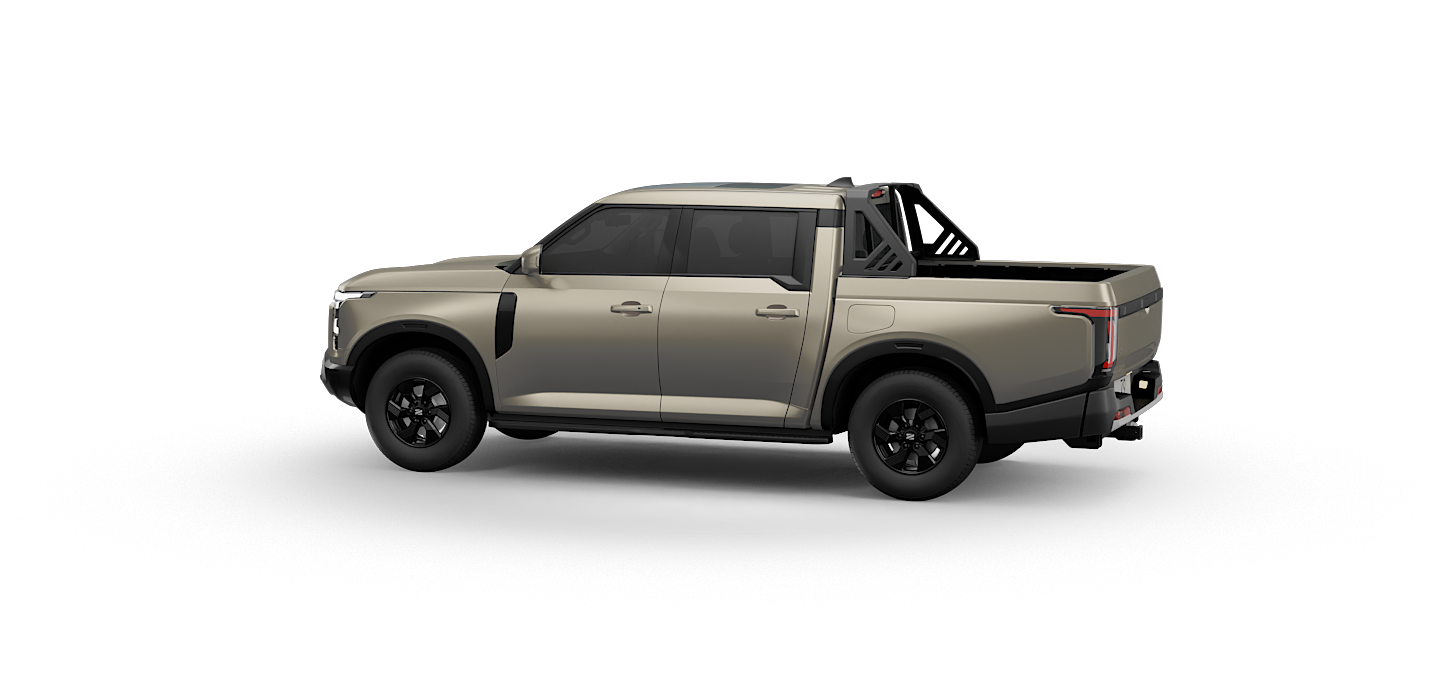

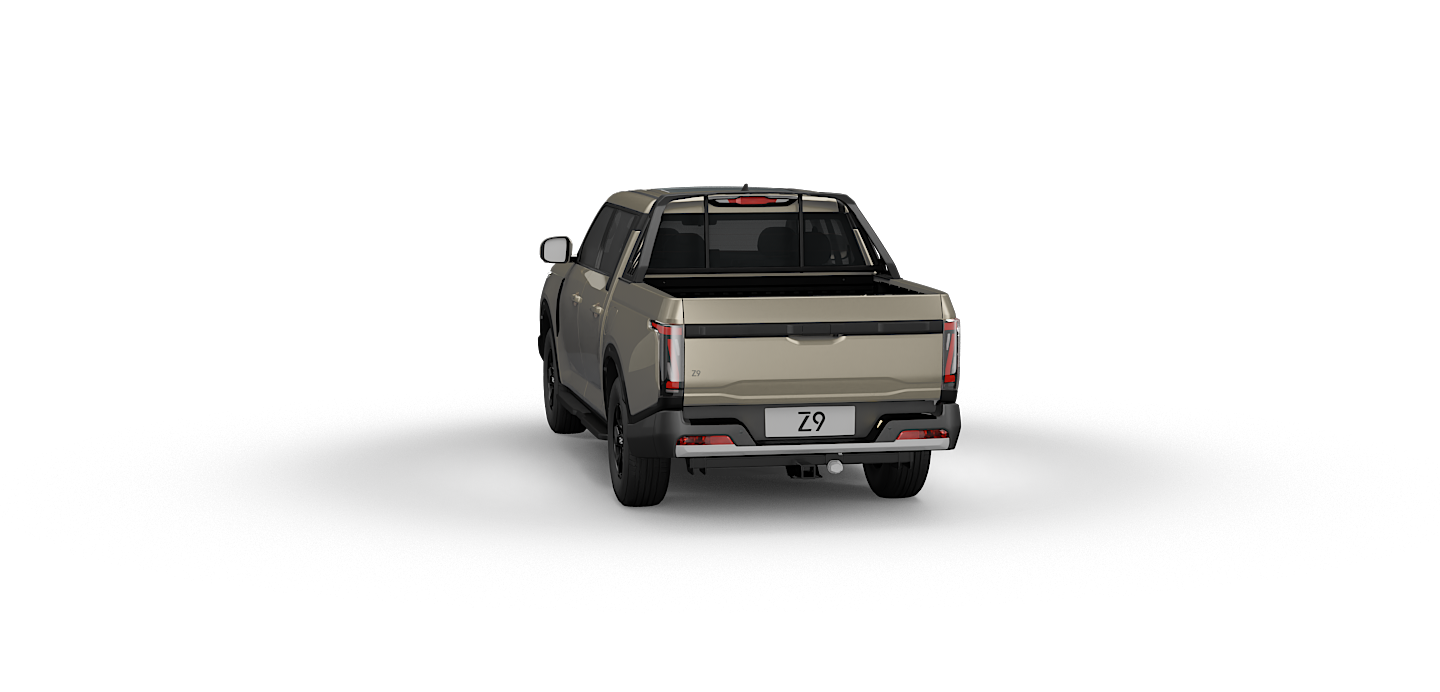

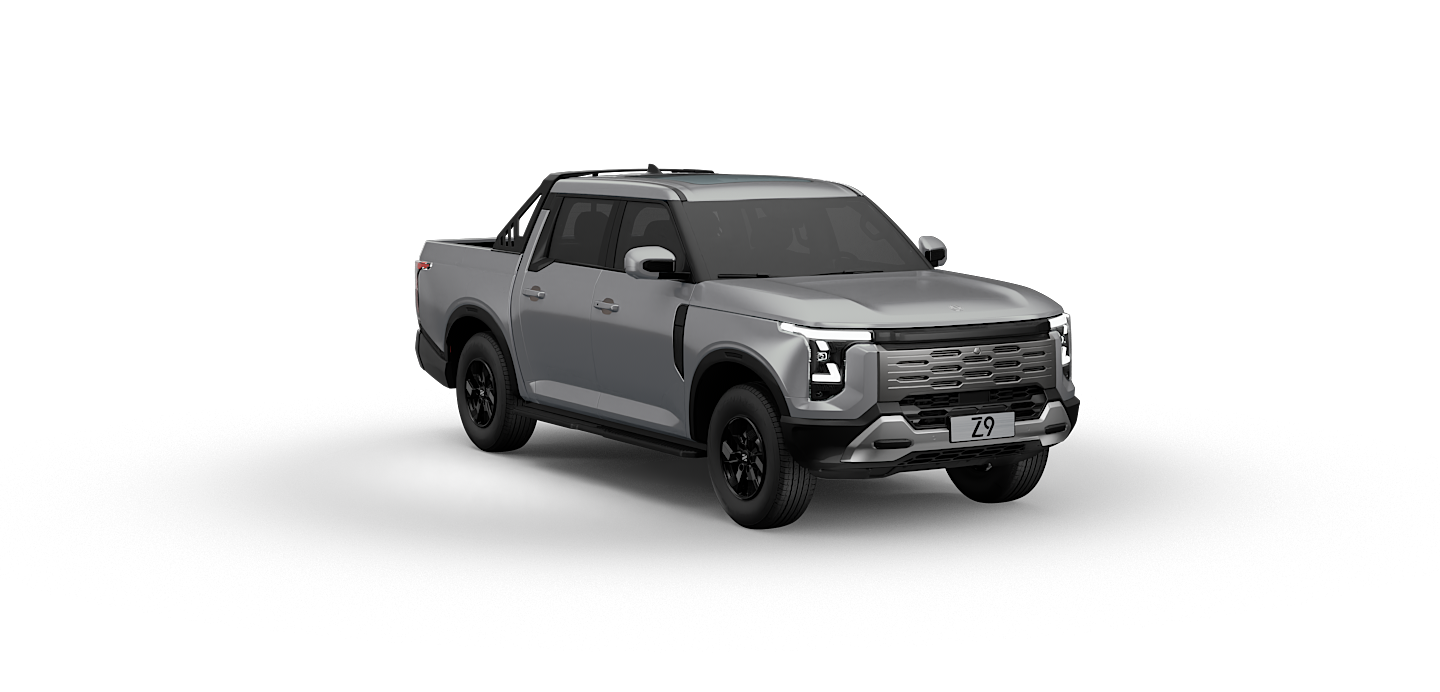

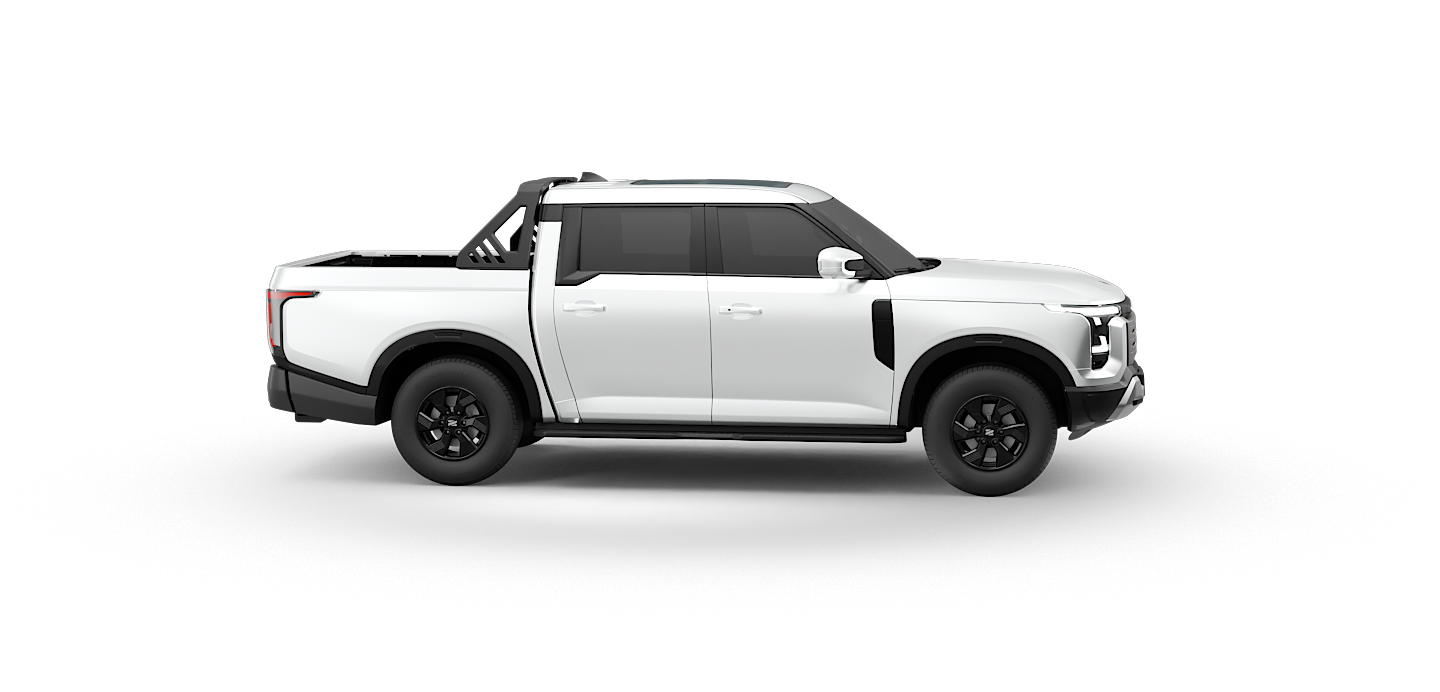

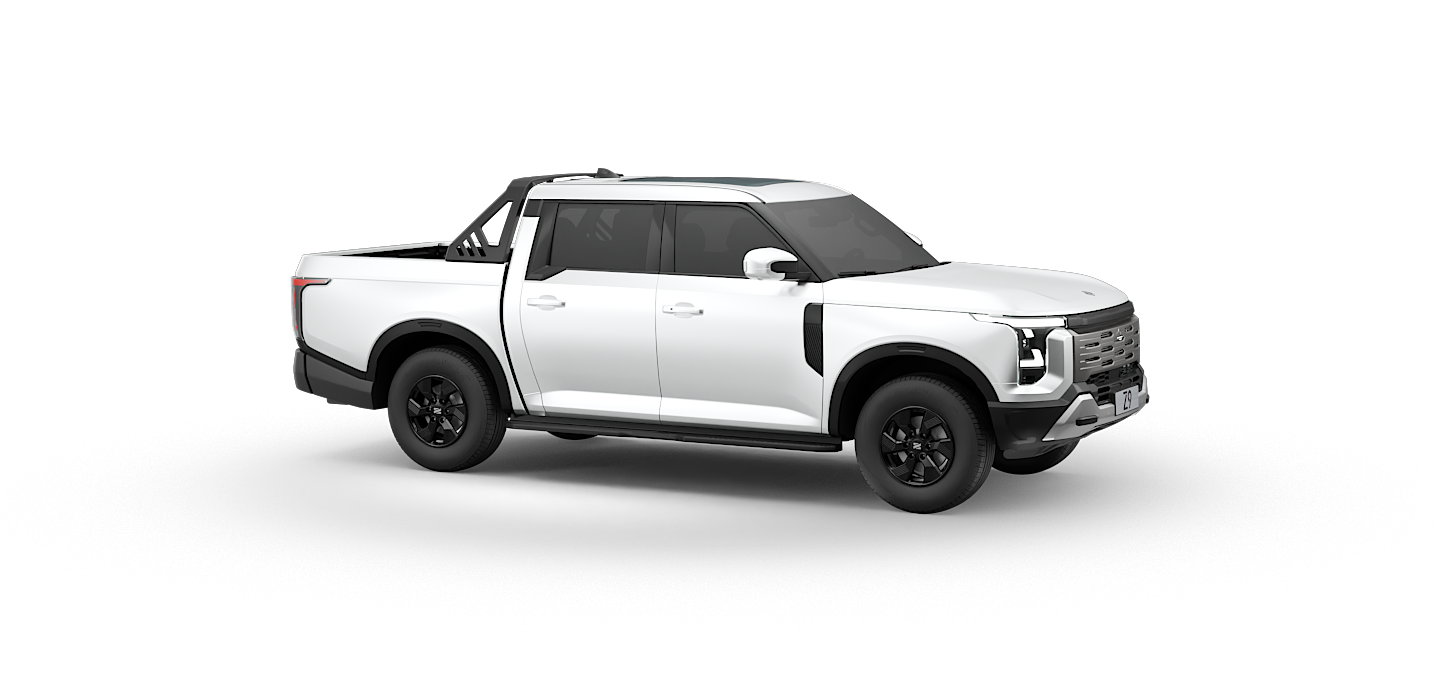

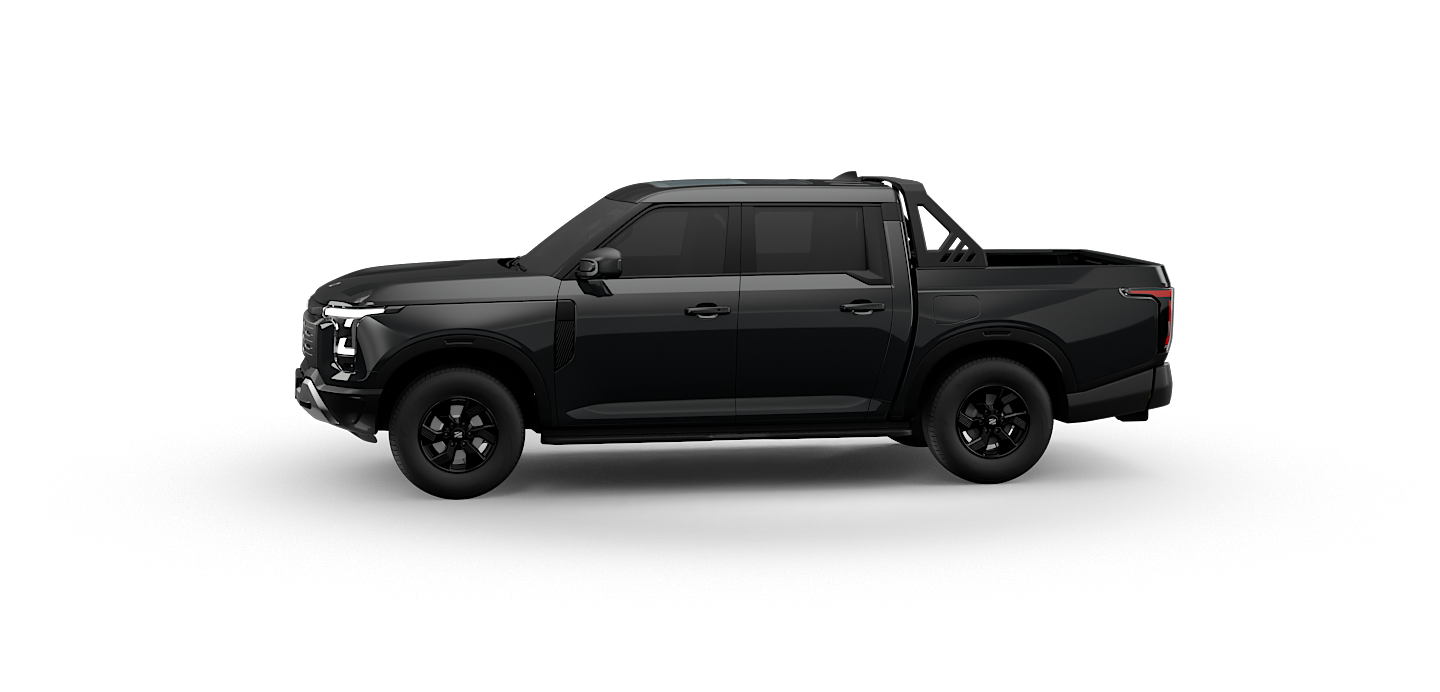

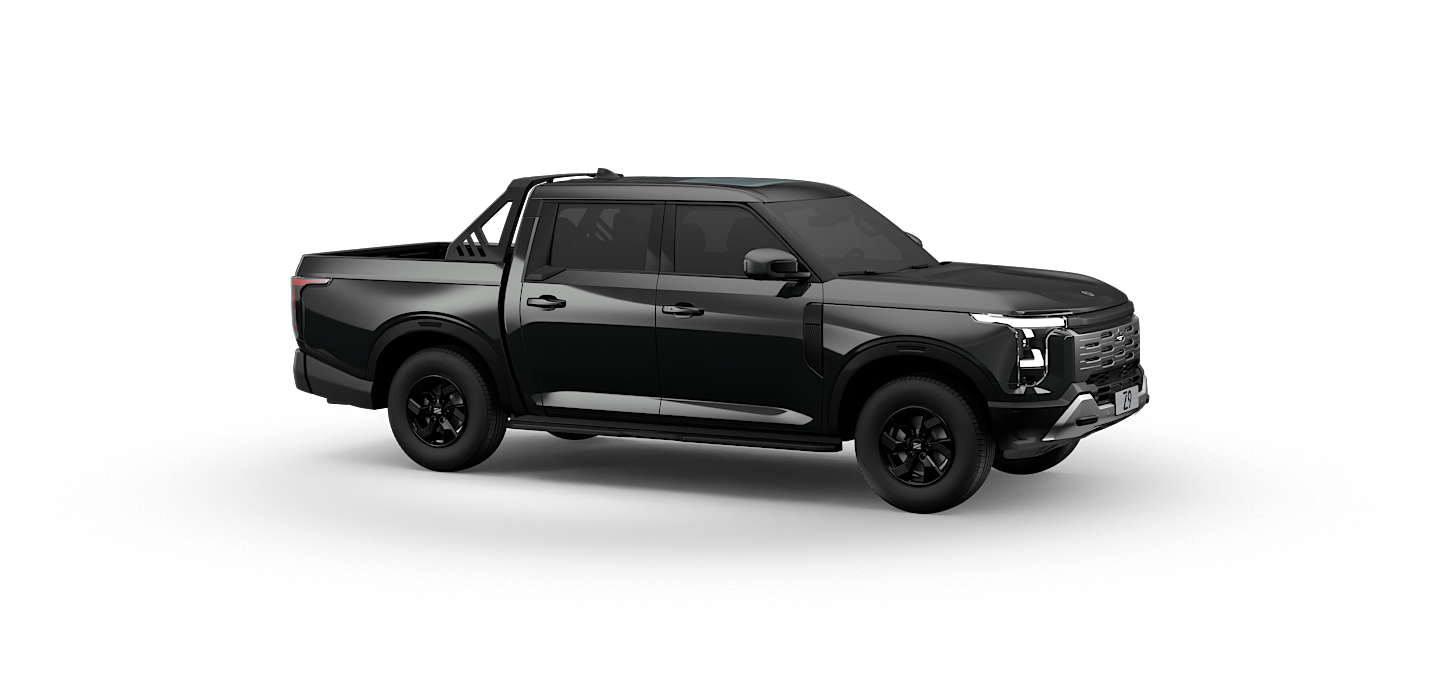

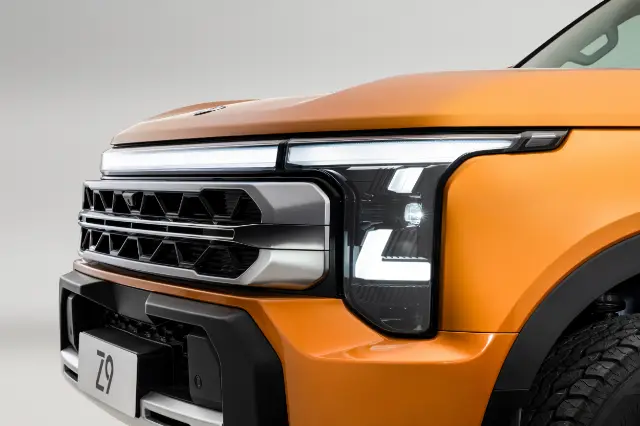

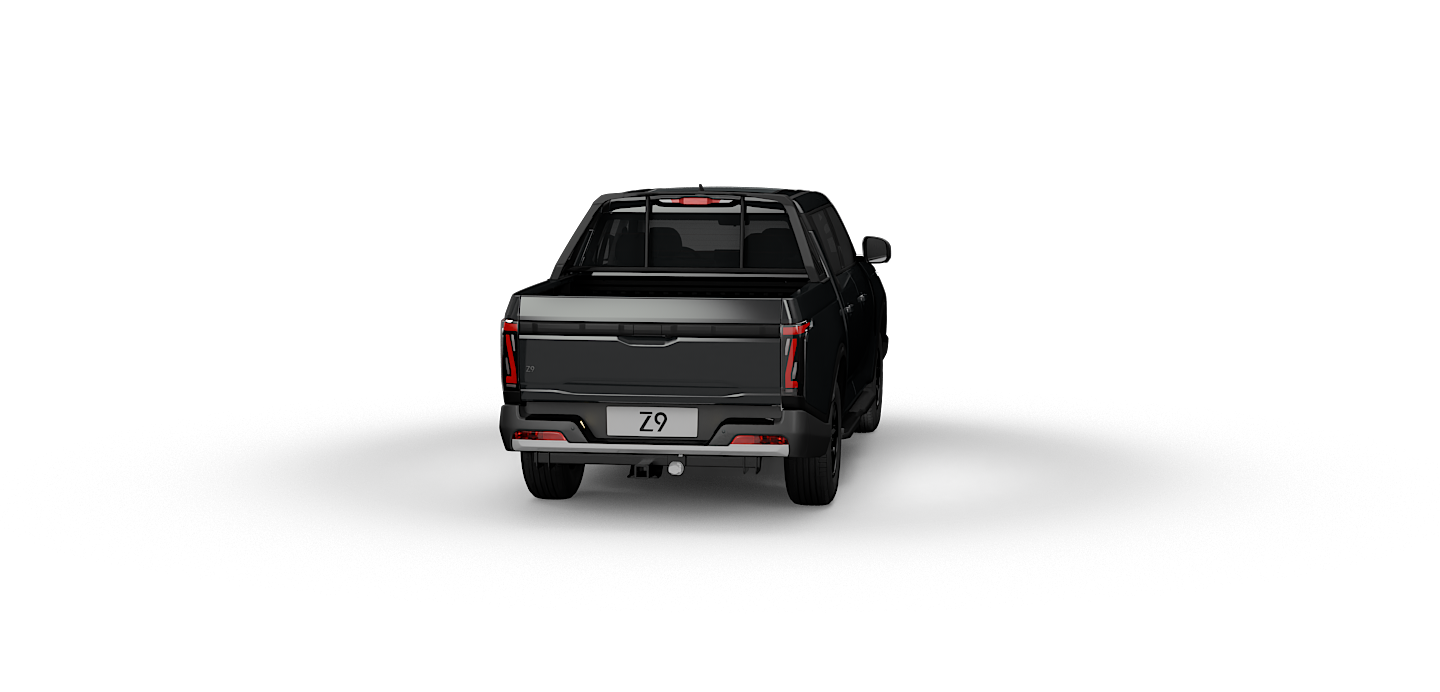

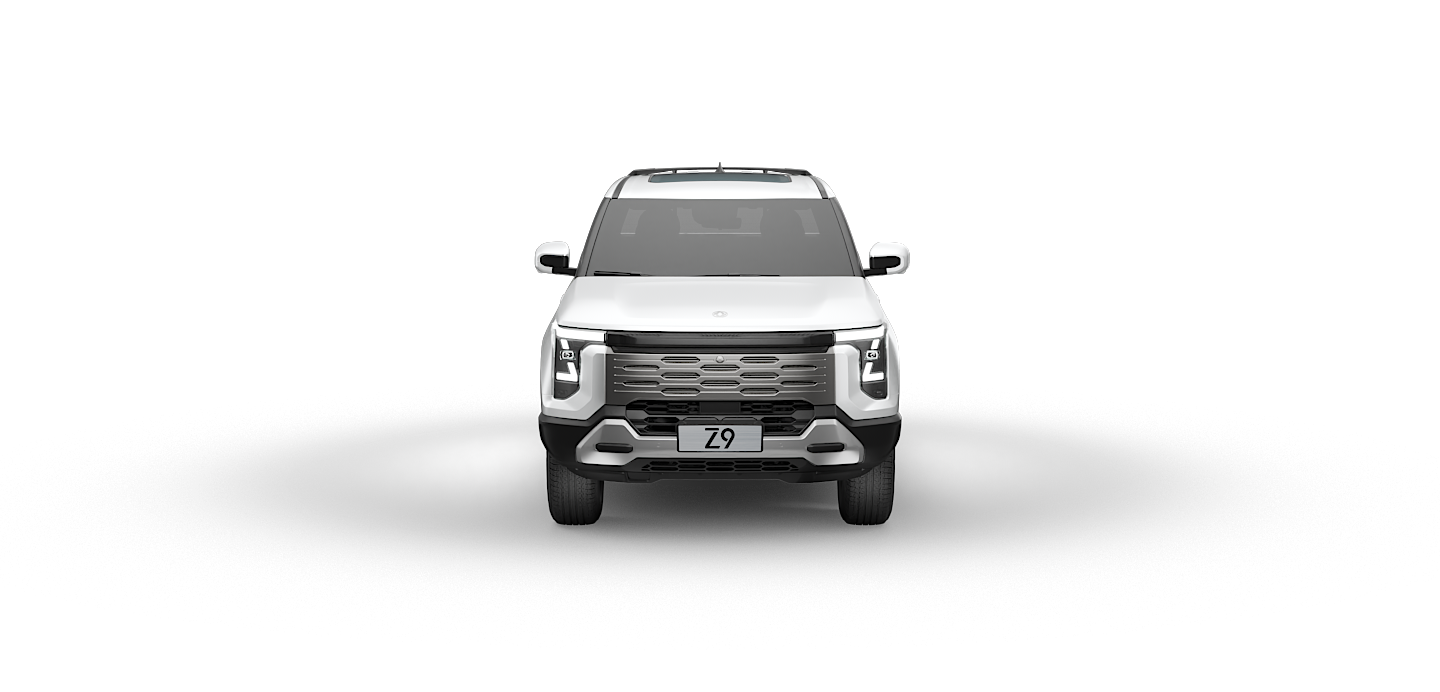

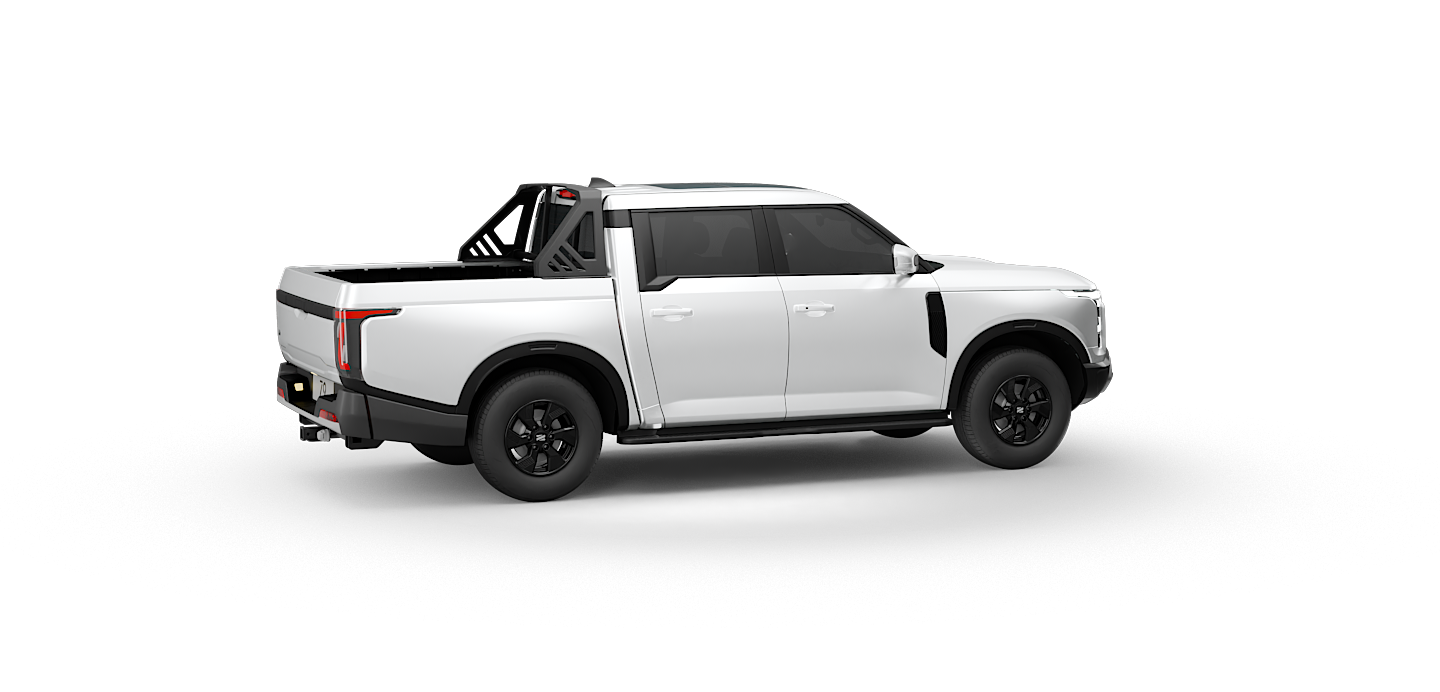

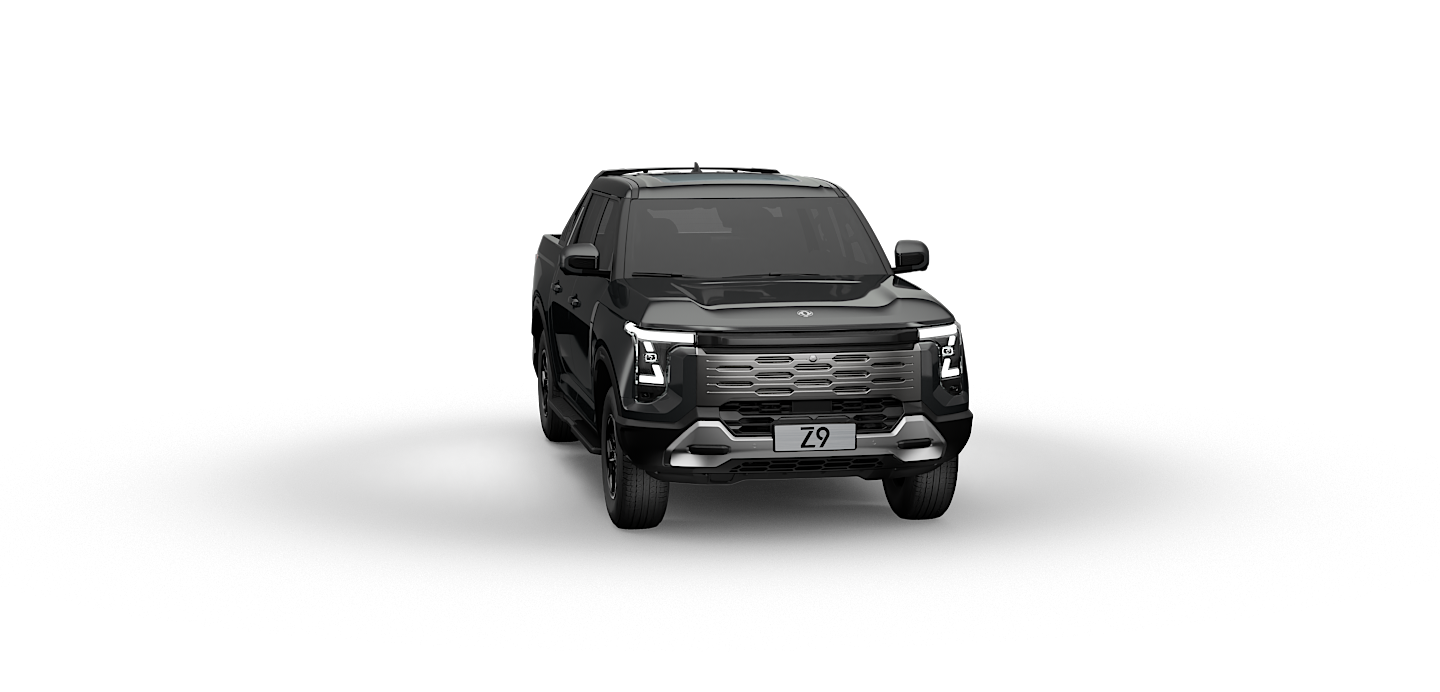

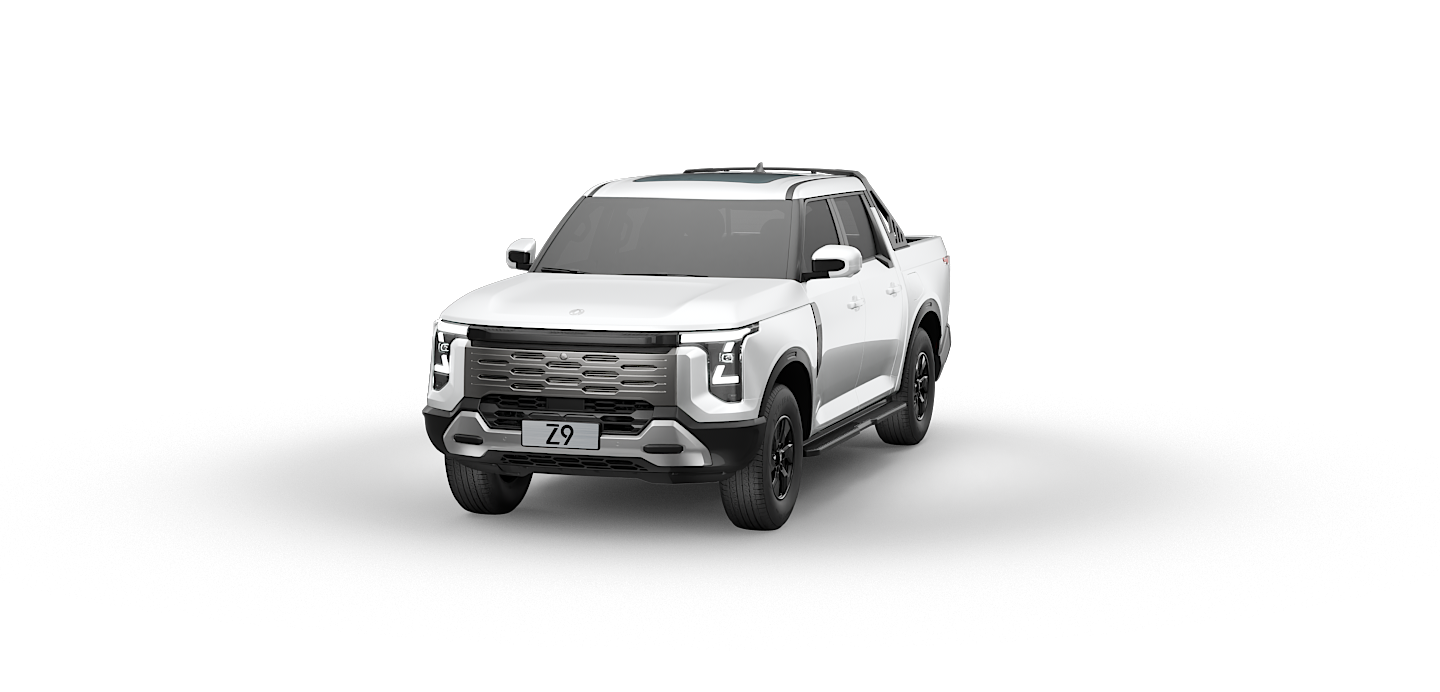

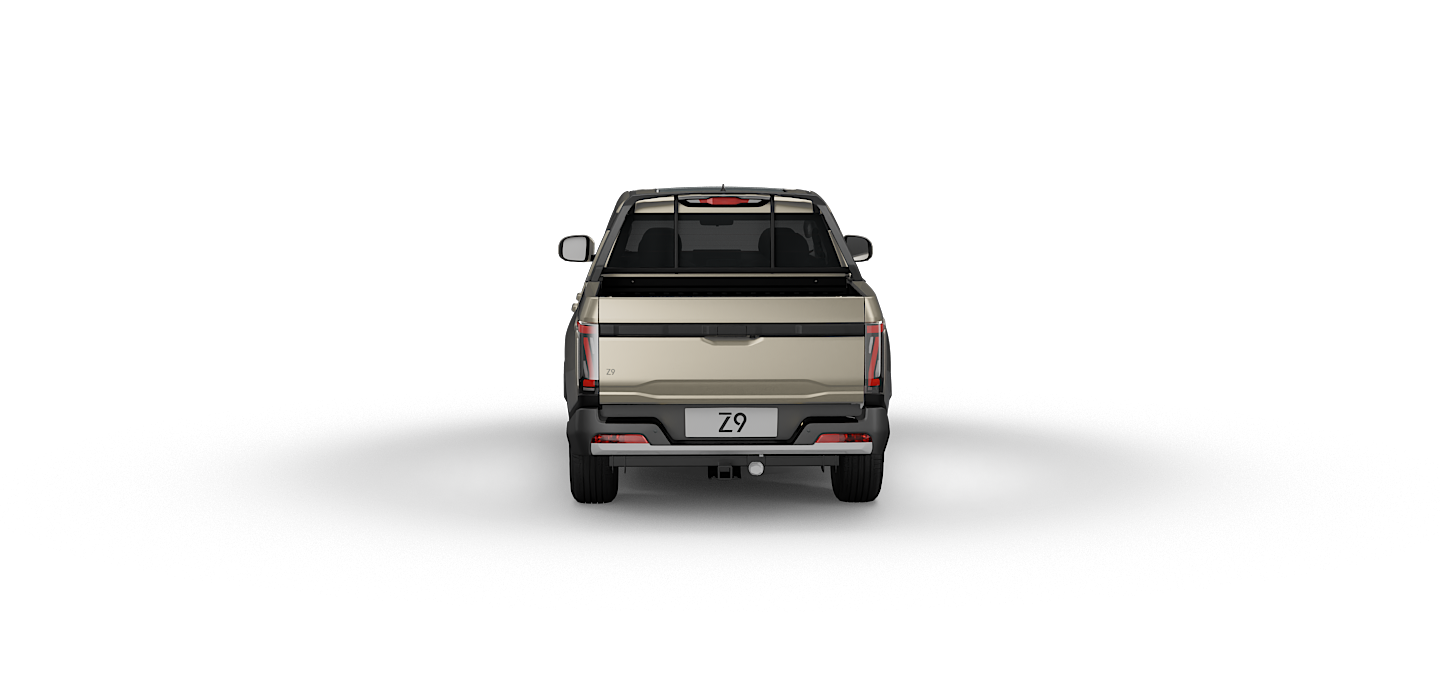

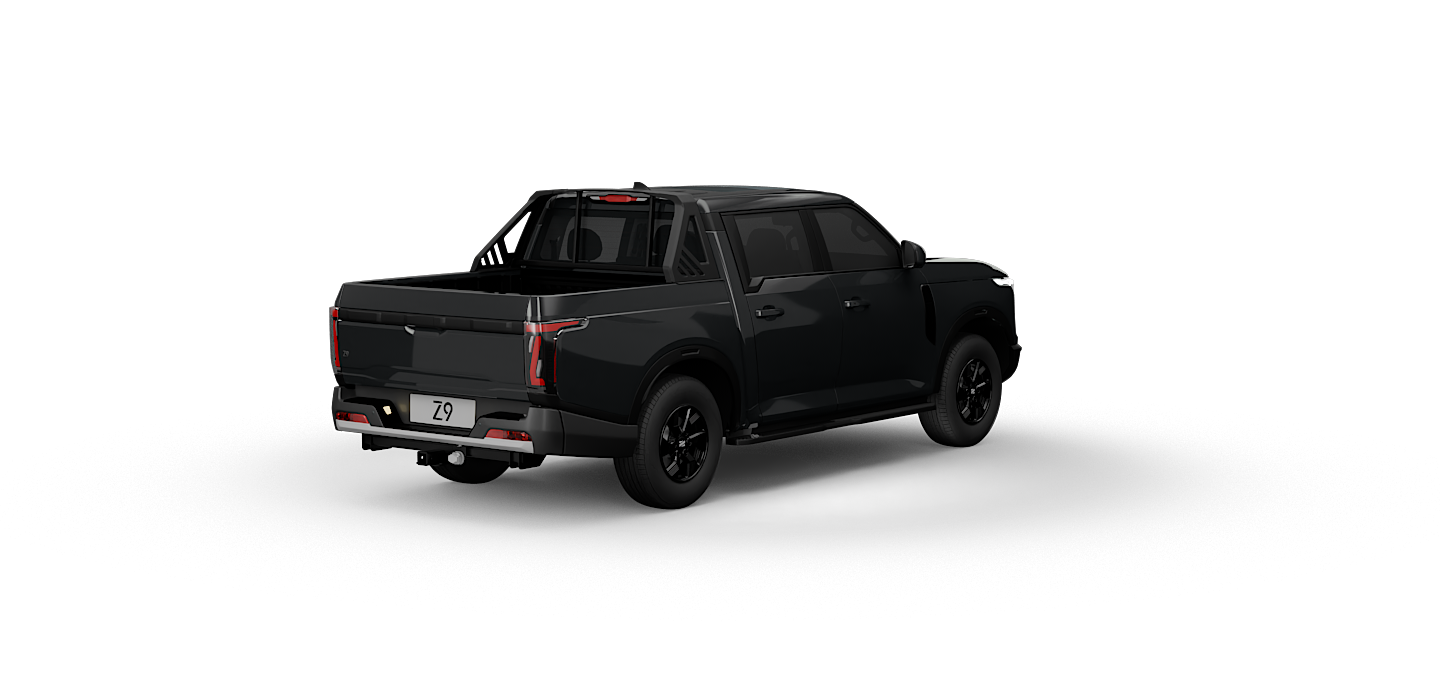

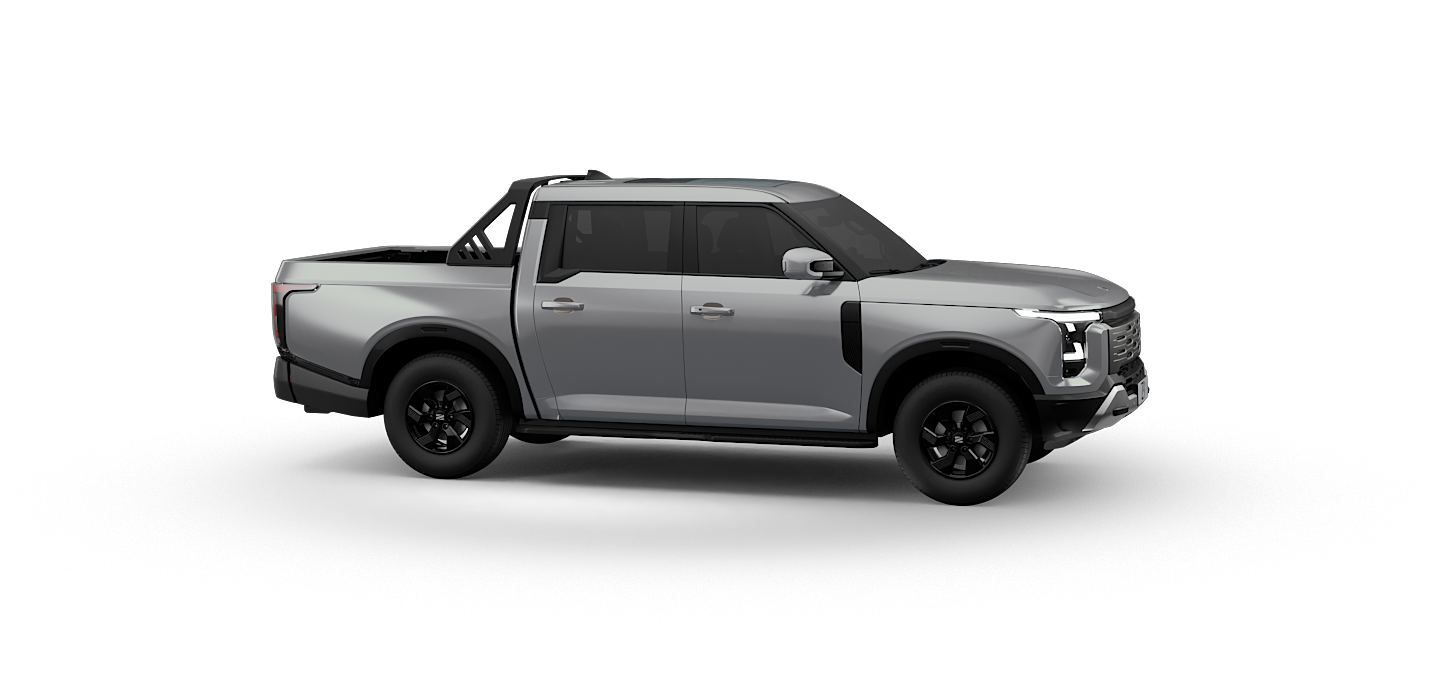

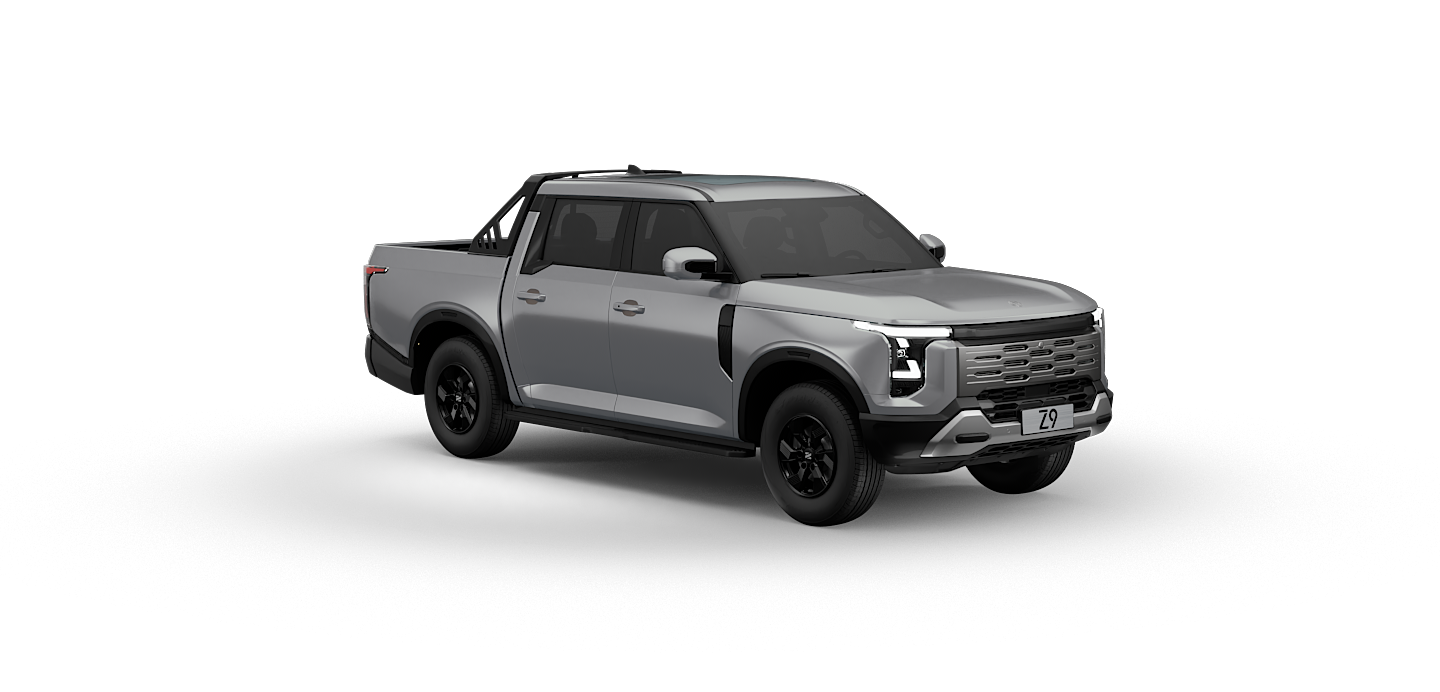

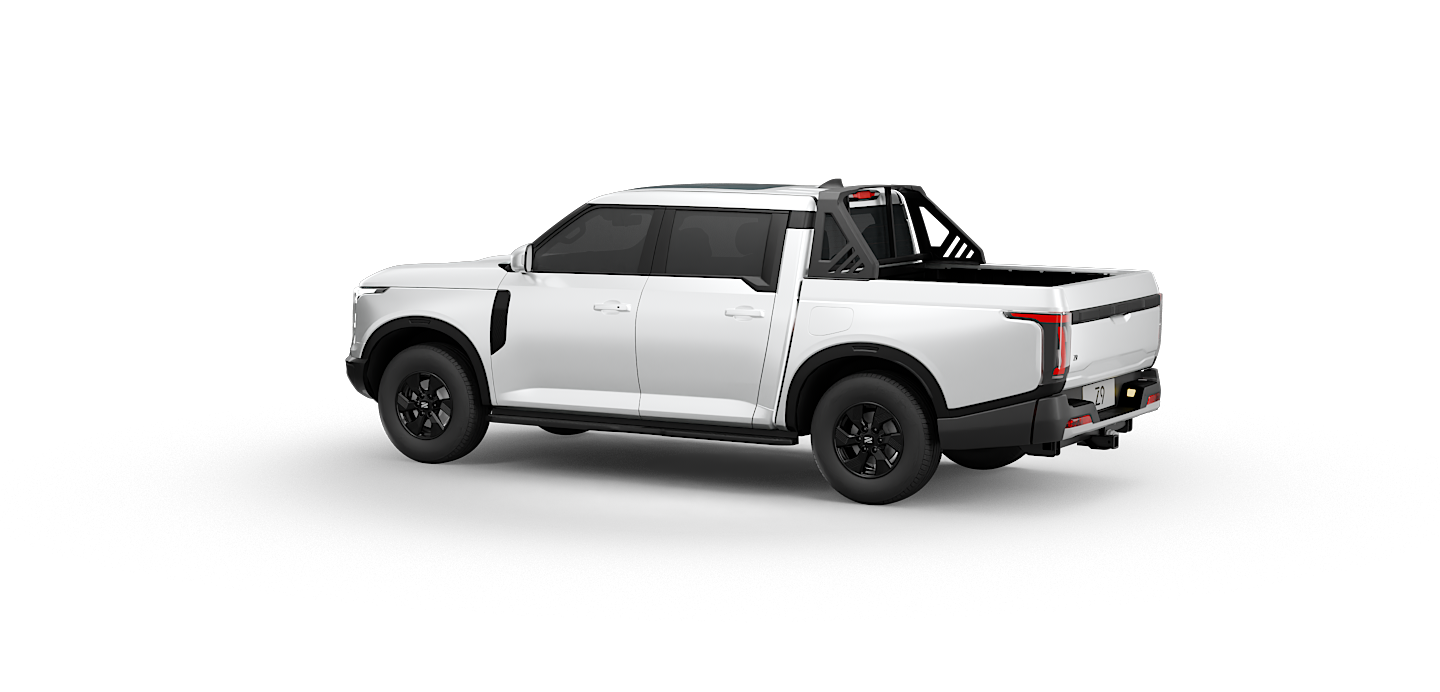

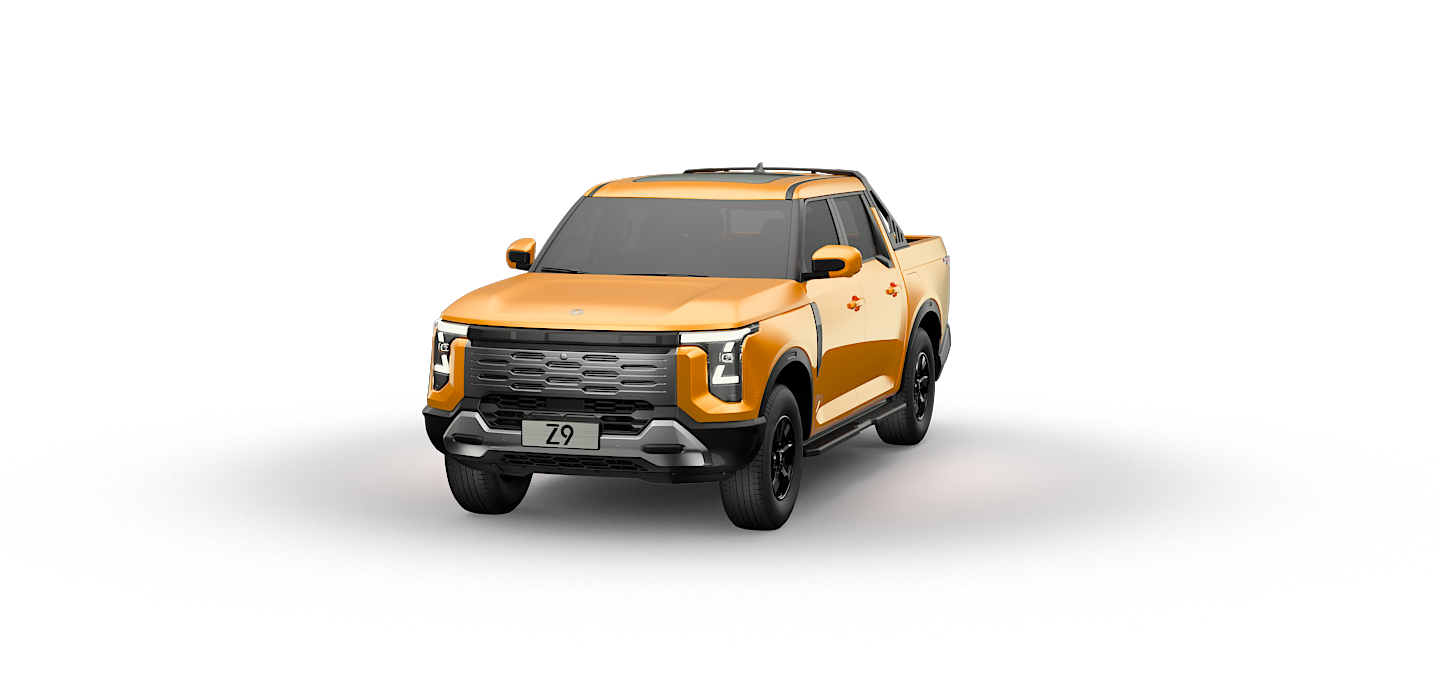

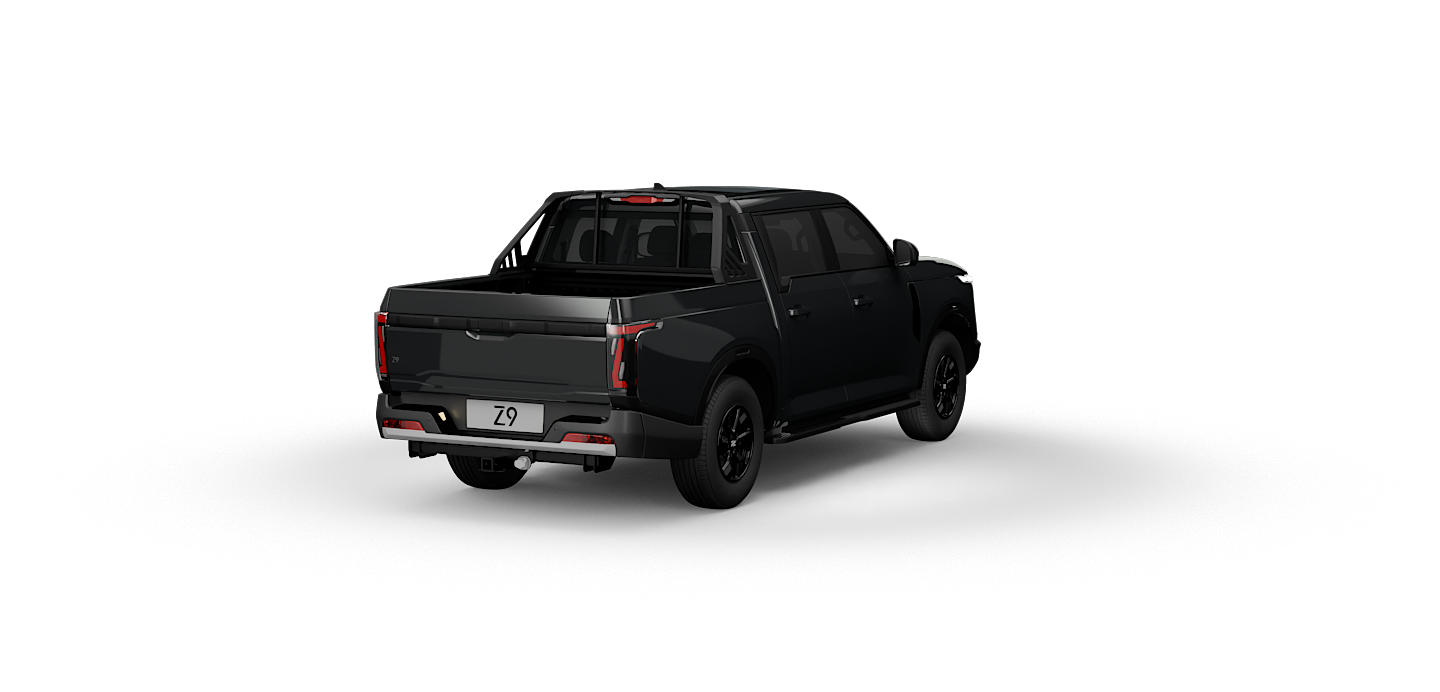

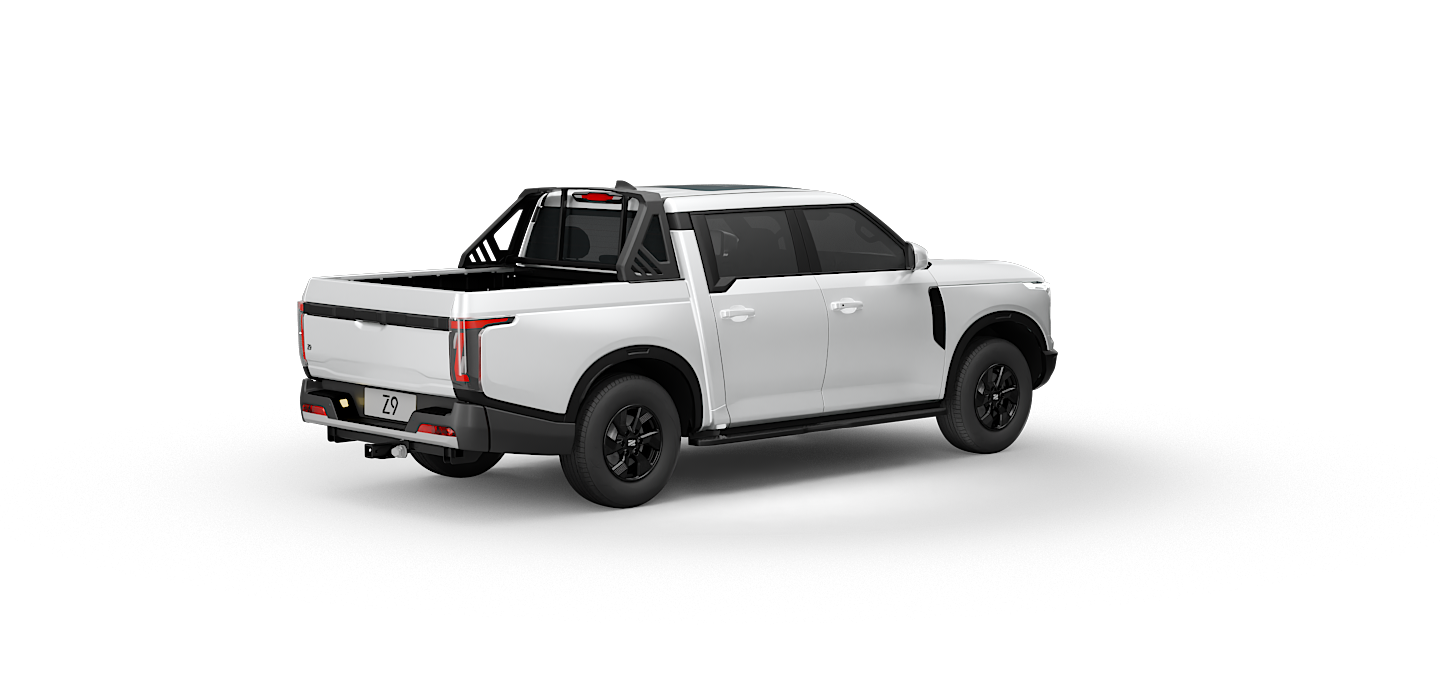

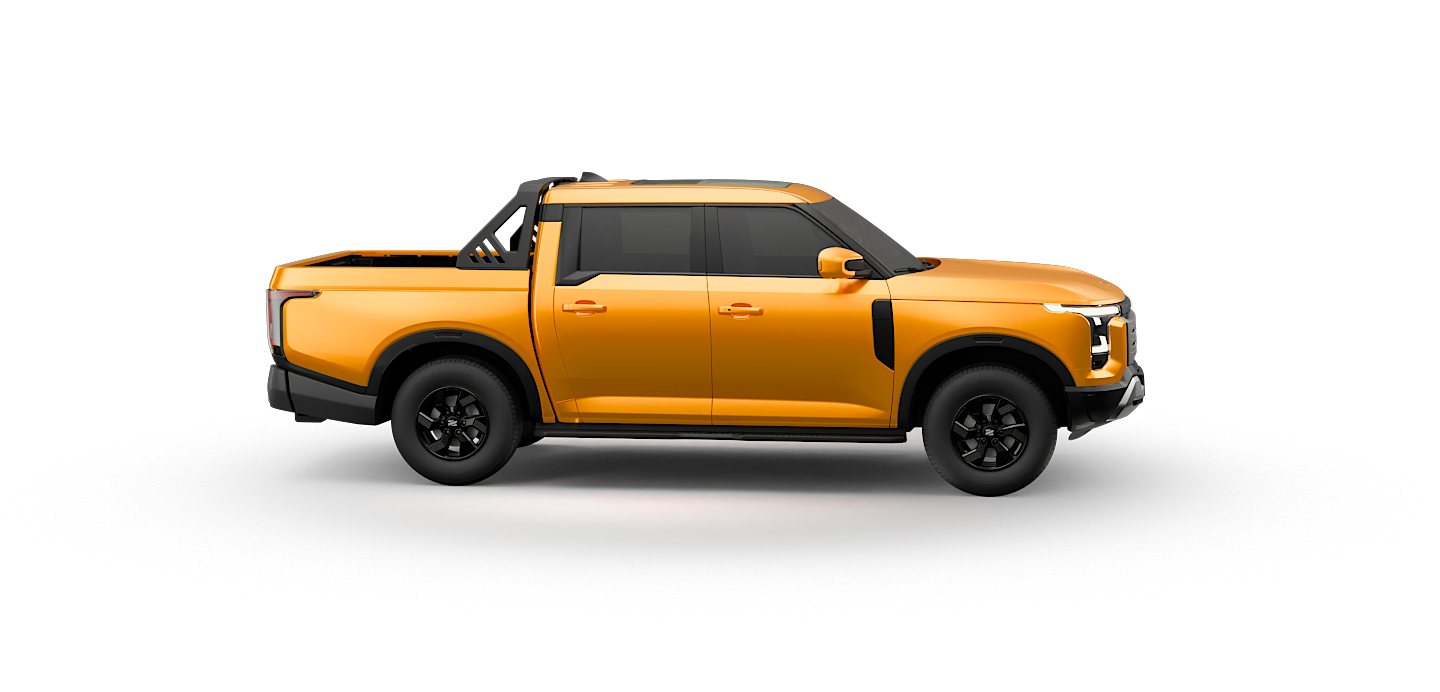

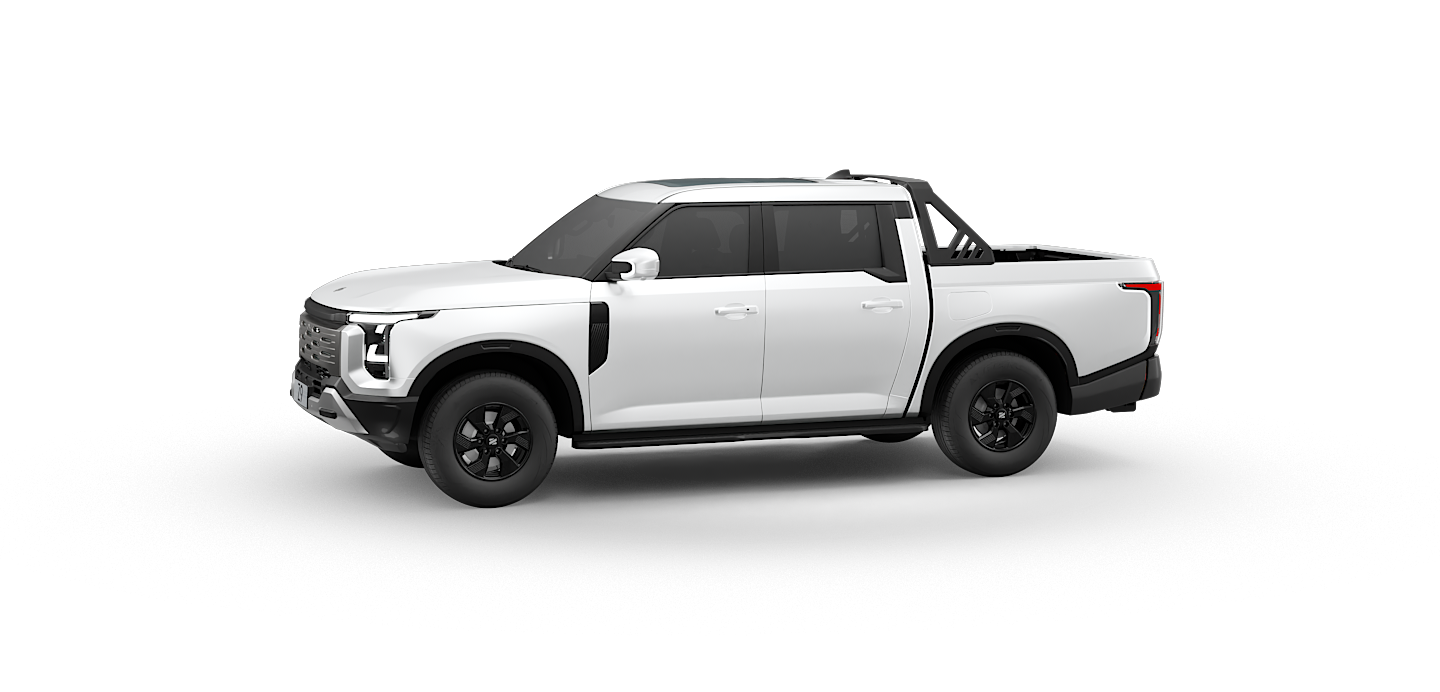

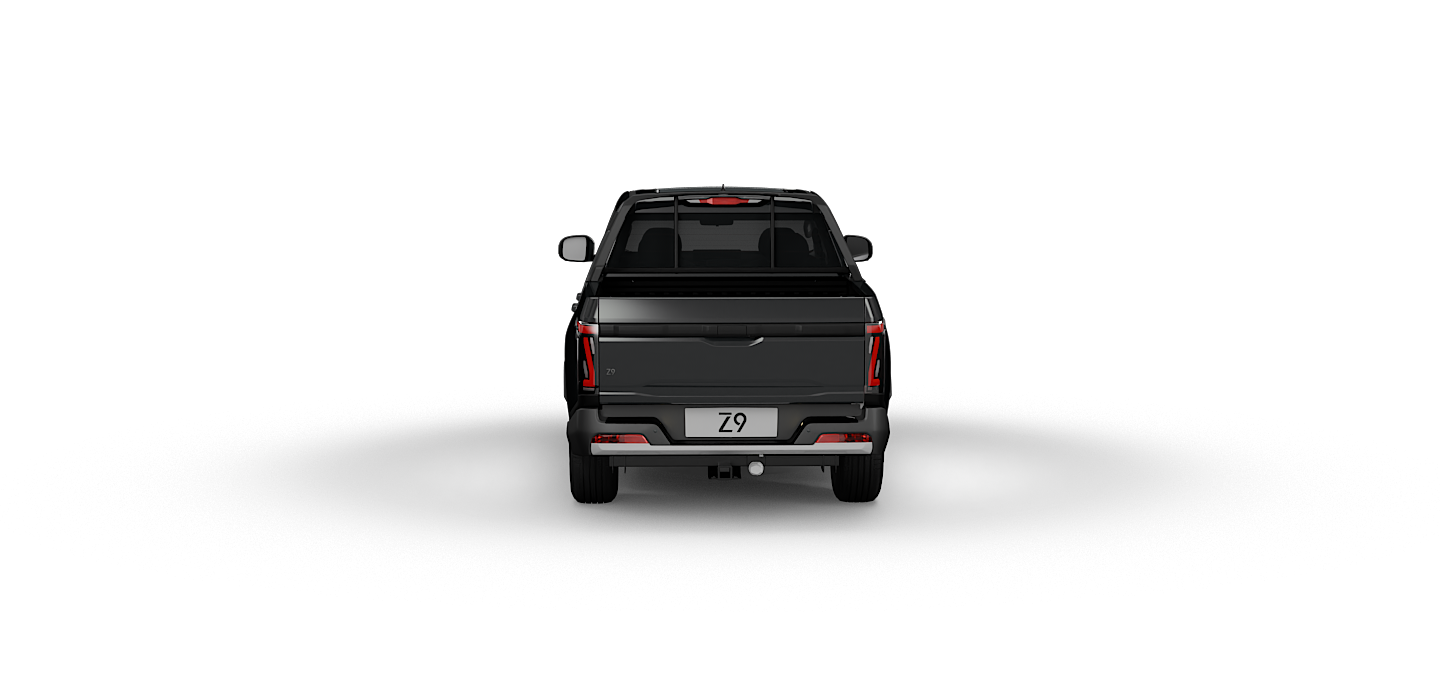

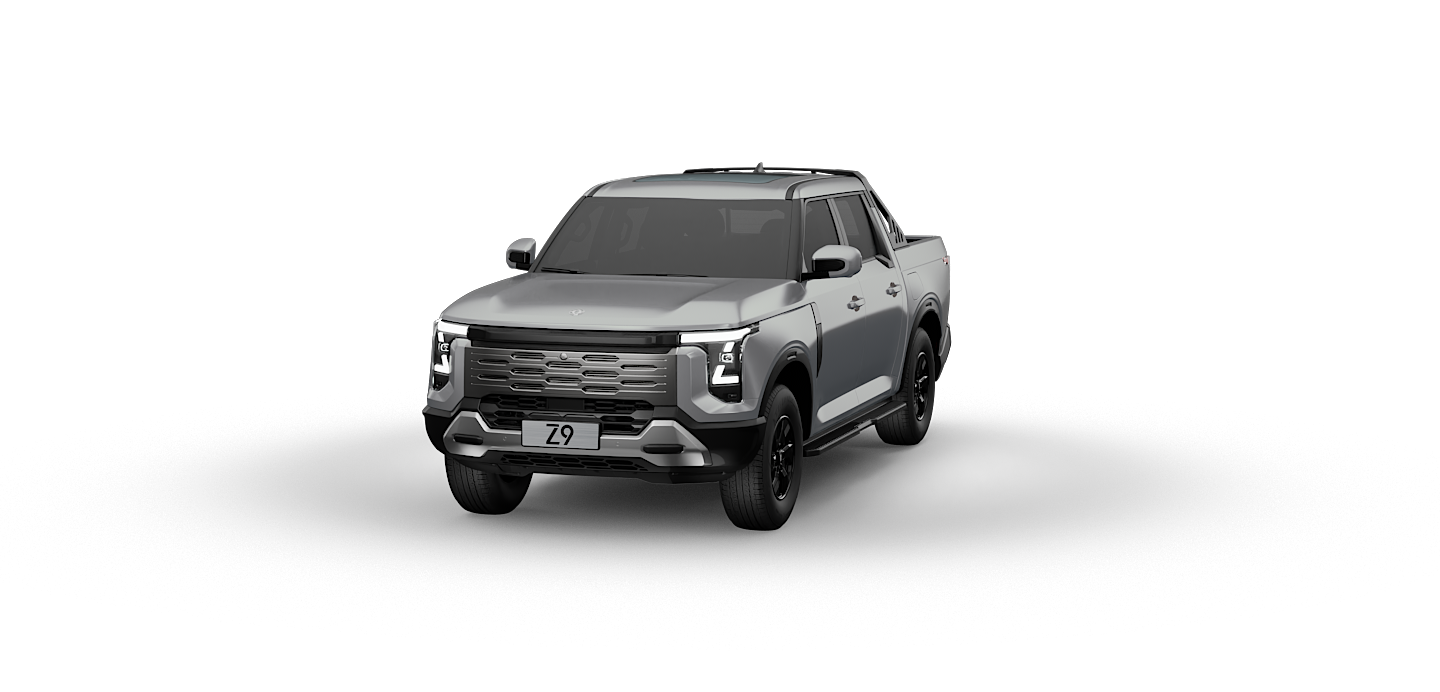

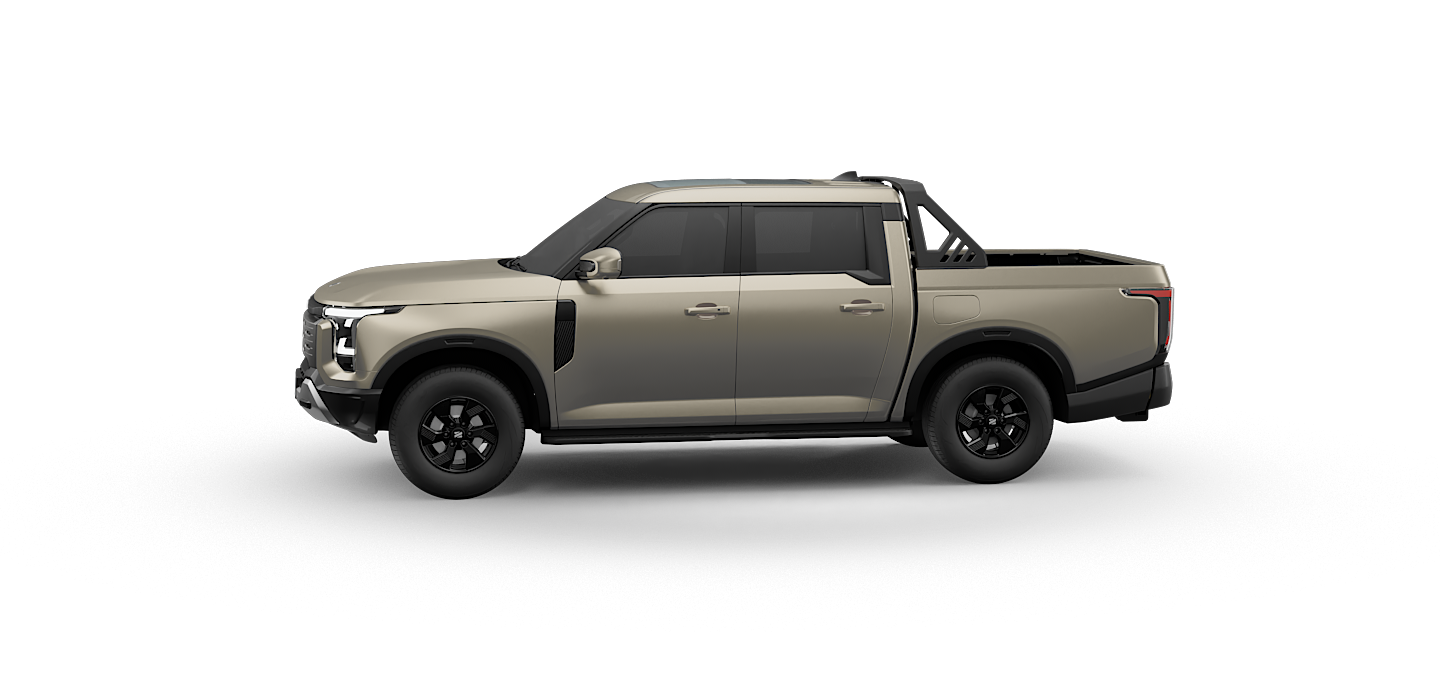

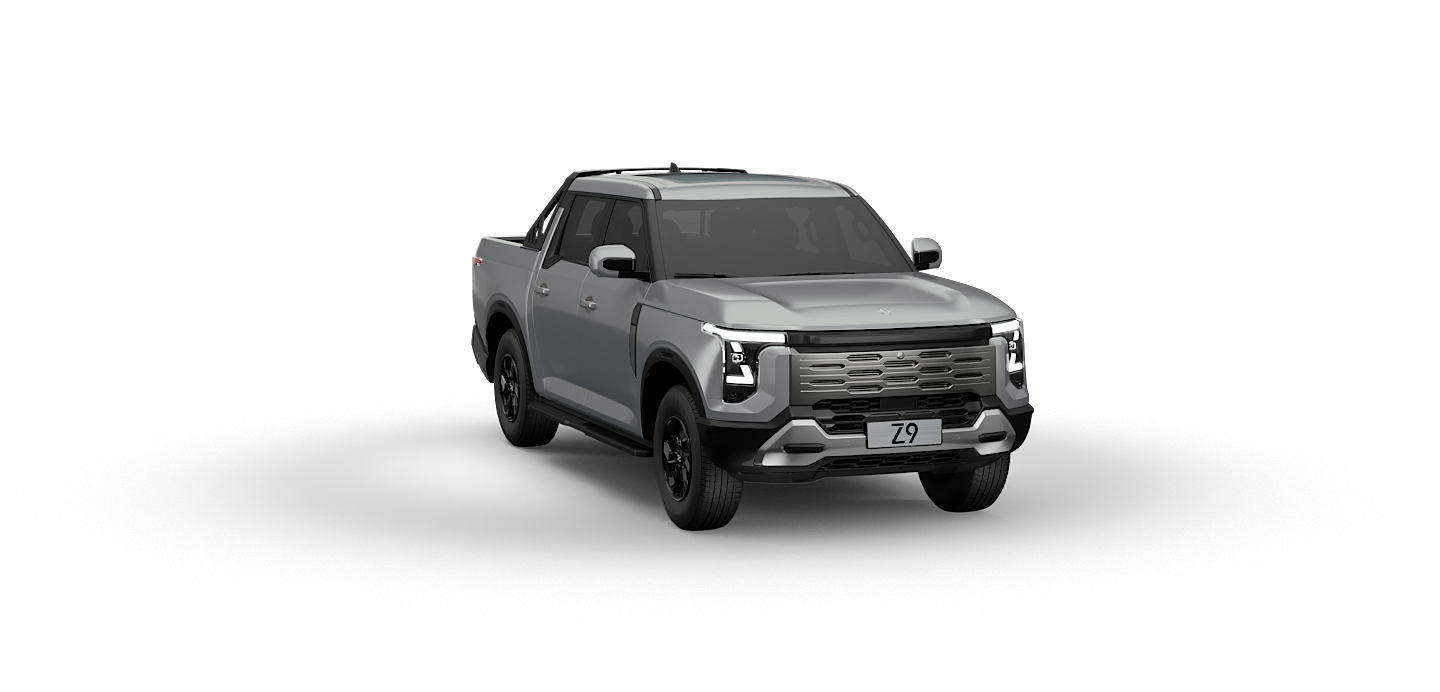

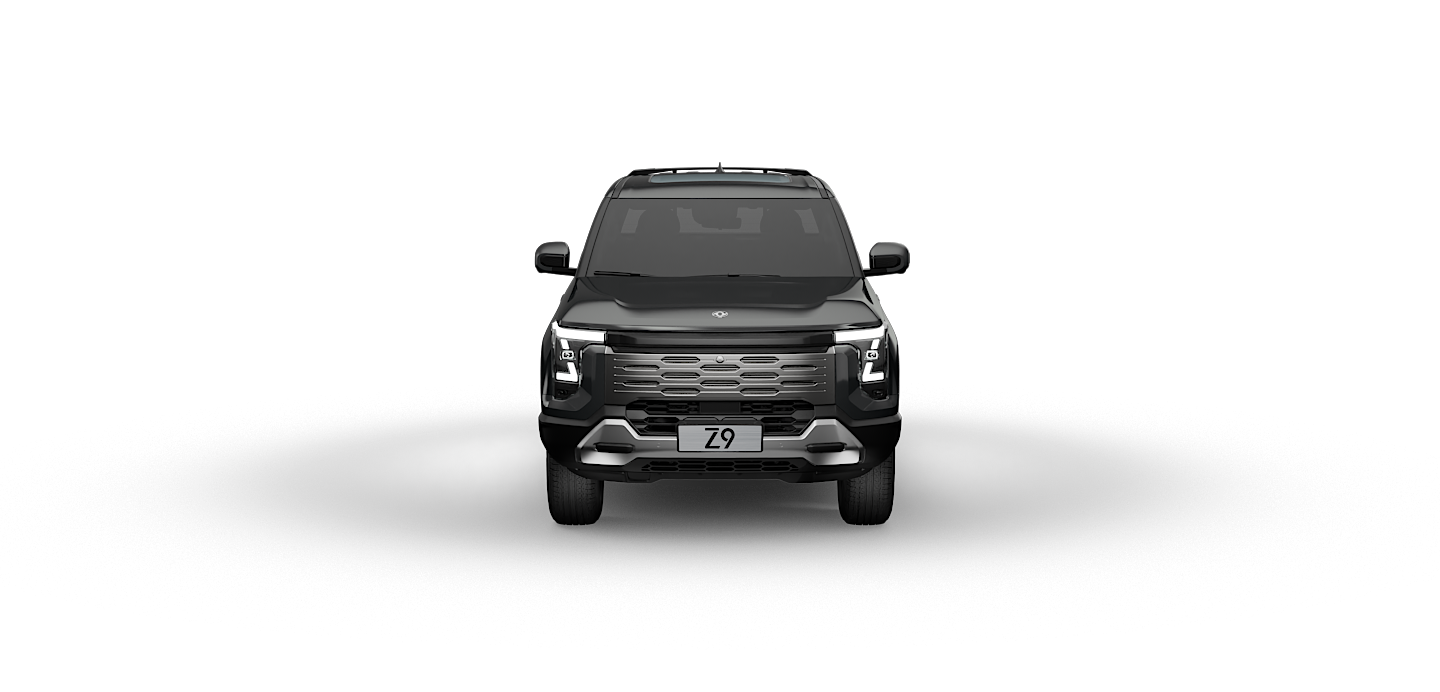

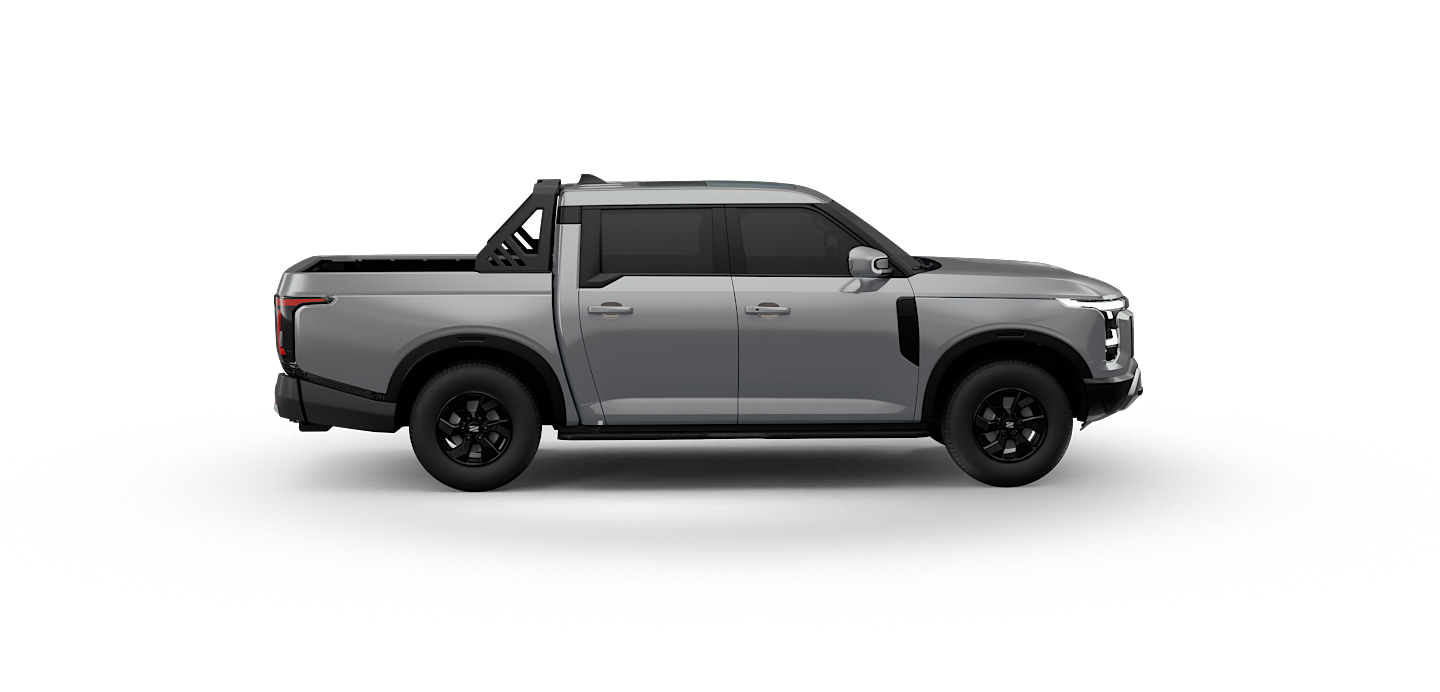

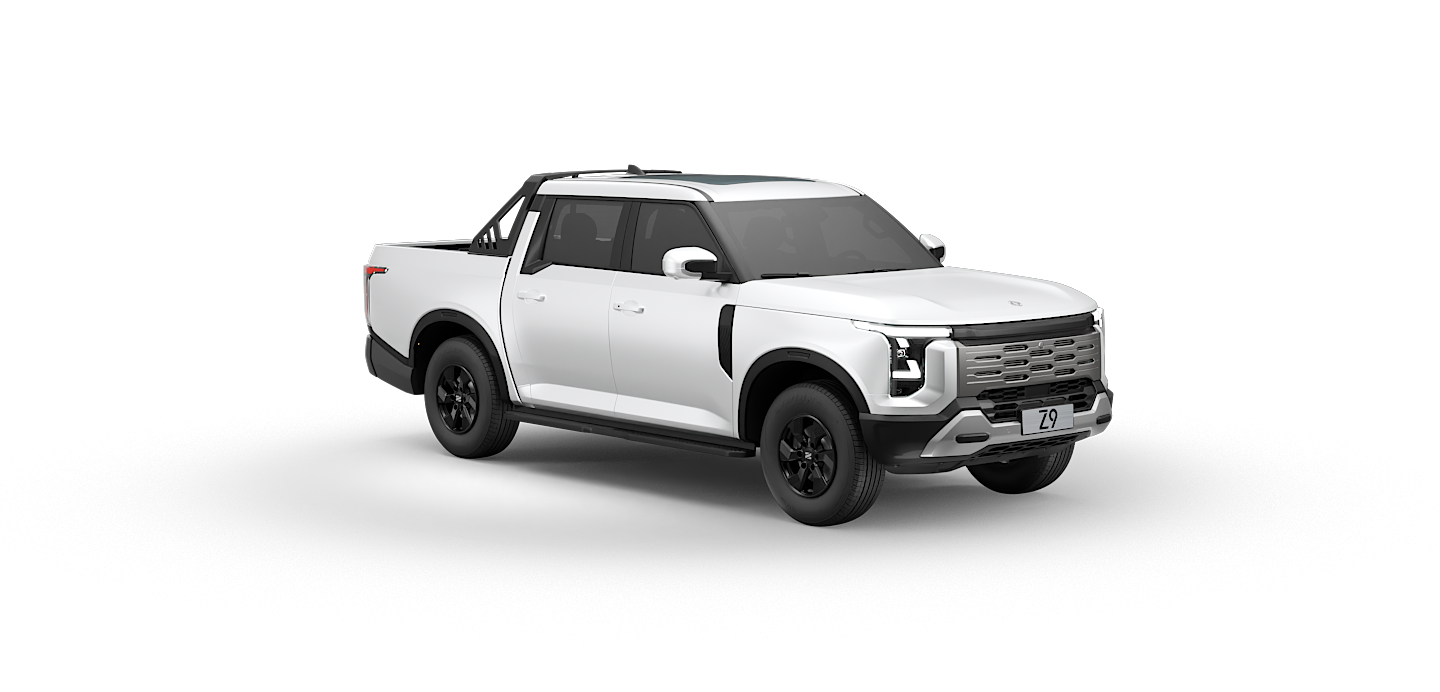

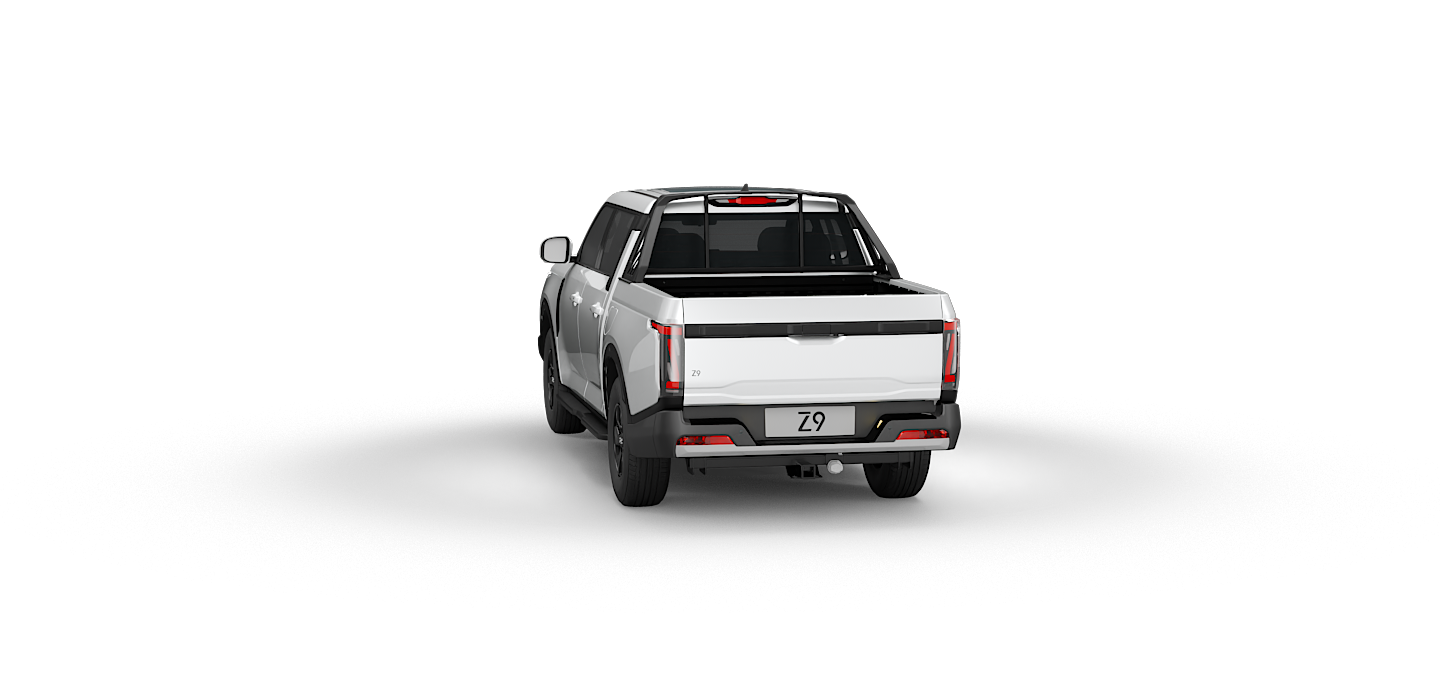

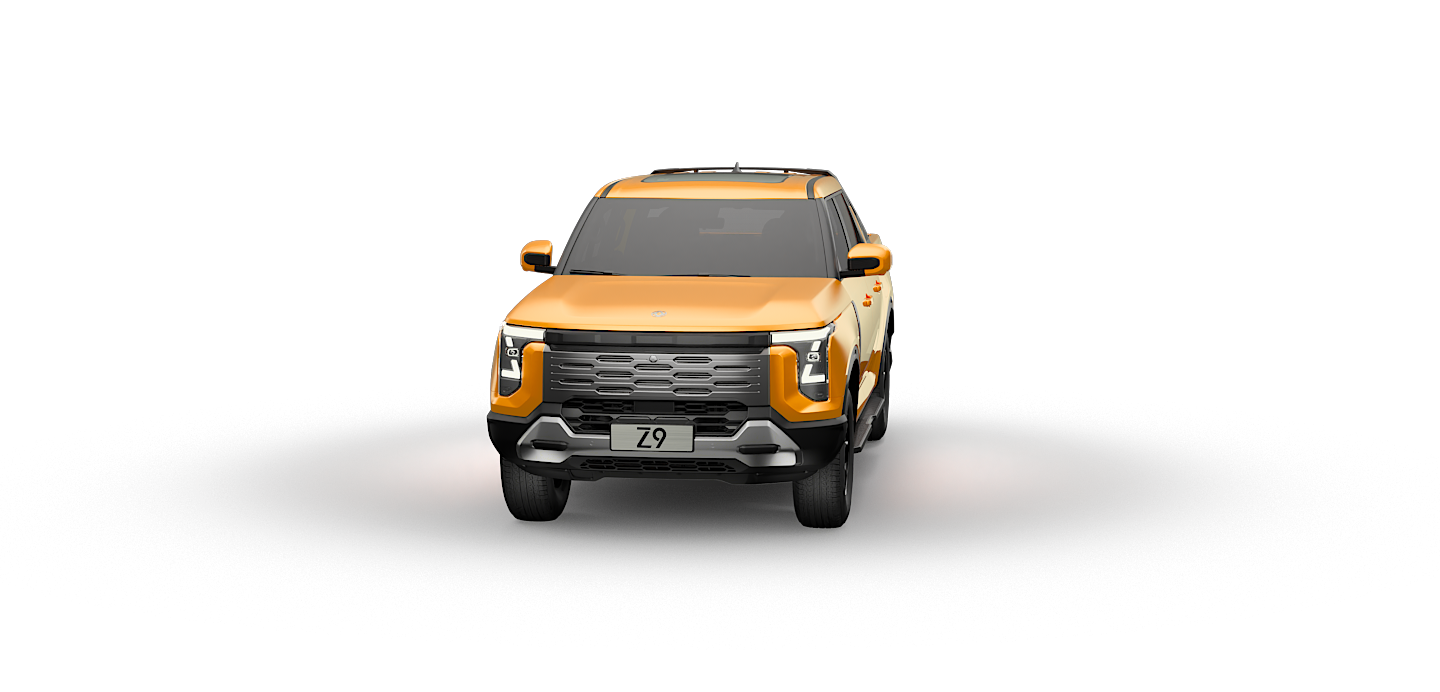

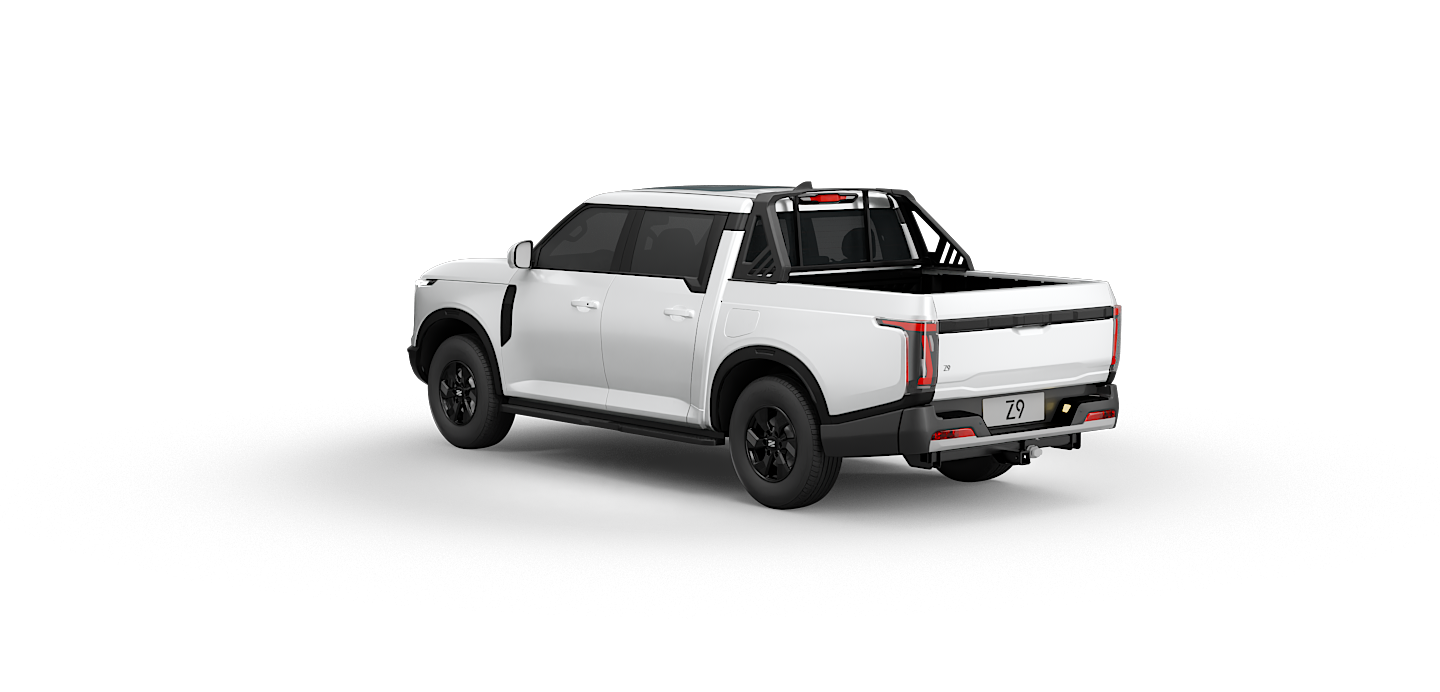

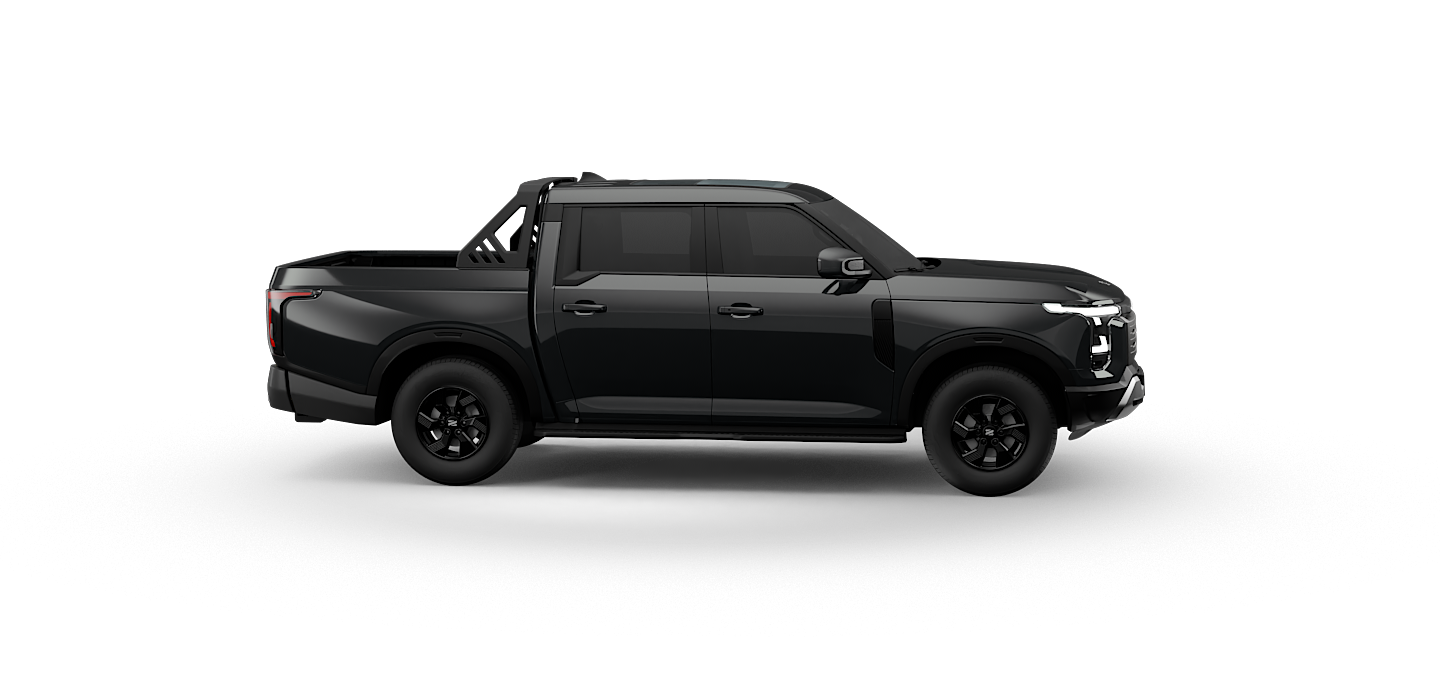

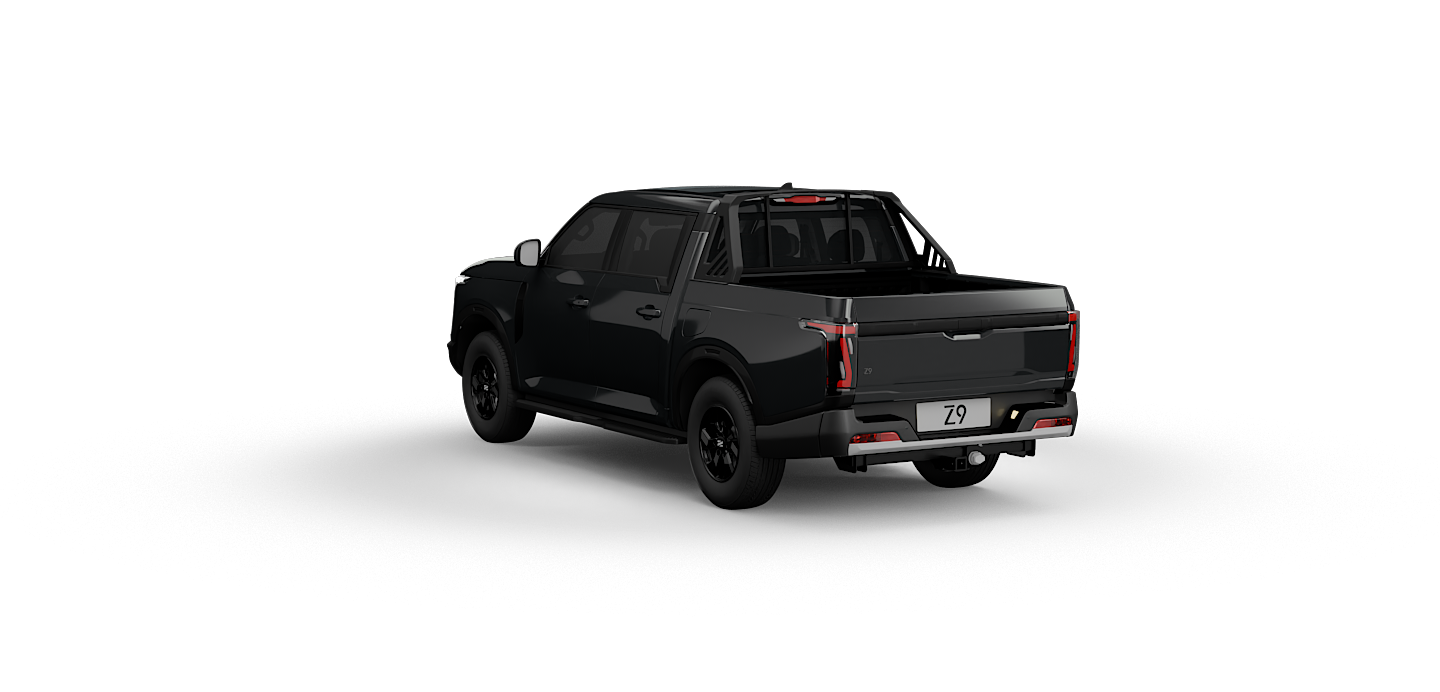

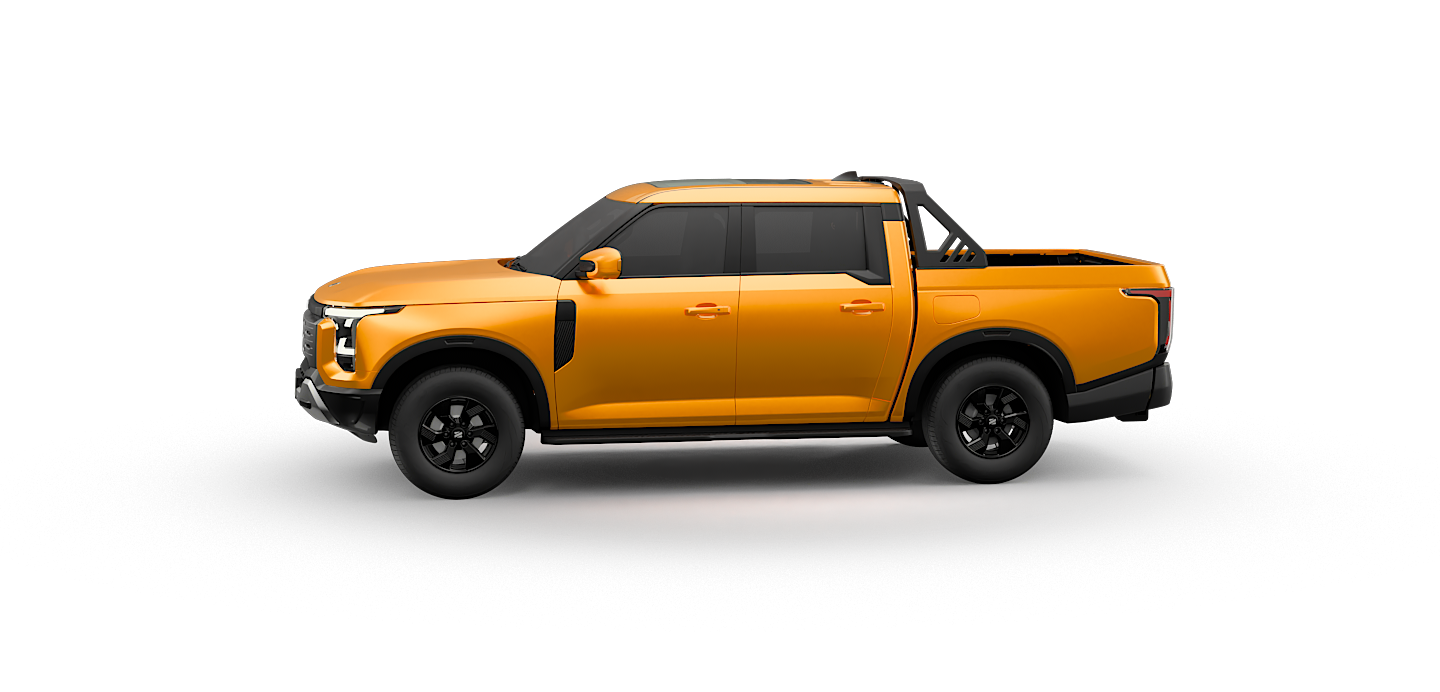

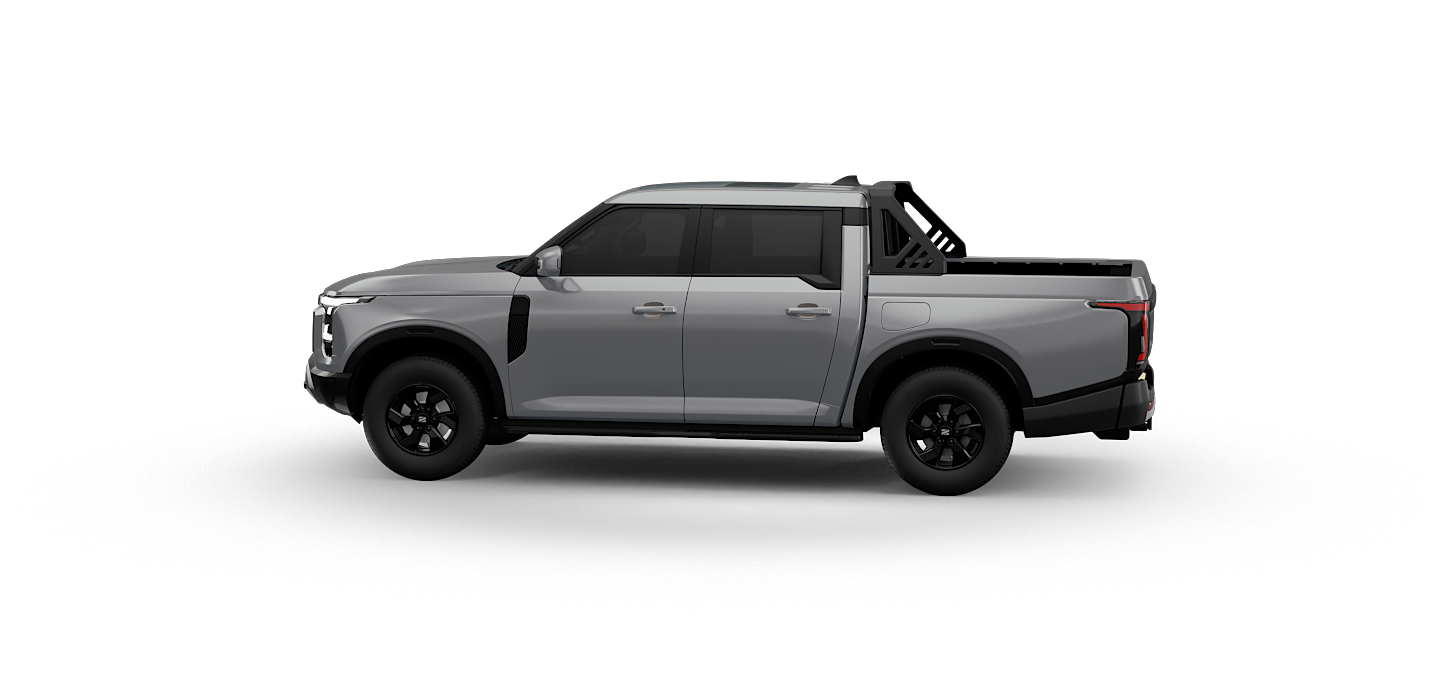

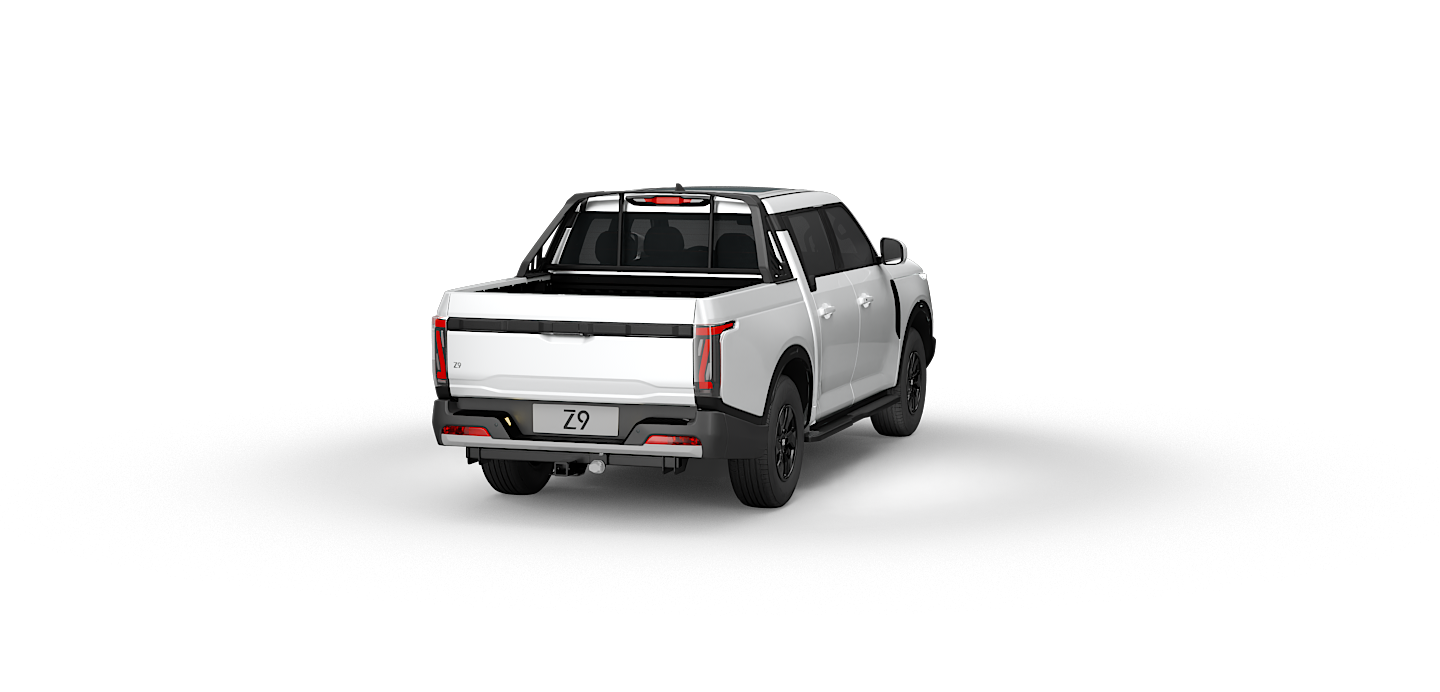

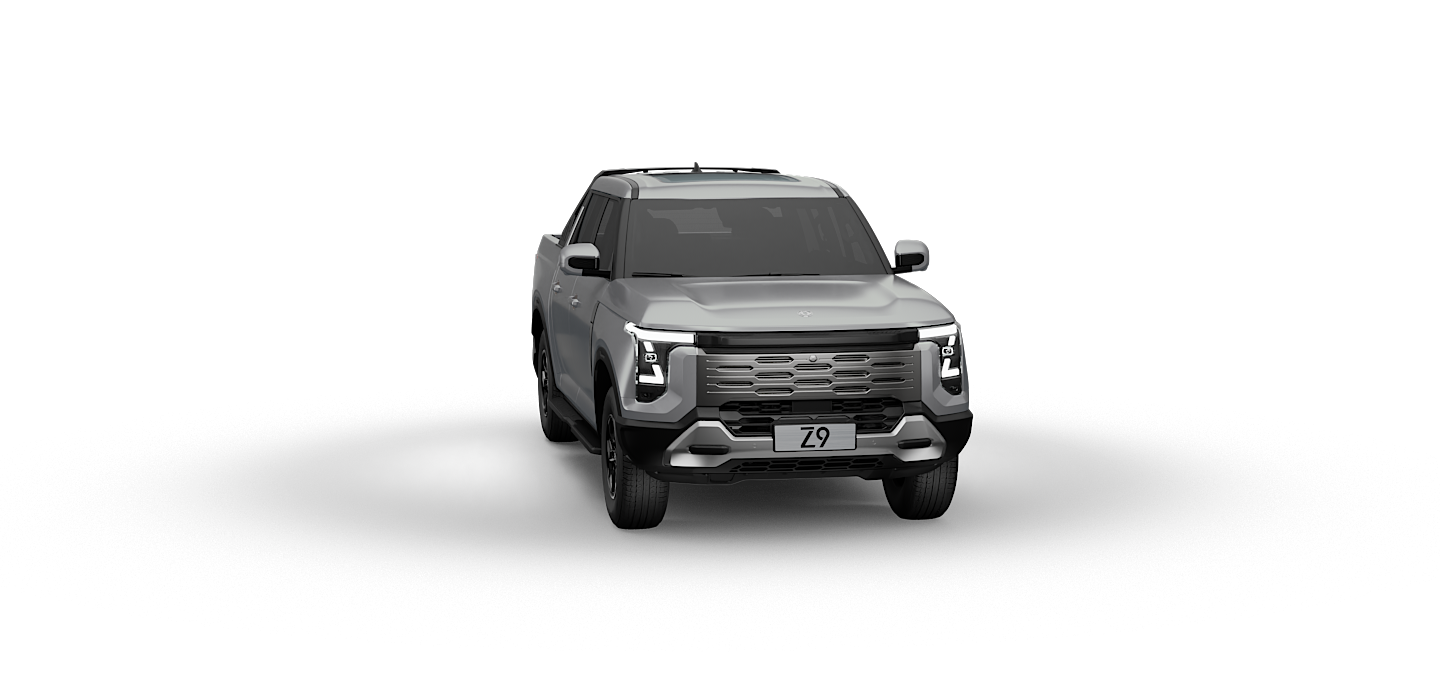

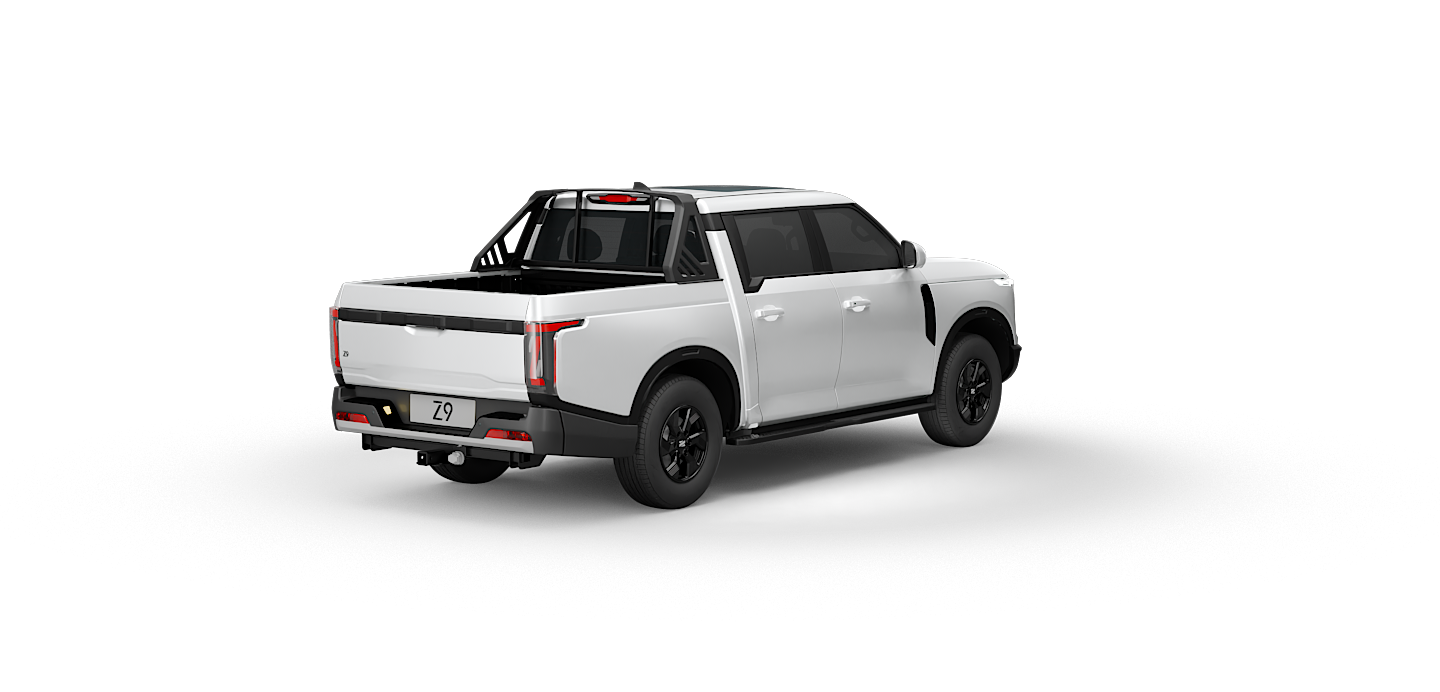

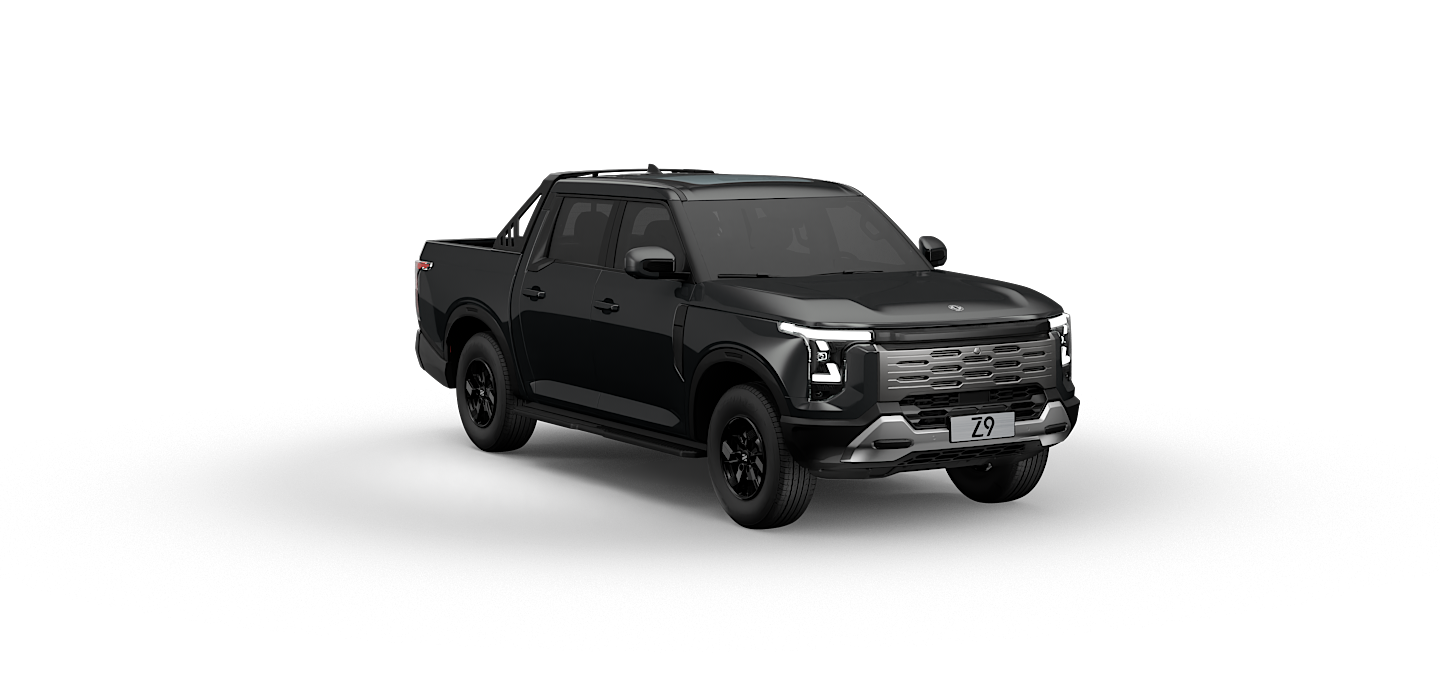

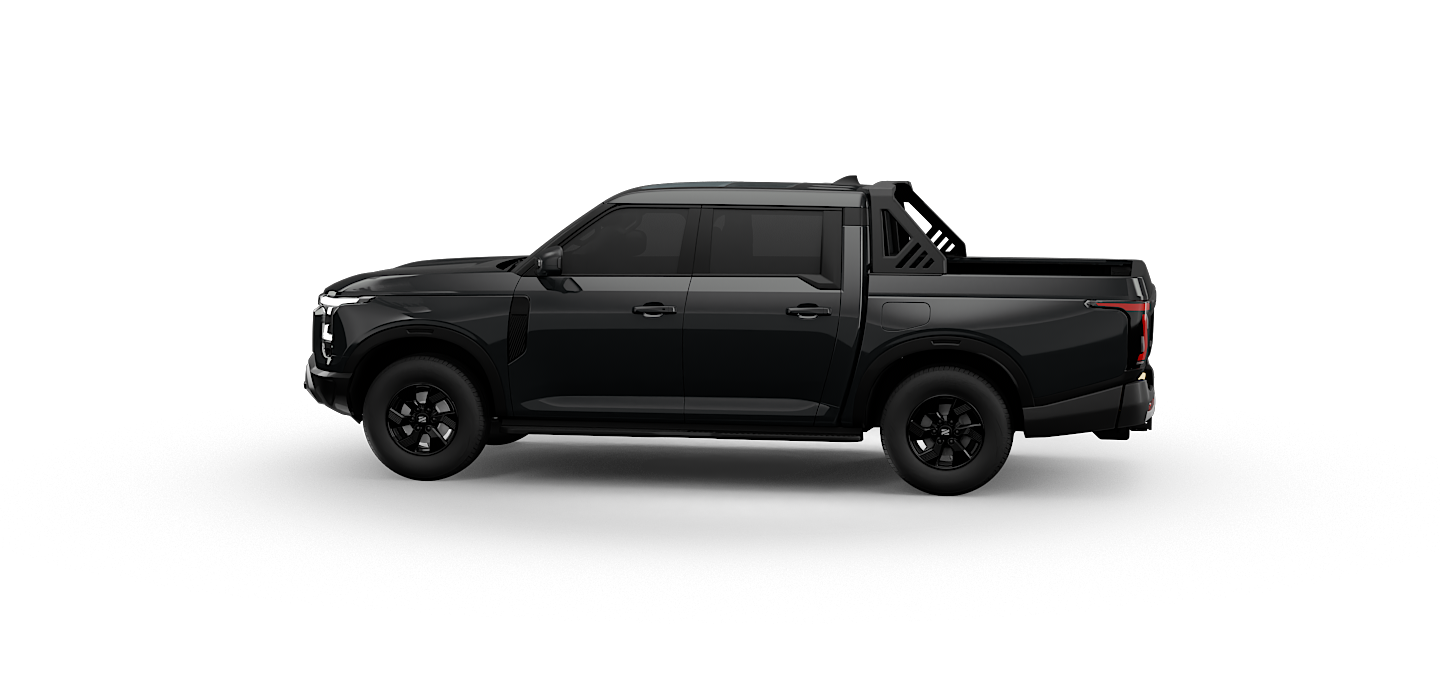

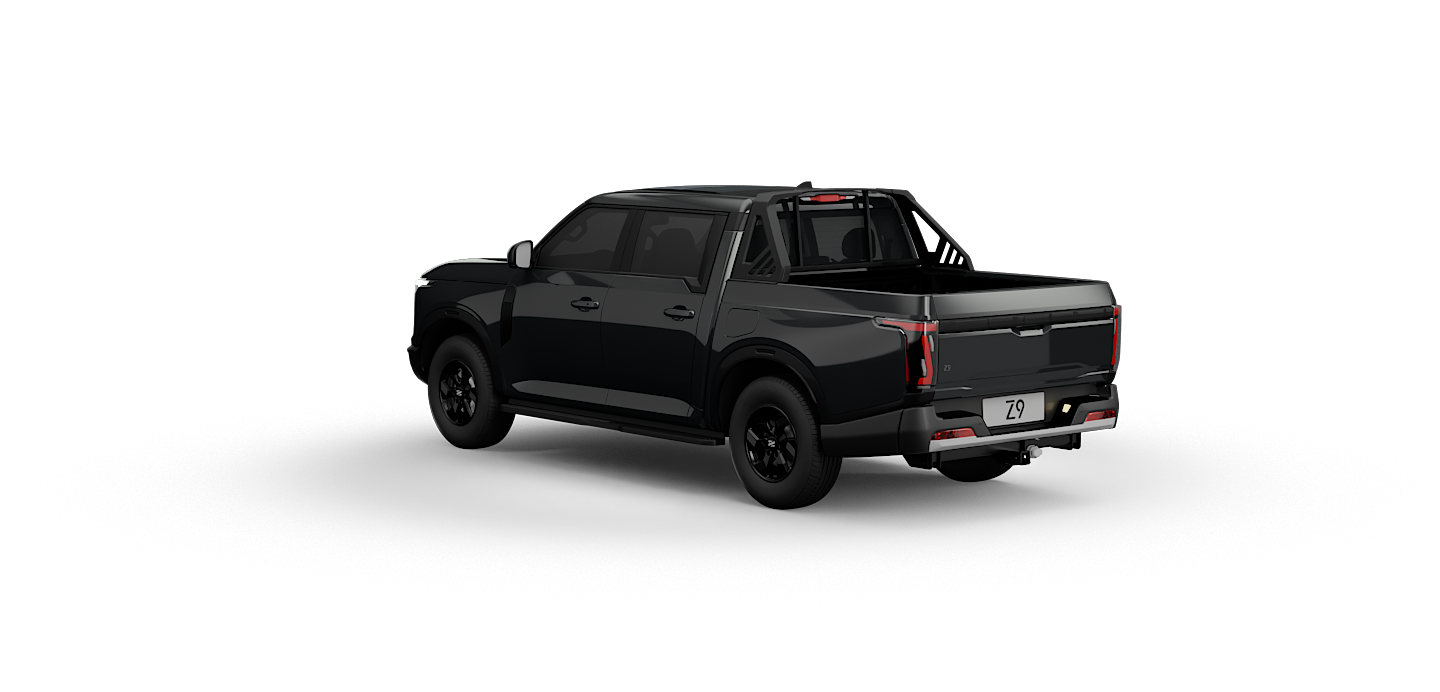

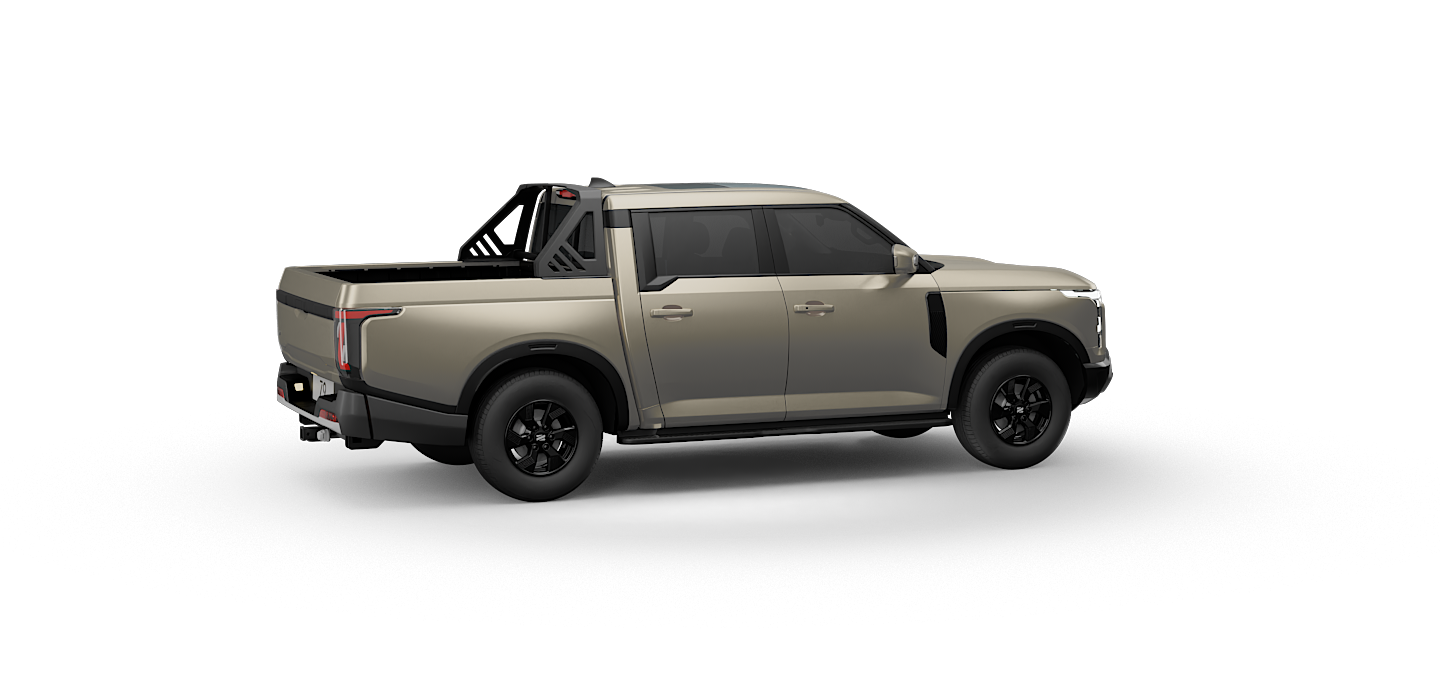

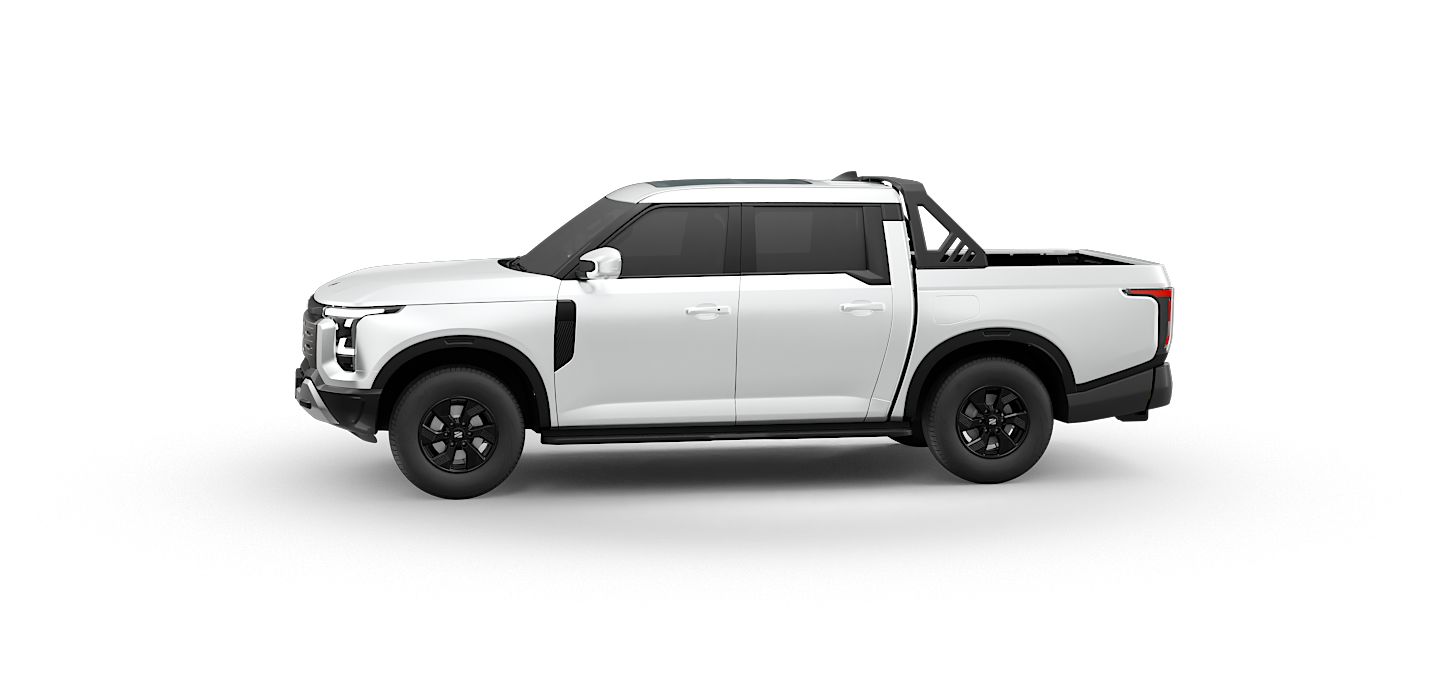

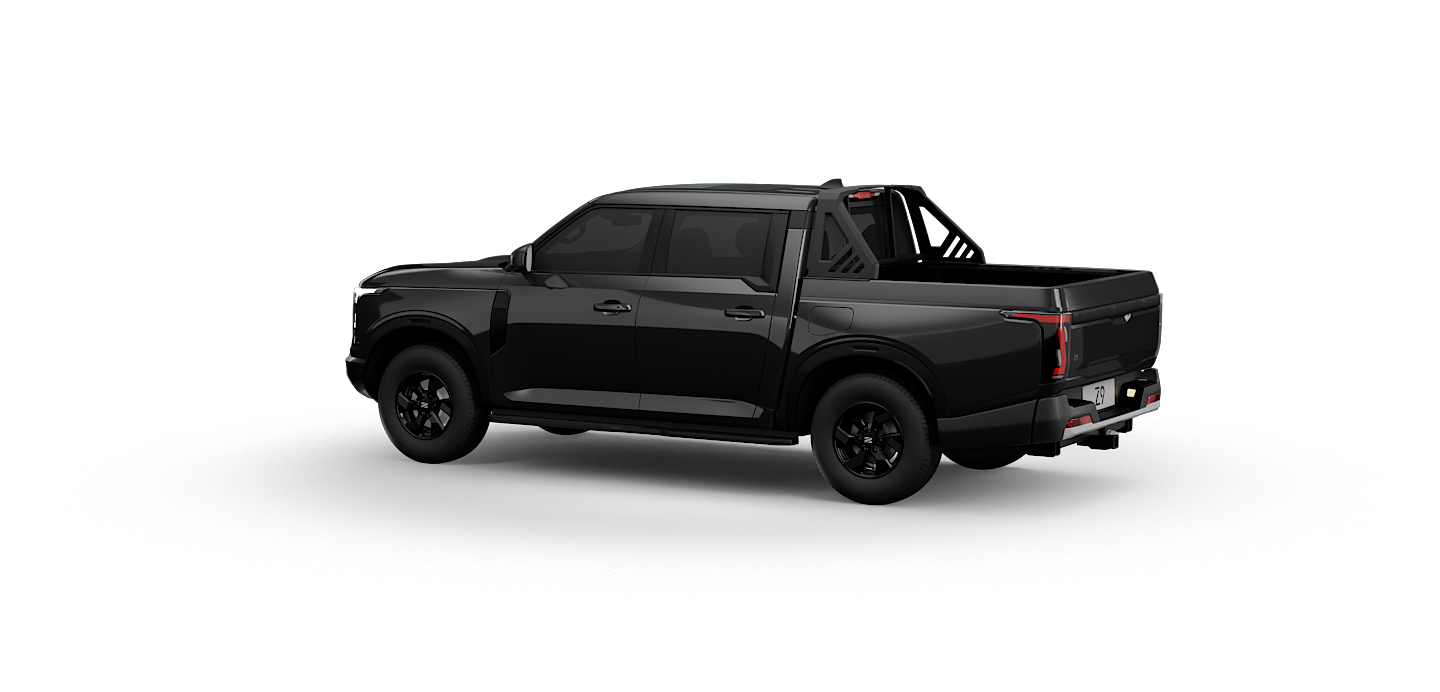

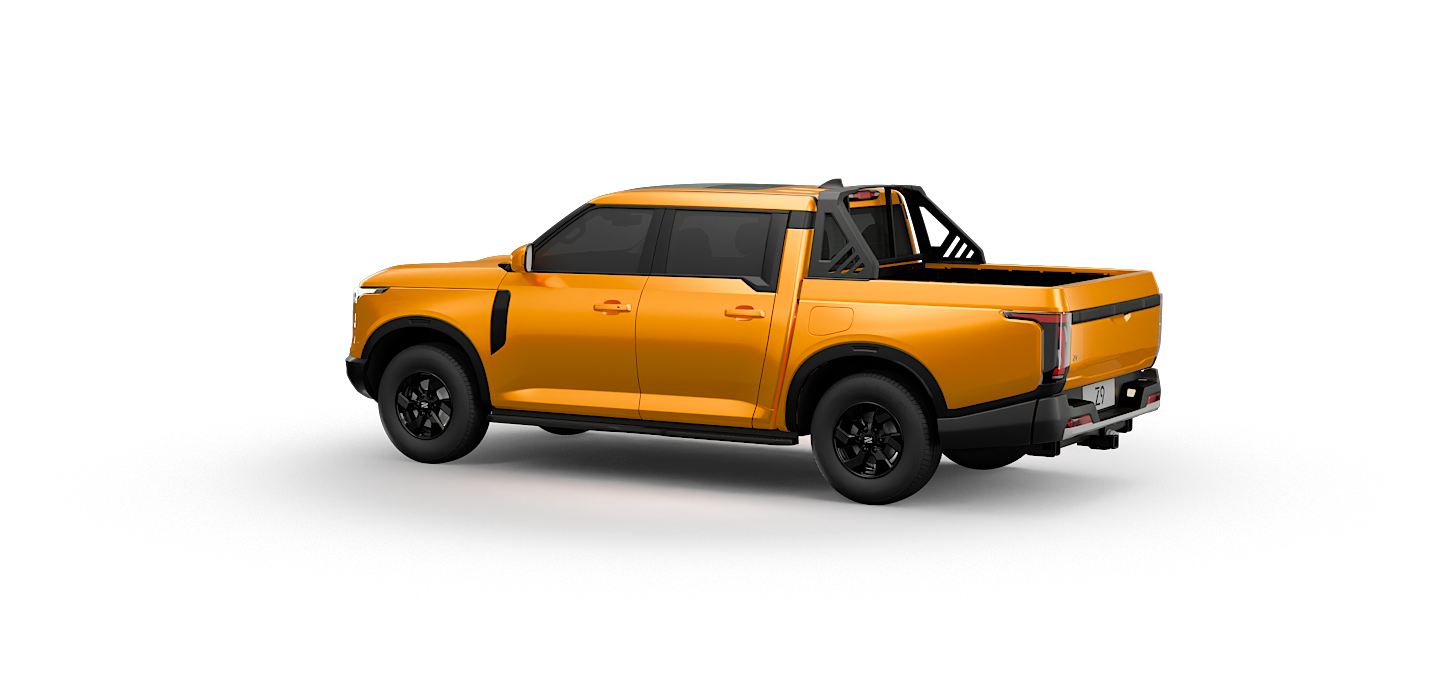

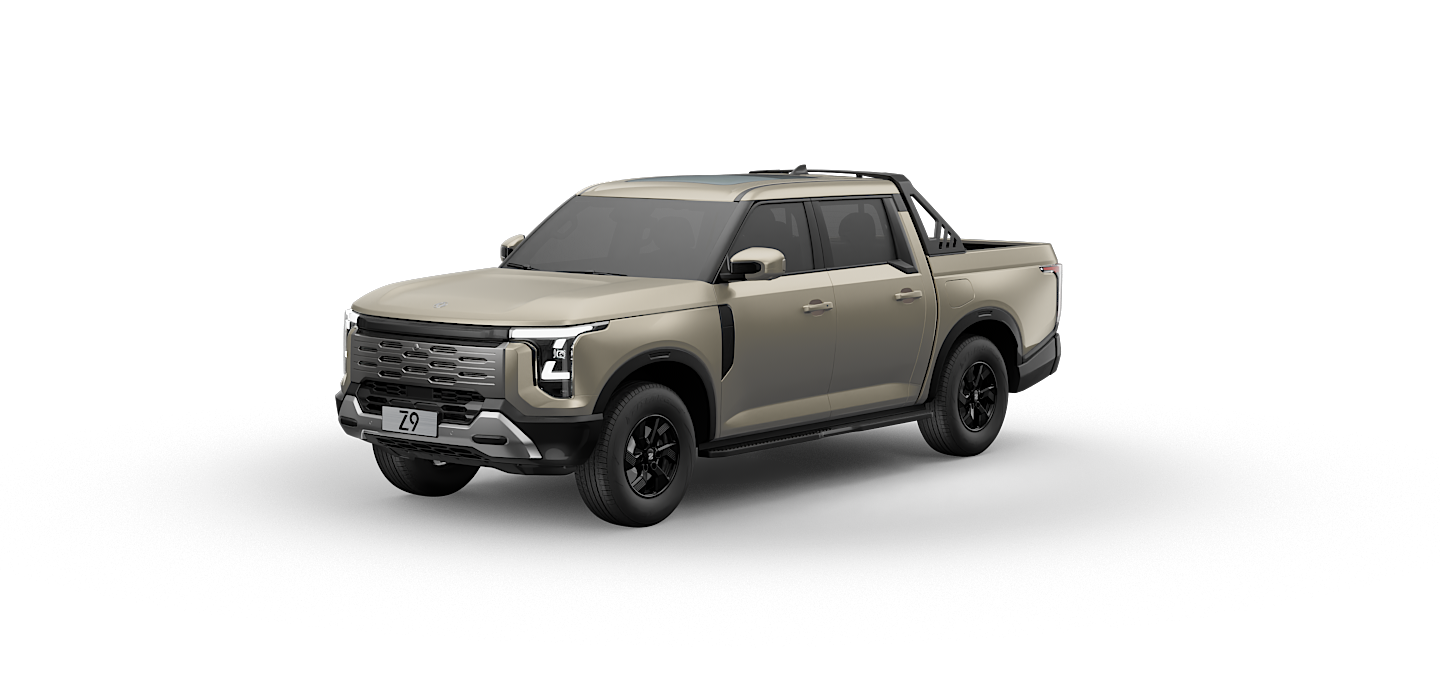

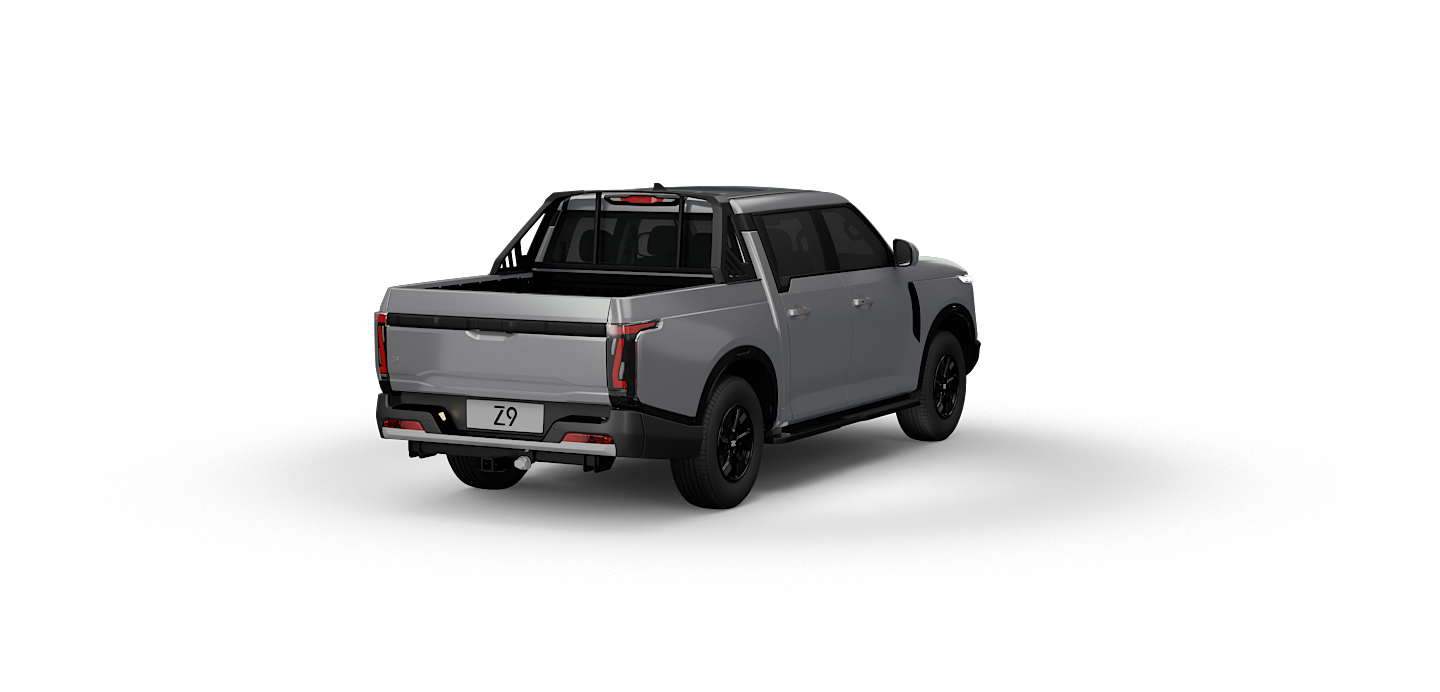

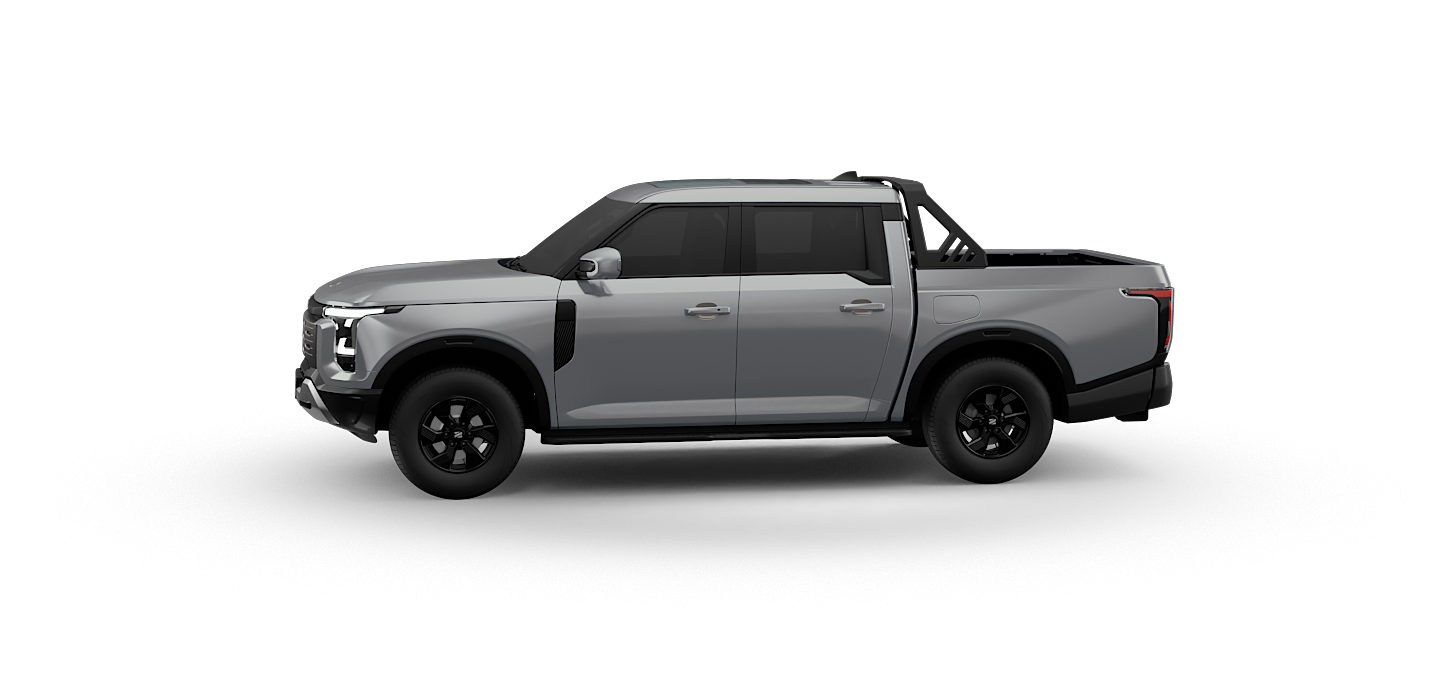

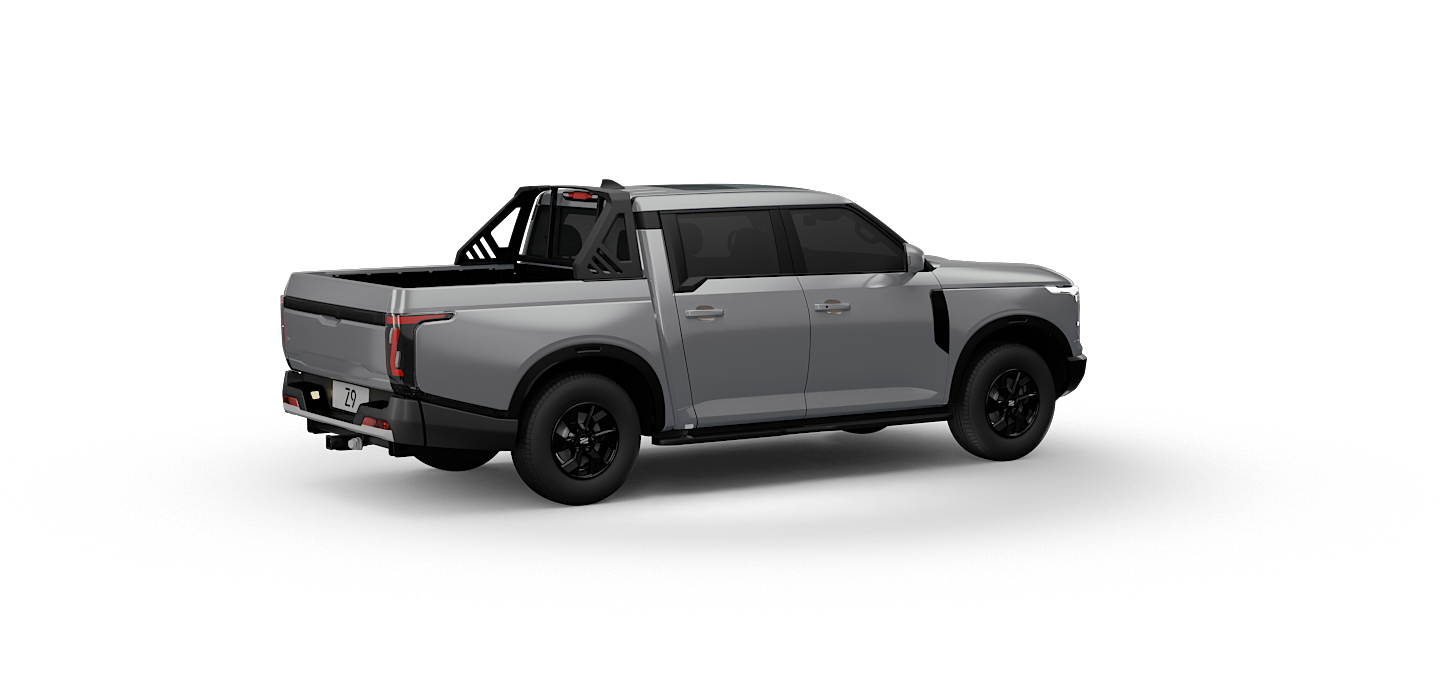

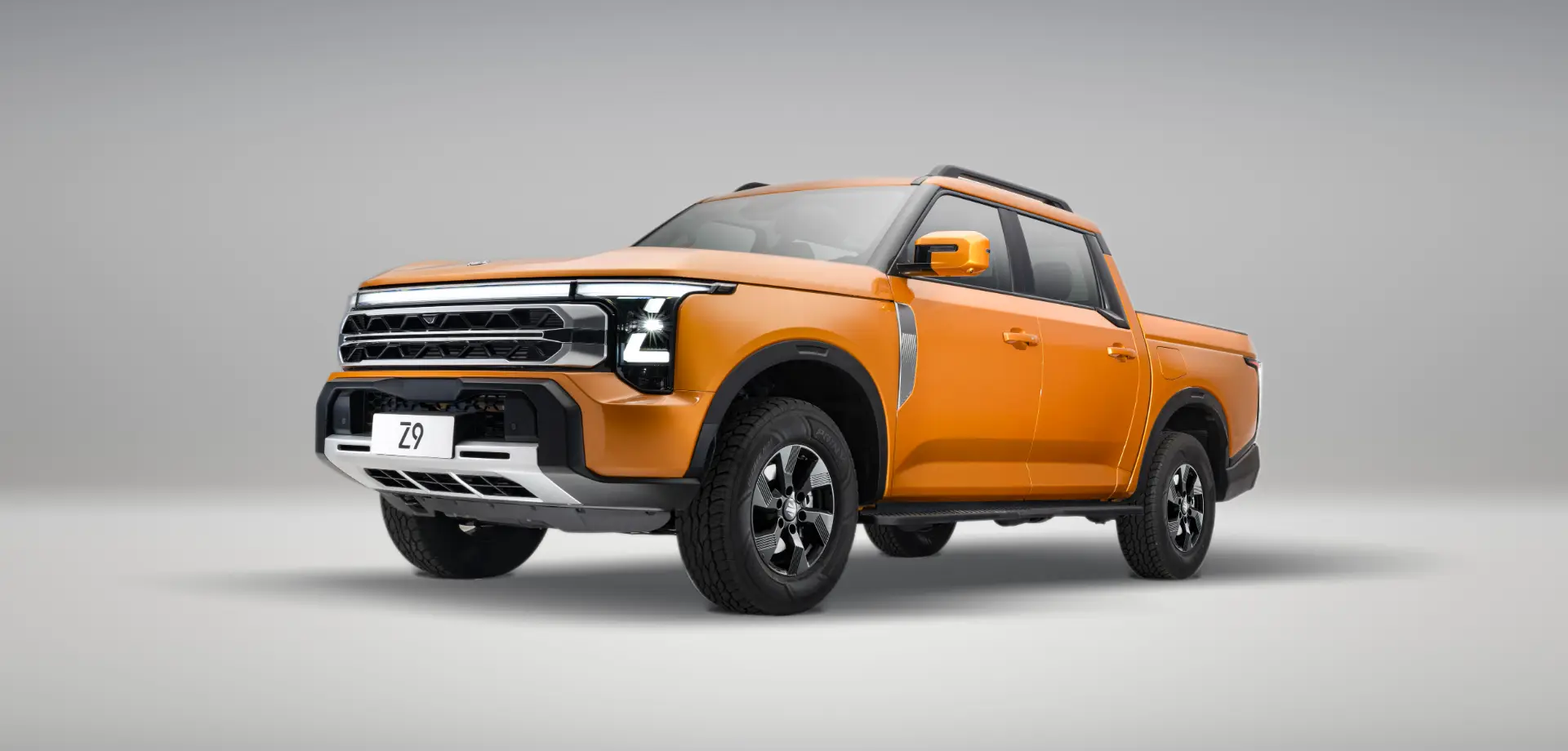

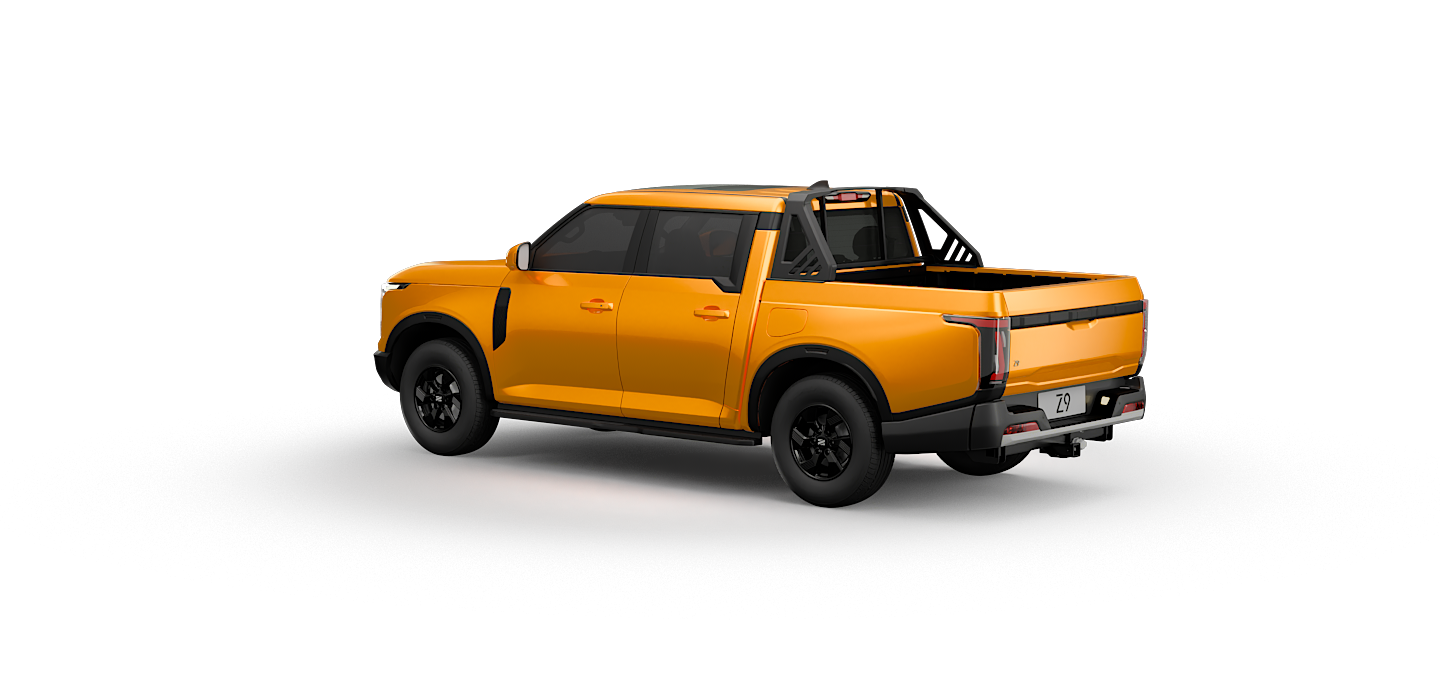

Z9

Dual battery hybrid, over 1000km range
Triple locks + tank turn, conquer all terrains
L2+ smart driving, OTA upgrade ready

Z9

FEATURES
MODEL PARAMETERS

GET A QUOTE

FEATURES

MODEL PARAMETERS

Maximum Torque (N·m)

Maximum Power (kW)

Comprehensive Driving Range (km)

Ground Clearance (mm)

Minimum Turning Diameter (m)

The Road to Conquest Never Ends

			Passenger version				Commercial version
		Level	Gasoline		Diesel		Diesel			Gasoline
		Level	STD	STD	STD	STD	STD	STD	STD	STD	STD
		L×W×H (mm)	552019601950	552019601950	552019601950	552019601950	552019601950	552019601950	552019601950	552019601950	552019601950
		Wheelbase (mm)	3300	3300	3300	3300	3300	3300	3300	3300	3300
		Track Width (Front/Rear) (mm)	1650	1650	1650	1650	1650	1650	1650	1650	1650
		Cargo Box Dimensions L×W×H (mm)	15201600550	15201600550	15201600550	15201600550	15201600550	15201600550	15201600550	15201600550	15201600550
		Minimum Turning Radius (m)	6.75	6.75	6.75	6.75	6.75	6.75	6.75	6.75	6.75
		Minimum Ground Clearance (mm)	240/224	240/224	240/224	240/224	240/209	240/209	240/209	240/209	240/209
		Gross Vehicle Weight (G.V.W.) (kg)	2870	3005	2870	3105	3250	3380	2920	3145	3055
		Curb weight of the vehicle (kg)	2005	2140	2005	2240	2075	2205	2055	2280	2190
		Payload capacity (kg)	865	865	865	865	1175	1175	865	865	865
		Approach Angle/Departure Angle (°)(unloaded)	31°/26°	31°/26°	31°/26°	31°/26°	31°/26°	31°/26°	31°/26°	31°/26°	31°/26°
		Maximum Gradeability (%)	100%	100%	100%	100%	1	1	1	1	1
		Seating Capacity (persons)	5	5	5	5	5	5	5	5	5
		Fuel Tank Capacity (L)	73	73	73	73	73	73	73	73	73
		Maximum speed (km/h)	160	160	170	170	160	160	160	160	160
Category	Spec point	Detailed Spec	2WD AT	4WD AT	2WD AT	4WD AT	2WD MT	4WD MT	4WD AT	2WD AT	4WD AT
Engine	Engine Type	M9T（400Nm）	-	-	-	-	●	●	●	-	-
		M9T（500Nm）	-	-	●	●	-	-	-	-	-
		4K31（400Nm）	●	●	-	-	-	-	-	●	●
Fuel system	Type of fuel oil	Diesel	-	-	●	●	●	●	●	-	-
Fuel system	Type of fuel oil	Gasoline	●	●	-	-	-	-	-	●	●
Transmission	Manual transmission gear	6MT	-	-	-	-	●	●	-	-	-
	Automatic transmission gear	8AT (standard, economical, sports, snow mode)	●	-	●	-	-	-	●	●	●
		8AT (all terrain mode - without rock)	-	●	-	●	-	-	-	-	-
		8AT (All-Terrain Model - Standard, Economic, Sports, Snow, Desert, Rock, Mud, Expert Model)	-	O	-	O	-	-	-	-	-
		MT gear lever	-	-	-	-	●	●	-	-	-
		AT gear lever	-	-	-	-	-	-	●	●	●
		Gear lever	●	●	●	●	-	-	-	-	-
Drive and suspension	Drive type	2WD	●	-	●	-	●	-	-	●	-
	Drive type	4WD (electronic control)	-	●	-	●	-	●	●	-	●
	Time-sharing four-wheel drive (BW)		-	●	-	●	-	●	●	-	●
	Intelligent 4WD TOD	Time-sharing switching can be realized	-	-	-	-	-	-	-	-	-
	Front suspension type	Double wishbone+stabilizer bar	●	●	●	●	●	●	●	●	●
	Rear suspension type	Plate spring	O	O	O	O	●	●	●	●	●
	Rear suspension type	Five-connecting rod	●	●	●	●	-	-	-	-	-
	Shock absorber	Mangya shock absorber	O	O	O	O	-	-	-	-	-
Brake system	Brake	Four-wheel disc brake	●	●	●	●	●	●	●	●	●
	Hand brake	Electronic hand brake	●	●	●	●	●	●	●	●	●
	Hand brake	AUTOHOLD	●	●	●	●	●	●	●	●	●
Steering	Steering wheel	Foaming	●	●	●	●	●	●	●	●	●
		Leather (ultra-fiber leather+cotton pad)	O	O	O	O	O	O	O	O	O
		Two-way adjustment of steering wheel	-	-	-	-	●	●	●	●	●
		Four-way adjustment of steering wheel	●	●	●	●	-	-	-	-	-
		Multi-function steering wheel (cruise control, audio control, bluetooth telephone, etc.)	●	●	●	●	●	●	●	●	●
	Steering gear	Electronic power assistance	●	●	●	●	-	-	-	●	●
	Steering gear	Electronic power assistance → hydraulic	-	-	-	-	●	●	●	-	-
Wheels and tires	Tire specification	265/65 R18	●	●	●	●	●	●	●	●	●
	Rim of wheel	Steel wheel hub	-	-	-	-	●	●	-	-	●
		Aluminum wheel hub	●	●	●	●	O	O	●	●	●
		Full coat coating	●	●	●	●	-	-	-	-	-
	Off-road tire	AT tire 265/70 R17	-	O	-	O	-	O	O	-	O
	Spare tire	Same as main tire+steel wheel	●	●	●	●	●	●	●	●	●
	Wheel axle head cover		●	●	●	●	●	●	●	●	●
Vehicle doors and door guards	Door guard handrail	Soft pack	●	●	●	●	●	●	●	●	●
	Door guard plate		●	●	●	●	●	●	●	●	●
	Inner door handle		●	●	●	●	●	●	●	●	●
	External door handle	Body in the same color	●	●	●	●	●	●	●	●	●
	Rear Compartment Door Handle		●	●	●	●	●	●	●	●	●
	Front/Rear Door	Storage box+cup holder	●	●	●	●	●	●	●	●	●
	Central control door lock		●	●	●	●	●	●	●	●	●
	Remote door lock		●	●	●	●	●	●	●	●	●
	Child lock	Rear door	●	●	●	●	●	●	●	●	●
	Smart key		●	●	●	●	●	●	●	●	●
	Smart key	Non-sensitive welcome Non-sensitive unlocking	●	●	●	●	-	-	-	-	-
Glass	Front door glass	Green Glass	●	●	●	●	●	●	●	●	●
	Rear door glass	Green Glass	-	-	-	-	●	●	●	●	●
	Rear door glass	Grey glass	●	●	●	●	-	-	-	-	-
	Front windshield glass	Green glass+UV protection+heat protection	●	●	●	●	●	●	●	●	●
	Rear windshield glass	Green glass+defrosting heating	-	-	-	-	●	●	●	●	●
	Rear windshield glass	Grey glass+defrosting heating	●	●	●	●	-	-	-	-	-
	Door window regulator	Driver: one-button lifting+anti-pinch+electric;	●	●	●	●	●	●	●	●	●
Bumper and grille	Front bumper		●	●	●	●	●	●	●	●	●
	Rear bumper		●	●	●	●	●	●	●	●	●
	Front grille		●	●	●	●	●	●	●	●	●
Rearview mirror	Exterior rearview mirror (body color+LED direction lamp)	Electric regulation	-	-	-	-	●	●	●	●	●
	Exterior rearview mirror (body color+LED direction lamp)	Electric adjustment+electric folding+headlamp	●	●	●	●	-	-	-	O	O
	Interior rearview mirror	Manual anti-dazzle	●	●	●	●	●	●	●	●	●
Wiper	Front wiper (boneless)	Induction; High speed, low speed, automatic intermittent adjustable	●	●	●	●	●	●	●	●	●
Sign	Name of vehicle	Z9	●	●	●	●	●	●	●	●	●
Body accessories	Oil filler/urea filler cap	Same side+electric	●	●	●	●	●	●	●	●	●
	Front fender shield of engine	Resin	●	●	●	●	●	●	●	●	●
	Lower fender shield of engine	Metal	●	●	●	●	-	-	-	●	●
	Gearbox lower fender shield	Resin	-	-	-	-	-	-	●	●	●
	Side pedal plate	Fixed	O	O	O	O	O	O	●	●	●
	Roof rack	Longitudinal rail+aluminum alloy	O	O	O	O	O	O	O	O	O
	Wheel housing	Front/Rear	●	●	●	●	-	-	-	-	-
	Front door trim strip	One for each side	●	●	●	●	-	-	-	-	-
	Antenna Types	Shark fin	●	●	●	●	●	●	●	●	●
	Front trailer hitch	One	●	●	●	●	●	●	●	●	●
	Rear traction device		O	O	O	O	-	-	O	O	O
	Panoramic sunroof	Electric+electric sunshade curtain	O	O	O	O	-	-	-	-	O
	Anti-roll frame	Standard+Metal	O	O	O	O	O	O	O	O	O
	Engine hood support	Pneumatic support	●	●	●	●	●	●	●	●	●
	Engine hood		●	●	●	●	-	-	-	-	-
	Engine hood		●	●	●	●	-	-	●	●	●
	Wheel trim		●	●	●	●	●	●	●	●	●
	Rear trailer hitch	One	●	●	●	●	-	-	-	-	-
	Outer rope hook	Four	-	-	-	-	O	O	O	O	O
	Inner rope hook	Four	●	●	●	●	●	●	●	●	●
	Sloping down of rear compartment door		●	●	●	●	●	●	●	●	●
	Inboard storage box of container side plate - one side	Elastic fixing rope for storing fine parts	●	●	●	●	-	-	-	-	-
	Flat box cover (electric) combination	Container integration+sealing strip of rear container door+electric pedal of rear container	O	O	O	O	-	-	-	-	-
	Central lock of rear compartment door		●	●	●	●	-	-	-	-	-
	Rear compartment shield	Painting and spraying	●	●	●	●	●	●	●	●	●
	Cargo box saver	Mounted container kit	-	-	-	-	O	O	O	O	O
lamp	Headlamp (s)	All LEDs	●	●	●	●	●	●	●	●	●
		Headlight automatic lighting (regulation)+headlamp delay off+ultra-low beam mode	●	●	●	●	●	●	●	●	●
		Electric height adjustable	●	●	●	●	●	●	●	●	●
		Direction lamp realizes flowing water	●	●	●	●	-	-	-	-	-
		Headlight welcome	●	●	●	●	O	O	O	-	O
	Through lamp		O	O	O	O	-	-	-	-	-
	Front fog lamp	LED+Steering Assist	●	●	●	●	O	O	O	-	O
	Rear fog lamp + rear reversing lamp	Double fog and double reversing	●	●	●	●	●	●	●	●	●
	High brake lamp (LED)		●	●	●	●	●	●	●	●	●
	Rear combination lamp	LED	●	●	●	●	●	●	●	●	●
	LED daytime running light	Integrated inside the headlights	●	●	●	●	●	●	●	●	●
	License plate lamp	Halogens	●	●	●	●	●	●	●	●	●
	Rear box lamp	Integrated in high brake lamp	●	●	●	●	●	●	●	●	●

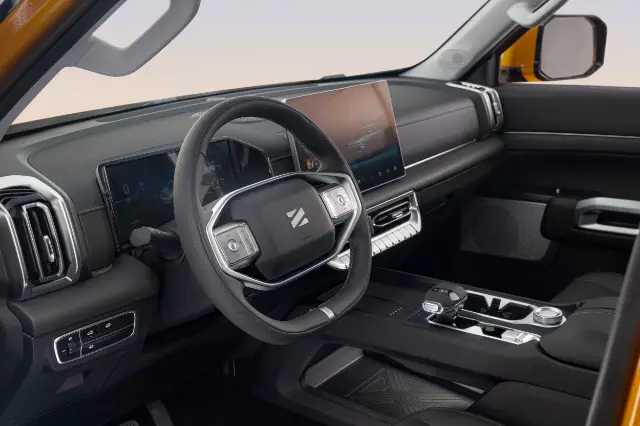

Instrument	LCD meter (10 inches)		●	●	●	●	●	●	●	●	●
	Multi-screen linkage		●	●	●	●	-	-	-	-	-
	Speedometer		●	●	●	●	●	●	●	●	●
	Tachometer		●	●	●	●	●	●	●	●	●
	Indications&Alarms	Water temperature warning lamp	●	●	●	●	●	●	●	●	●
		Warning lamp for door unclosed+door status display	●	●	●	●	●	●	●	●	●
		Oil volume warning lamp	●	●	●	●	●	●	●	●	●
		Engine hood unclosed reminder+status display	●	●	●	●	●	●	●	●	●
		Oil pressure warning lamp	●	●	●	●	●	●	●	●	●
		Seat belt not fastened alarm (driver side+front passenger side)	●	●	●	●	●	●	●	●	●
Audio&Video	12.8-inch screen	Bluetooth+digital radio function (DAB)+WIFI module+OBD display, etc	●	●	●	●	-	-	-	-	-
	Audio system	Six (two high+two low+two full frequency)	●	●	●	●	-	-	-	-	-
	Audio system	Ten (four high+four low+one middle+one subwoofer)+external power amplifier	-	-	-	-	-	-	-	-	-
	12-inch screen	Bluetooth+WIFI module+language (Spanish/English)	-	-	-	-	●	●	●	●	●
	radio	AM+FM	-	-	-	-	●	●	●	●	●
	DAB		-	-	-	-	-	-	-	-	-
	Mobile phone interconnection	IOS+Android	●	●	●	●	●	●	●	●	●
	Sound system	Four (two low+two full frequency)	-	-	-	-	●	●	●	●	●
Air conditioning	Automatic air conditioning	Single temperature zone	●	●	●	●	●	●	●	●	●
		Dual temperature zone	-	-	-	-	-	-	-	-	-
		Vehicle-mounted PM2.5 filtering	●	●	●	●	●	●	●	●	●
	Rear row	Air outlet: face blowing	●	●	●	●	O	O	O	O	O
	Rear row	Air outlet: foot blowing	-	-	-	-	-	-	-	-	-
Electrical accessories	12V power supply	Front row	●	●	●	●	●	●	●	●	●
	Wireless mobile phone charging	Charging power 50W	●	●	●	●	-	-	-	-	-
	Type-C interface/USB interface		●	●	●	●	●	●	●	●	●
Interior	Sunvisor	Driver: sunvisor, soft PVC, cosmetic mirror	●	●	●	●	-	-	-	-	-
		Driver: soft PVC+cosmetic mirror+warning pattern	-	-	-	-	●	●	●	●	●
		Assistant driver: sunvisor, soft PVC, cosmetic mirror	●	●	●	●	●	●	●	●	●
	Interior basic color matching	A (shallow upper part and deep lower part)	-	-	-	-	●	●	●	●	●
	Interior basic color matching (two color matching in parallel)	Flame not extinguished (code: B）	●	●	●	●	-	-	-	-	-
		Nephelia Shinawatra (code: G）	O	O	O	O	-	-	-	-	-
	Central storage box armrest	Soft pack	●	●	●	●	●	●	●	●	●
	Floor	Short pile carpet	●	●	●	●	●	●	●	●	●
	Roof lining	Non Woven Fabrics	-	-	-	-	●	●	●	●	●
	Roof lining	Knitwear knitting cloth	●	●	●	●	-	-	-	-	-
	Reading lamp		●	●	●	●	●	●	●	●	●
	Glasses case + reading lamp + interior light	Interior lamp: one lamp on both sides of the rear row+touch switch	●	●	●	●	-	-	-	-	O
	Glove box		●	●	●	●	●	●	●	●	●
	Interior auxiliary handle	One assistant driver+one on the left and right of the second row (the roof can be folded)	●	●	●	●	●	●	●	●	●
	Entry auxiliary handle		●	●	●	●	●	●	●	●	●
	Coat and hat hook	Two front and two rear (two on the front passenger side of the central console)	●	●	●	●	●	●	●	●	●
	Cup holder	Two	●	●	●	●	●	●	●	●	●
Seats and seat belts	Seat fabric	PVC	●	●	●	●	-	-	-	-	-
		Imitation of leather	-	-	-	-	O	O	●	●	●
		Fabric	-	-	-	-	●	●	●	●	●
	Driver seat adjustment	6-way manual adjustment	●	●	●	●	●	●	●	●	●
	Driver seat adjustment	6-way power-adjustable seat + 3-level ventilation and heating function	O	O	O	O	O	O	O	O	O
	Front passenger seat adjustment	4-way manual adjustment	●	●	●	●	●	●	●	●	●
		4-way power-adjustable seat + 3-level ventilation function	O	O	O	O	O	O	O	O	O
	Front headrest type	Two, independent, adjustable up and down	●	●	●	●	●	●	●	●	●
	Second row head restraint type	Two, independent, adjustable up and down	-	-	-	-	-	-	-	-	-
	Second row head restraint type	Three, independent, adjustable up and down	●	●	●	●	●	●	●	●	●
	Second row seat type	Separation of 4/6	●	●	●	●	●	●	●	●	●
		Three-point+height adjustment	●	●	●	●	●	●	●	●	●
	Second-row safety belt	Full three-point seat belt	●	●	●	●	●	●	●	●	●
	The rear seat backrest is adjustable.	Storage box	-	-	-	-	-	-	-	-	-
	The rear seat backrest is adjustable.	Seat cushion reversible	●	●	●	●	●	●	●	●	●
	Interface of child seat	ISOfix	●	●	●	●	●	●	●	●	●
Safety	Air bag	Driver+assistant driver	●	●	●	●	●	●	●	●	●
		Side air bag	O	O	O	O	O	O	O	O	O
		Side air curtain	O	O	O	O	-	-	-	-	O
	ESC	ABS+EBD+TCS+VDC+HBA+HHC+RMI+HAZ+HDC	●	●	●	●	●	●	●	●	●
	Tire pressure monitoring		●	●	●	●	●	●	●	●	●
	Front radar		O	O	O	O
	Reversing radar		●	●	●	●	●	●	●	●	●
	Reversing video camera		●	●	●	●	●	●	●	●	●
	Image 540		O	O	O	O	-	-	-	O	O
	Cruise control		●	●	●	●	●	●	●	●	●
	Off-road cruise	Crawl mode	-	●	-	●	-	-	-	-	-
	Tank turning around		-	●	-	●	-	-	-	-	-
	Transfer case	Central differential velocity	-	●	-	●	-	●	●	-	●
	Rear axle differential lock		-	O	-	O	-	O	O	-	O
	Sand area kit		-	O	-	O	O	O	O	O	O
	Throttle pedal	Suspension type	●	●	●	●	●	●	●	●	●
	Reserved retrofit switch	Four	●	●	●	●	-	-	-	-	-
EXP Needs	BOS brake priority system		●	●	●	●	●	●	●	●	●
Note:“●”Standard；“○”optional；“－”unavailable；We reserve the right to change or discontinue the specifications and configurations. If there is any discrepancy between the specification information in the form and that of the actual vehicle, the actual vehicle shall prevail.

			Passenger version				Commercial version
		Level	Gasoline		Diesel		Diesel			Gasoline
		Level	STD	STD	STD	STD	STD	STD	STD	STD	STD
		L×W×H (mm)	552019601950	552019601950	552019601950	552019601950	552019601950	552019601950	552019601950	552019601950	552019601950
		Wheelbase (mm)	3300	3300	3300	3300	3300	3300	3300	3300	3300
		Track Width (Front/Rear) (mm)	1650	1650	1650	1650	1650	1650	1650	1650	1650
		Cargo Box Dimensions L×W×H (mm)	15201600550	15201600550	15201600550	15201600550	15201600550	15201600550	15201600550	15201600550	15201600550
		Minimum Turning Radius (m)	6.75	6.75	6.75	6.75	6.75	6.75	6.75	6.75	6.75
		Minimum Ground Clearance (mm)	240/224	240/224	240/224	240/224	240/209	240/209	240/209	240/209	240/209
		Gross Vehicle Weight (G.V.W.) (kg)	2870	3005	2870	3105	3250	3380	2920	3145	3055
		Curb weight of the vehicle (kg)	2005	2140	2005	2240	2075	2205	2055	2280	2190
		Payload capacity (kg)	865	865	865	865	1175	1175	865	865	865
		Approach Angle/Departure Angle (°)(unloaded)	31°/26°	31°/26°	31°/26°	31°/26°	31°/26°	31°/26°	31°/26°	31°/26°	31°/26°
		Maximum Gradeability (%)	100%	100%	100%	100%	1	1	1	1	1
		Seating Capacity (persons)	5	5	5	5	5	5	5	5	5
		Fuel Tank Capacity (L)	73	73	73	73	73	73	73	73	73
		Maximum speed (km/h)	160	160	170	170	160	160	160	160	160
Category	Spec point	Detailed Spec	2WD AT	4WD AT	2WD AT	4WD AT	2WD MT	4WD MT	4WD AT	2WD AT	4WD AT
Engine	Engine Type	M9T（400Nm）	–	–	–	–	●	●	●	–	–
		M9T（500Nm）	–	–	●	●	–	–	–	–	–
		4K31（400Nm）	●	●	–	–	–	–	–	●	●
Fuel system	Type of fuel oil	Diesel	–	–	●	●	●	●	●	–	–
Fuel system	Type of fuel oil	Gasoline	●	●	–	–	–	–	–	●	●
Transmission	Manual transmission gear	6MT	–	–	–	–	●	●	–	–	–
	Automatic transmission gear	8AT (standard, economical, sports, snow mode)	●	–	●	–	–	–	●	●	●
		8AT (all terrain mode – without rock)	–	●	–	●	–	–	–	–	–
		8AT (All-Terrain Model – Standard, Economic, Sports, Snow, Desert, Rock, Mud, Expert Model)	–	O	–	O	–	–	–	–	–
		MT gear lever	–	–	–	–	●	●	–	–	–
		AT gear lever	–	–	–	–	–	–	●	●	●
		Gear lever	●	●	●	●	–	–	–	–	–
Drive and suspension	Drive type	2WD	●	–	●	–	●	–	–	●	–
	Drive type	4WD (electronic control)	–	●	–	●	–	●	●	–	●
	Time-sharing four-wheel drive (BW)		–	●	–	●	–	●	●	–	●
	Intelligent 4WD TOD	Time-sharing switching can be realized	–	–	–	–	–	–	–	–	–
	Front suspension type	Double wishbone+stabilizer bar	●	●	●	●	●	●	●	●	●
	Rear suspension type	Plate spring	O	O	O	O	●	●	●	●	●
	Rear suspension type	Five-connecting rod	●	●	●	●	–	–	–	–	–
	Shock absorber	Mangya shock absorber	O	O	O	O	–	–	–	–	–
Brake system	Brake	Four-wheel disc brake	●	●	●	●	●	●	●	●	●
	Hand brake	Electronic hand brake	●	●	●	●	●	●	●	●	●
	Hand brake	AUTOHOLD	●	●	●	●	●	●	●	●	●
Steering	Steering wheel	Foaming	●	●	●	●	●	●	●	●	●
		Leather (ultra-fiber leather+cotton pad)	O	O	O	O	O	O	O	O	O
		Two-way adjustment of steering wheel	–	–	–	–	●	●	●	●	●
		Four-way adjustment of steering wheel	●	●	●	●	–	–	–	–	–
		Multi-function steering wheel (cruise control, audio control, bluetooth telephone, etc.)	●	●	●	●	●	●	●	●	●
	Steering gear	Electronic power assistance	●	●	●	●	–	–	–	●	●
	Steering gear	Electronic power assistance → hydraulic	–	–	–	–	●	●	●	–	–
Wheels and tires	Tire specification	265/65 R18	●	●	●	●	●	●	●	●	●
	Rim of wheel	Steel wheel hub	–	–	–	–	●	●	–	–	●
		Aluminum wheel hub	●	●	●	●	O	O	●	●	●
		Full coat coating	●	●	●	●	–	–	–	–	–
	Off-road tire	AT tire 265/70 R17	–	O	–	O	–	O	O	–	O
	Spare tire	Same as main tire+steel wheel	●	●	●	●	●	●	●	●	●
	Wheel axle head cover		●	●	●	●	●	●	●	●	●
Vehicle doors and door guards	Door guard handrail	Soft pack	●	●	●	●	●	●	●	●	●
	Door guard plate		●	●	●	●	●	●	●	●	●
	Inner door handle		●	●	●	●	●	●	●	●	●
	External door handle	Body in the same color	●	●	●	●	●	●	●	●	●
	Rear Compartment Door Handle		●	●	●	●	●	●	●	●	●
	Front/Rear Door	Storage box+cup holder	●	●	●	●	●	●	●	●	●
	Central control door lock		●	●	●	●	●	●	●	●	●
	Remote door lock		●	●	●	●	●	●	●	●	●
	Child lock	Rear door	●	●	●	●	●	●	●	●	●
	Smart key		●	●	●	●	●	●	●	●	●
	Smart key	Non-sensitive welcome Non-sensitive unlocking	●	●	●	●	–	–	–	–	–
Glass	Front door glass	Green Glass	●	●	●	●	●	●	●	●	●
	Rear door glass	Green Glass	–	–	–	–	●	●	●	●	●
	Rear door glass	Grey glass	●	●	●	●	–	–	–	–	–
	Front windshield glass	Green glass+UV protection+heat protection	●	●	●	●	●	●	●	●	●
	Rear windshield glass	Green glass+defrosting heating	–	–	–	–	●	●	●	●	●
	Rear windshield glass	Grey glass+defrosting heating	●	●	●	●	–	–	–	–	–
	Door window regulator	Driver: one-button lifting+anti-pinch+electric;	●	●	●	●	●	●	●	●	●
Bumper and grille	Front bumper		●	●	●	●	●	●	●	●	●
	Rear bumper		●	●	●	●	●	●	●	●	●
	Front grille		●	●	●	●	●	●	●	●	●
Rearview mirror	Exterior rearview mirror (body color+LED direction lamp)	Electric regulation	–	–	–	–	●	●	●	●	●
	Exterior rearview mirror (body color+LED direction lamp)	Electric adjustment+electric folding+headlamp	●	●	●	●	–	–	–	O	O
	Interior rearview mirror	Manual anti-dazzle	●	●	●	●	●	●	●	●	●
Wiper	Front wiper (boneless)	Induction; High speed, low speed, automatic intermittent adjustable	●	●	●	●	●	●	●	●	●

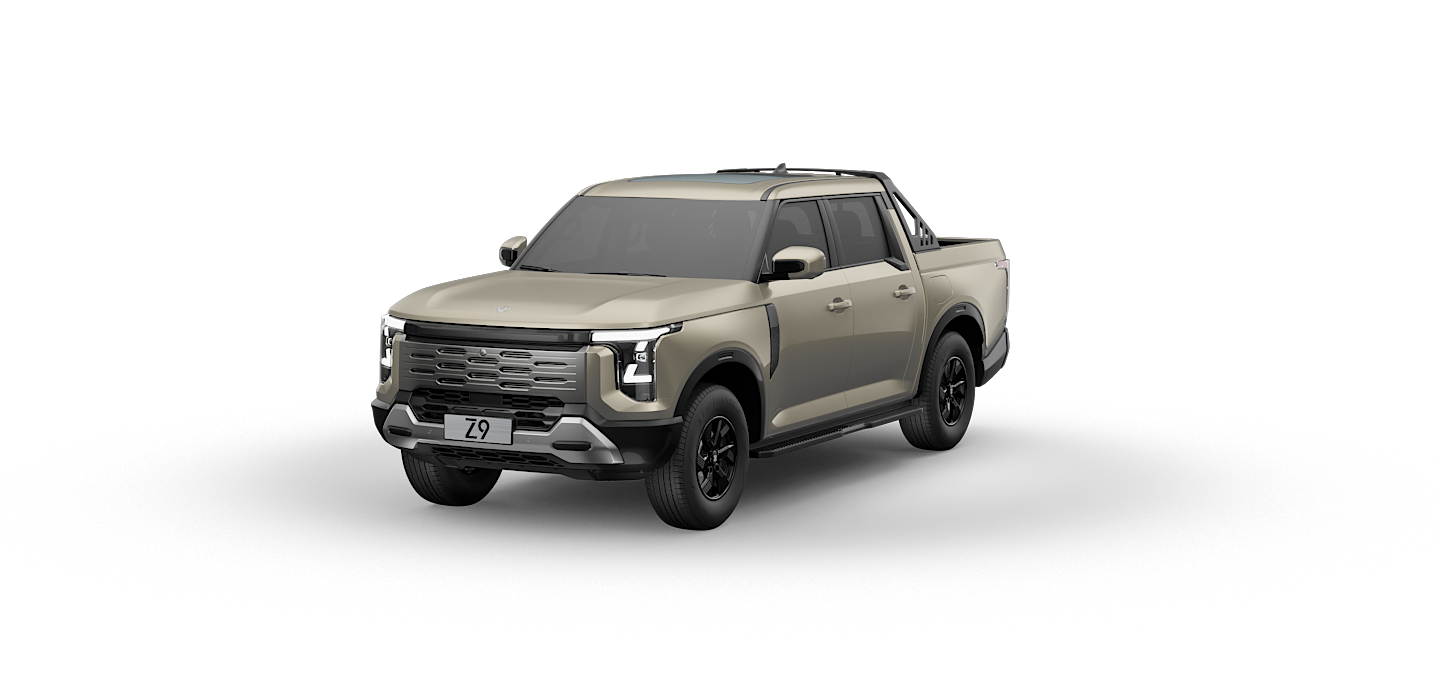

Sign	Name of vehicle	Z9	●	●	●	●	●	●	●	●	●
Body accessories	Oil filler/urea filler cap	Same side+electric	●	●	●	●	●	●	●	●	●
	Front fender shield of engine	Resin	●	●	●	●	●	●	●	●	●
	Lower fender shield of engine	Metal	●	●	●	●	–	–	–	●	●
	Gearbox lower fender shield	Resin	–	–	–	–	–	–	●	●	●
	Side pedal plate	Fixed	O	O	O	O	O	O	●	●	●
	Roof rack	Longitudinal rail+aluminum alloy	O	O	O	O	O	O	O	O	O
	Wheel housing	Front/Rear	●	●	●	●	–	–	–	–	–
	Front door trim strip	One for each side	●	●	●	●	–	–	–	–	–
	Antenna Types	Shark fin	●	●	●	●	●	●	●	●	●
	Front trailer hitch	One	●	●	●	●	●	●	●	●	●
	Rear traction device		O	O	O	O	–	–	O	O	O
	Panoramic sunroof	Electric+electric sunshade curtain	O	O	O	O	–	–	–	–	O
	Anti-roll frame	Standard+Metal	O	O	O	O	O	O	O	O	O
	Engine hood support	Pneumatic support	●	●	●	●	●	●	●	●	●
	Engine hood		●	●	●	●	–	–	–	–	–
	Engine hood		●	●	●	●	–	–	●	●	●
	Wheel trim		●	●	●	●	●	●	●	●	●
	Rear trailer hitch	One	●	●	●	●	–	–	–	–	–
	Outer rope hook	Four	–	–	–	–	O	O	O	O	O
	Inner rope hook	Four	●	●	●	●	●	●	●	●	●
	Sloping down of rear compartment door		●	●	●	●	●	●	●	●	●
	Inboard storage box of container side plate – one side	Elastic fixing rope for storing fine parts	●	●	●	●	–	–	–	–	–
	Flat box cover (electric) combination	Container integration+sealing strip of rear container door+electric pedal of rear container	O	O	O	O	–	–	–	–	–
	Central lock of rear compartment door		●	●	●	●	–	–	–	–	–
	Rear compartment shield	Painting and spraying	●	●	●	●	●	●	●	●	●
	Cargo box saver	Mounted container kit	–	–	–	–	O	O	O	O	O
lamp	Headlamp (s)	All LEDs	●	●	●	●	●	●	●	●	●
		Headlight automatic lighting (regulation)+headlamp delay off+ultra-low beam mode	●	●	●	●	●	●	●	●	●
		Electric height adjustable	●	●	●	●	●	●	●	●	●
		Direction lamp realizes flowing water	●	●	●	●	–	–	–	–	–
		Headlight welcome	●	●	●	●	O	O	O	–	O
	Through lamp		O	O	O	O	–	–	–	–	–
	Front fog lamp	LED+Steering Assist	●	●	●	●	O	O	O	–	O
	Rear fog lamp + rear reversing lamp	Double fog and double reversing	●	●	●	●	●	●	●	●	●
	High brake lamp (LED)		●	●	●	●	●	●	●	●	●
	Rear combination lamp	LED	●	●	●	●	●	●	●	●	●
	LED daytime running light	Integrated inside the headlights	●	●	●	●	●	●	●	●	●
	License plate lamp	Halogens	●	●	●	●	●	●	●	●	●
	Rear box lamp	Integrated in high brake lamp	●	●	●	●	●	●	●	●	●
Instrument	LCD meter (10 inches)		●	●	●	●	●	●	●	●	●
	Multi-screen linkage		●	●	●	●	–	–	–	–	–
	Speedometer		●	●	●	●	●	●	●	●	●
	Tachometer		●	●	●	●	●	●	●	●	●
	Indications&Alarms	Water temperature warning lamp	●	●	●	●	●	●	●	●	●
		Warning lamp for door unclosed+door status display	●	●	●	●	●	●	●	●	●
		Oil volume warning lamp	●	●	●	●	●	●	●	●	●
		Engine hood unclosed reminder+status display	●	●	●	●	●	●	●	●	●
		Oil pressure warning lamp	●	●	●	●	●	●	●	●	●
		Seat belt not fastened alarm (driver side+front passenger side)	●	●	●	●	●	●	●	●	●
Audio&Video	12.8-inch screen	Bluetooth+digital radio function (DAB)+WIFI module+OBD display, etc	●	●	●	●	–	–	–	–	–
	Audio system	Six (two high+two low+two full frequency)	●	●	●	●	–	–	–	–	–
	Audio system	Ten (four high+four low+one middle+one subwoofer)+external power amplifier	–	–	–	–	–	–	–	–	–
	12-inch screen	Bluetooth+WIFI module+language (Spanish/English)	–	–	–	–	●	●	●	●	●
	radio	AM+FM	–	–	–	–	●	●	●	●	●
	DAB		–	–	–	–	–	–	–	–	–
	Mobile phone interconnection	IOS+Android	●	●	●	●	●	●	●	●	●
	Sound system	Four (two low+two full frequency)	–	–	–	–	●	●	●	●	●
Air conditioning	Automatic air conditioning	Single temperature zone	●	●	●	●	●	●	●	●	●
		Dual temperature zone	–	–	–	–	–	–	–	–	–
		Vehicle-mounted PM2.5 filtering	●	●	●	●	●	●	●	●	●
	Rear row	Air outlet: face blowing	●	●	●	●	O	O	O	O	O
	Rear row	Air outlet: foot blowing	–	–	–	–	–	–	–	–	–
Electrical accessories	12V power supply	Front row	●	●	●	●	●	●	●	●	●
	Wireless mobile phone charging	Charging power 50W	●	●	●	●	–	–	–	–	–
	Type-C interface/USB interface		●	●	●	●	●	●	●	●	●
Interior	Sunvisor	Driver: sunvisor, soft PVC, cosmetic mirror	●	●	●	●	–	–	–	–	–
		Driver: soft PVC+cosmetic mirror+warning pattern	–	–	–	–	●	●	●	●	●
		Assistant driver: sunvisor, soft PVC, cosmetic mirror	●	●	●	●	●	●	●	●	●
	Interior basic color matching	A (shallow upper part and deep lower part)	–	–	–	–	●	●	●	●	●
	Interior basic color matching (two color matching in parallel)	Flame not extinguished (code: B）	●	●	●	●	–	–	–	–	–
		Nephelia Shinawatra (code: G）	O	O	O	O	–	–	–	–	–
	Central storage box armrest	Soft pack	●	●	●	●	●	●	●	●	●
	Floor	Short pile carpet	●	●	●	●	●	●	●	●	●
	Roof lining	Non Woven Fabrics	–	–	–	–	●	●	●	●	●
	Roof lining	Knitwear knitting cloth	●	●	●	●	–	–	–	–	–
	Reading lamp		●	●	●	●	●	●	●	●	●
	Glasses case + reading lamp + interior light	Interior lamp: one lamp on both sides of the rear row+touch switch	●	●	●	●	–	–	–	–	O
	Glove box		●	●	●	●	●	●	●	●	●
	Interior auxiliary handle	One assistant driver+one on the left and right of the second row (the roof can be folded)	●	●	●	●	●	●	●	●	●
	Entry auxiliary handle		●	●	●	●	●	●	●	●	●
	Coat and hat hook	Two front and two rear (two on the front passenger side of the central console)	●	●	●	●	●	●	●	●	●
	Cup holder	Two	●	●	●	●	●	●	●	●	●
Seats and seat belts	Seat fabric	PVC	●	●	●	●	–	–	–	–	–
		Imitation of leather	–	–	–	–	O	O	●	●	●
		Fabric	–	–	–	–	●	●	●	●	●
	Driver seat adjustment	6-way manual adjustment	●	●	●	●	●	●	●	●	●
	Driver seat adjustment	6-way power-adjustable seat + 3-level ventilation and heating function	O	O	O	O	O	O	O	O	O
	Front passenger seat adjustment	4-way manual adjustment	●	●	●	●	●	●	●	●	●
		4-way power-adjustable seat + 3-level ventilation function	O	O	O	O	O	O	O	O	O
	Front headrest type	Two, independent, adjustable up and down	●	●	●	●	●	●	●	●	●
	Second row head restraint type	Two, independent, adjustable up and down	–	–	–	–	–	–	–	–	–
	Second row head restraint type	Three, independent, adjustable up and down	●	●	●	●	●	●	●	●	●

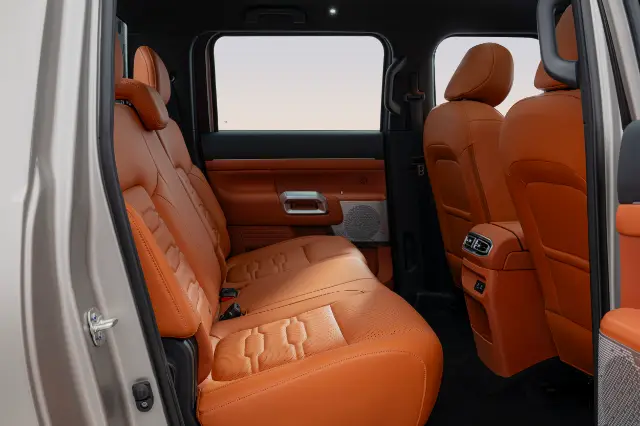

	Second row seat type	Separation of 4/6	●	●	●	●	●	●	●	●	●
		Three-point+height adjustment	●	●	●	●	●	●	●	●	●
	Second-row safety belt	Full three-point seat belt	●	●	●	●	●	●	●	●	●
	The rear seat backrest is adjustable.	Storage box	–	–	–	–	–	–	–	–	–
	The rear seat backrest is adjustable.	Seat cushion reversible	●	●	●	●	●	●	●	●	●
	Interface of child seat	ISOfix	●	●	●	●	●	●	●	●	●
Safety	Air bag	Driver+assistant driver	●	●	●	●	●	●	●	●	●
		Side air bag	O	O	O	O	O	O	O	O	O
		Side air curtain	O	O	O	O	–	–	–	–	O
	ESC	ABS+EBD+TCS+VDC+HBA+HHC+RMI+HAZ+HDC	●	●	●	●	●	●	●	●	●
	Tire pressure monitoring		●	●	●	●	●	●	●	●	●
	Front radar		O	O	O	O
	Reversing radar		●	●	●	●	●	●	●	●	●
	Reversing video camera		●	●	●	●	●	●	●	●	●
	Image 540		O	O	O	O	–	–	–	O	O
	Cruise control		●	●	●	●	●	●	●	●	●
	Off-road cruise	Crawl mode	–	●	–	●	–	–	–	–	–
	Tank turning around		–	●	–	●	–	–	–	–	–
	Transfer case	Central differential velocity	–	●	–	●	–	●	●	–	●
	Rear axle differential lock		–	O	–	O	–	O	O	–	O
	Sand area kit		–	O	–	O	O	O	O	O	O
	Throttle pedal	Suspension type	●	●	●	●	●	●	●	●	●
	Reserved retrofit switch	Four	●	●	●	●	–	–	–	–	–
EXP Needs	BOS brake priority system		●	●	●	●	●	●	●	●	●
Note:“●”Standard；“○”optional；“－”unavailable；We reserve the right to change or discontinue the specifications and configurations. If there is any discrepancy between the specification information in the form and that of the actual vehicle, the actual vehicle shall prevail.

FEATURES

Super Power

Fuel: The Golden Power Combination

Renault-Nissan Alliance M9T engine
ZF 8AT Gearbox
Maximum Torque: 500N·m
Maximum Power: 140kW

Plug-in Hybrid:

17kWh and 32.8kWh
Comprehensive driving range of nearly 1046km
Fuel consumption: 1.24L Combined, NEDC 7.9L

Super Off-road Capability

Approach angle 31°, departure angle 26°.
Ground clearance 240mm
Minimum turning diameter 13.5m
Able to challenge the gradient of 100%
Wading depth over 800mm
Over 12 driving modes, covering three locks, tank turn, off-road travel
BorgWarner’s new generation of MLOCK smart splitters
Timed 4WD + Part-Time 4WD

Super Easy to Drive

Powerful combination of front double wishbone + rear five-link integral axle + big tyres
25% rigidity of the whole vehicle’s lateral tilt angle, no fear of emergency lane change above 120km/h.
All-new EEA 3.0 domain controller-integrated electronic and electrical architecture.
Intelligent cockpit, representing the mainstream level of passenger cars

Super Safety

Designed in accordance with C – NCAP 5 – star safety standards.
The proportion of high – strength steel used in the vehicle frame is 97%, and the torsional stiffness is 4000 N·m/deg.
The proportion of high – strength steel used in the vehicle bodyis 70%, and the torsional stiffness is 2000 N·m/deg.
Over 12 million kilometers of all-terrain extreme endurance testing
