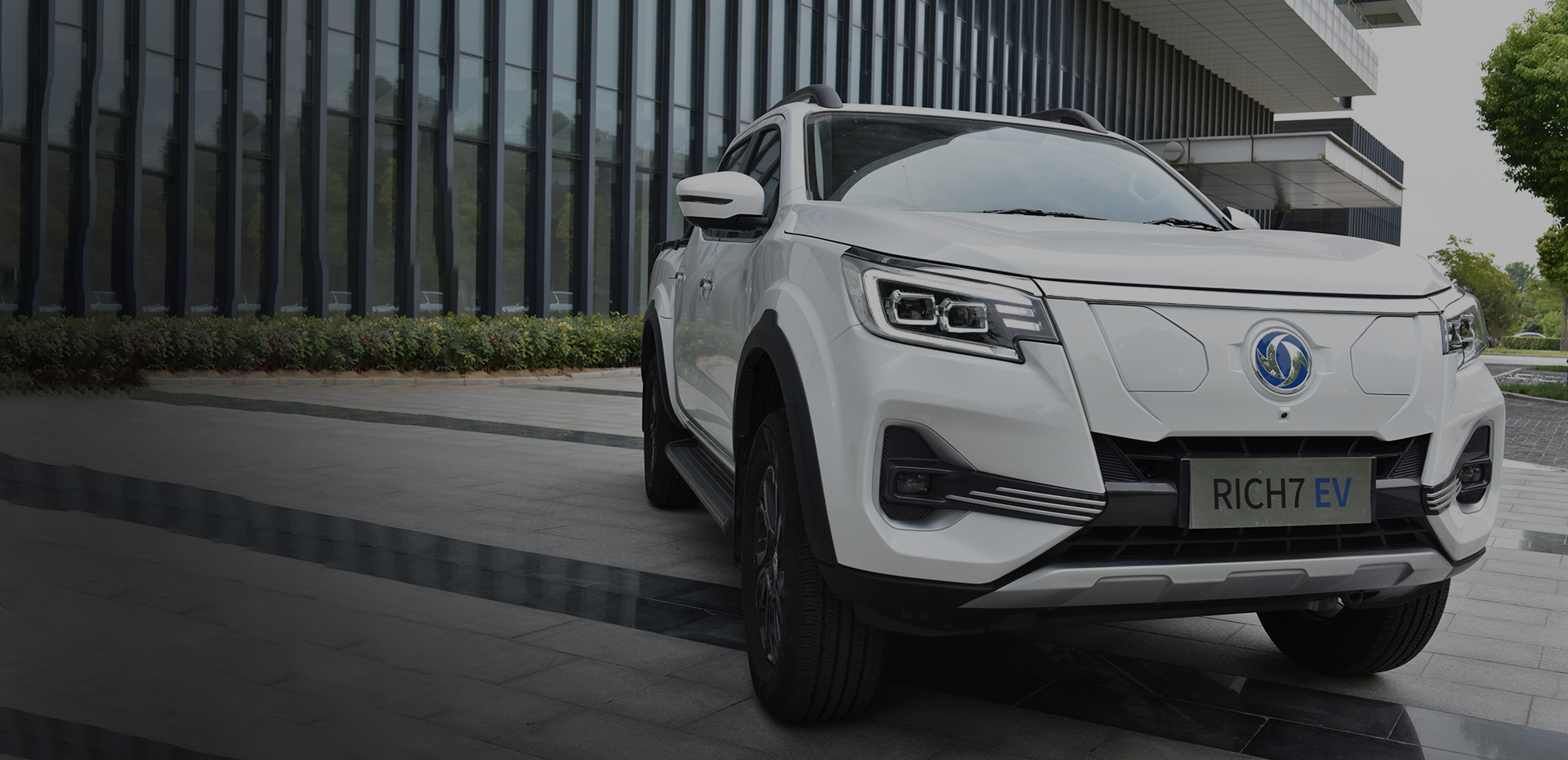

RICH 7EV - The high-quality electric pickup excelling in style, comfort, safety and performance

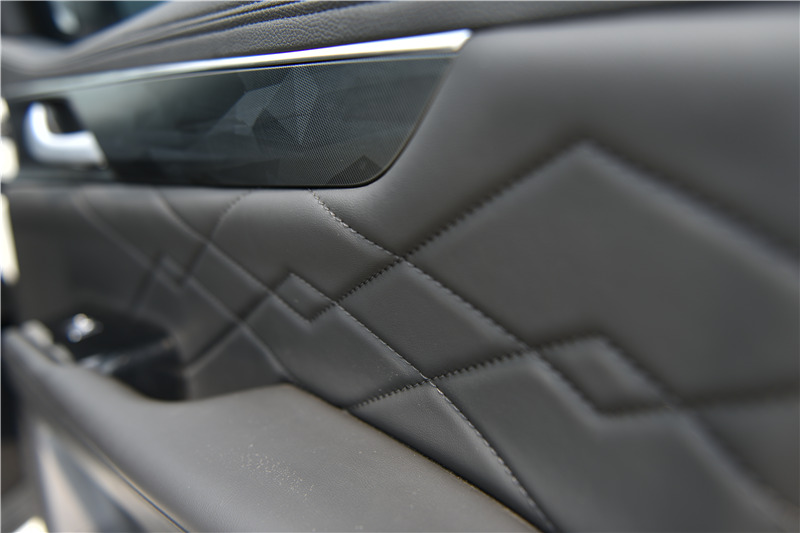

Passenger interior design

LED daytime running lights

Aerospace grade zero-gravity seats

Cruiser-class body + space-class frame

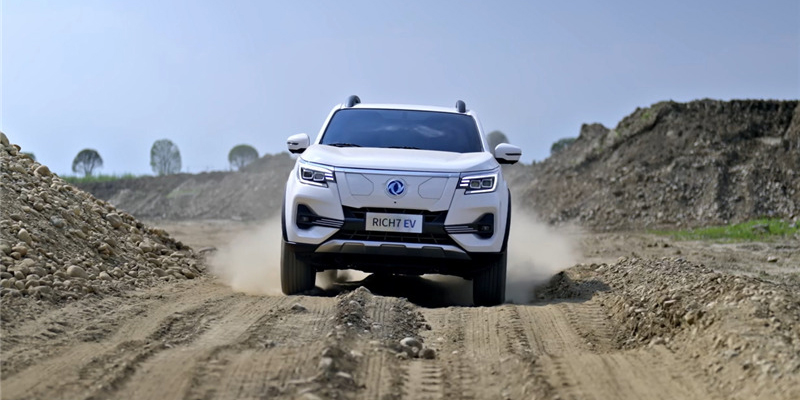

Outlook

SUV design
LED daytime running lights
Passenger interior design

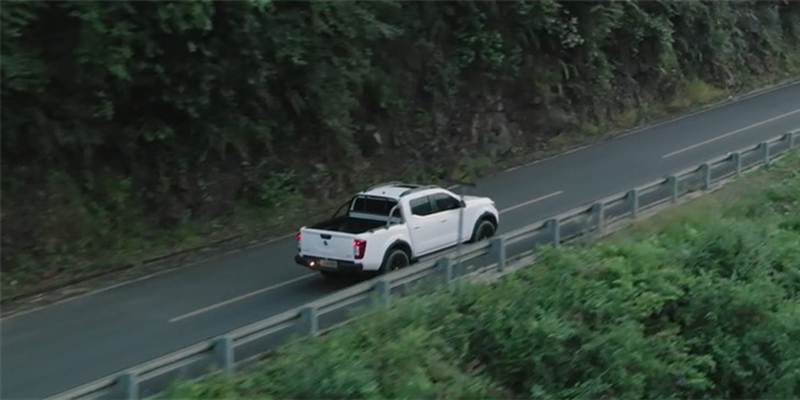

Driving

SUV-class handling experience
High crossing ability
Good energy consumption rate

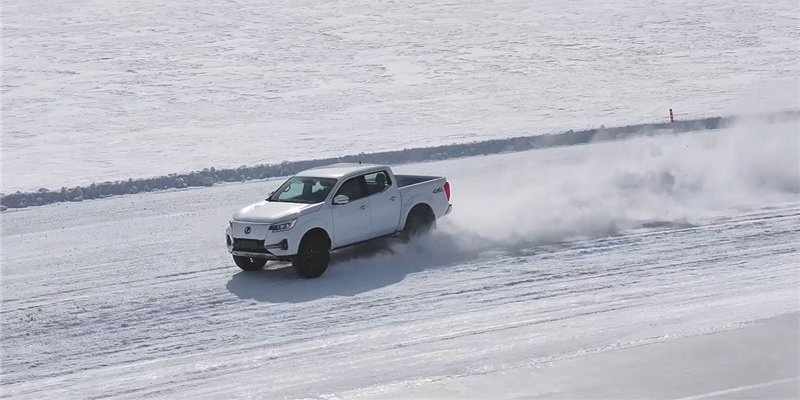

Quality

Top level wire body production
Globally unified control standards
10-year anti-rust paint

Security

Cruiser-class body + space-class frame
Four-wheel disc brake + tire pressure monitoring

DETAIL DISPLAY

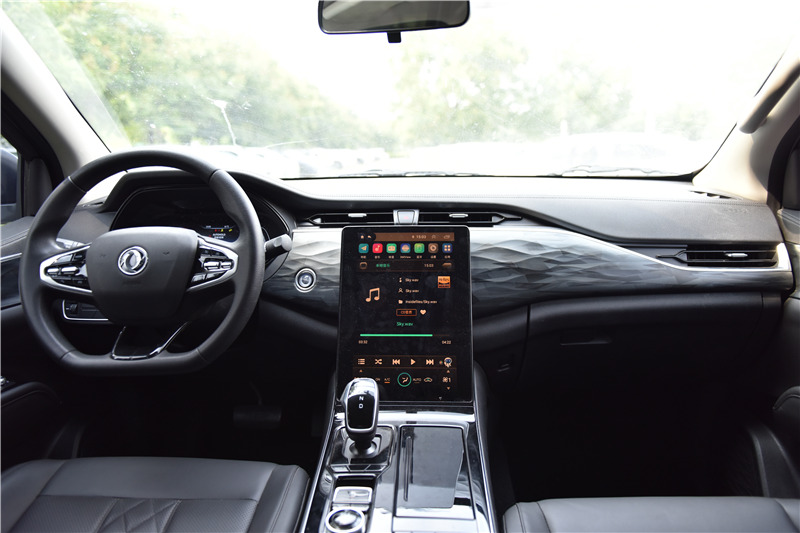

Humanized technology screen Full View Imaging System

PROCUREMENT & TEST DRIVE

We're Ready To Assist You Anytime

RICH 7EV SPECIFICATION

EXPLANATION OF SYMBOLS: "S" STANDARD; "O" OPT: "." NO SUCH EQUIPMENT.
ZNA reserves the right for any adjustment or amendment.

MODEL:Z9 GT PETROL

Attachment 1 - Rich 7 Electric

RICH 7 EV
Vehicle Model		Rich 7 Pure Electric Pickup
Energy type		Battery Electric Vehicle (BEV)
Complete vehicle specifications	Overall Dimensions L×W×H (mm)	5287 × 1880 × 1860
	Wheelbase (mm)	3150
	Gross Vehicle Weight (G.V.W.) (kg)	3495
	Curb weight of the vehicle (kg)	2230
	Rated load capacity (kg)	940
	Occupancy	5
	Maximum Gradeability (%)	17
	Minimum Turning Radius (m)	6.4
	0-100 km/h acceleration time (s)	7.9
	Range – CLTC (km)	430
	Maximum speed (km/h)	140
Battery System	Battery types	Lithium iron phosphate power battery
	Battery brand	Contemporary Amperex Technology Co., Limited (CATL)
	Battery thermal management system	Intelligent liquid cooling thermal management system
	Battery energy density	153kwh/kg
	Single cell battery capacity (Ah)	200
	Traction battery capacity (kWh)	77.28
	Charging Power (kW)	AC Charging 6.6/DC Fast Charging 70
	Charging Voltage	AC Charging 220V / Fast charging 270～400V
	Charging method	Alternating Current/Direct Current (AC/DC)
	Battery lifespan	Battery degradation over 8 years is less than 20%
	Charging Duration (hours)	Fast charging: 0.5h (30%→80%); Slow charging: 9.5h (20%→100%)
Drive Motor System	Drive Motor Type	Permanent Magnet Synchronous Motor
	Maximum output power / engine speed / torque (kW/r/min/N.m)	Front drive: 180/16000/309 Rear drive: 180/11000/420
	Drive system	4WD
	Cooling method of the traction motor	Liquid Cooling
Driving mechanism	Minimum Ground Clearance (mm)	210
	Suspension System (front/rear)	Front double-wishbone independent suspension/Rear leaf spring
	Braking System (front/rear)	Disk/Disk
	Type of Assistance	Vacuum Booster
	Transmission	Automatic
	Steering System	EPS Electric Power Steering
	Number of Airbags	2
	Spare tire	–
	Tire Specification	255/60 R18
	Vehicle-to-Grid Function	●
	V2L Function	●
Safety	ABS (Anti-lock Braking System)	●
	EBD (Electronic Brakeforce Distribution)	●
	ESP (Electronic Stability Program)	●
	VDC (Vehicle Dynamic Control)	●
	HBA (Hydraulic Brake Assist System)	●
	Hill Start Assist Rear-wheel Drive System	●
	Hill Descent Control	●
	Differential Lock	●
	Front Parking Sensor	●
	Rear Parking Sensors	●
	Tire Pressure Monitoring System (TPMS)	●
	Rearview camera image	●
	360-degree surround-view system	●
	Automatic Parking AutoHold	●
	Driver’s seat airbag	●
	Front passenger airbag	●
	Automatic Collision Unlock and Power Disconnection	●
Comfort	Drive mode: ECO-NORMAL-SPORT, three driving modes	●

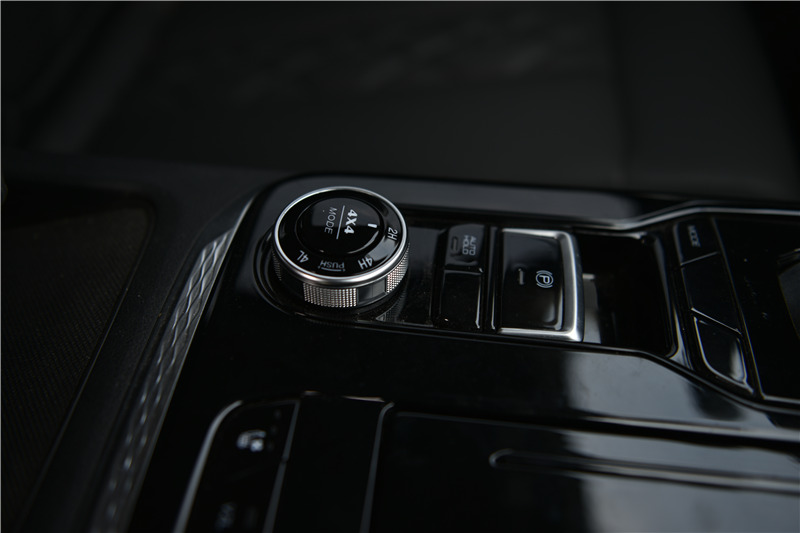

	Yacht-style gear shift system	●
	Automatic climate control system	●
	Side step board	O

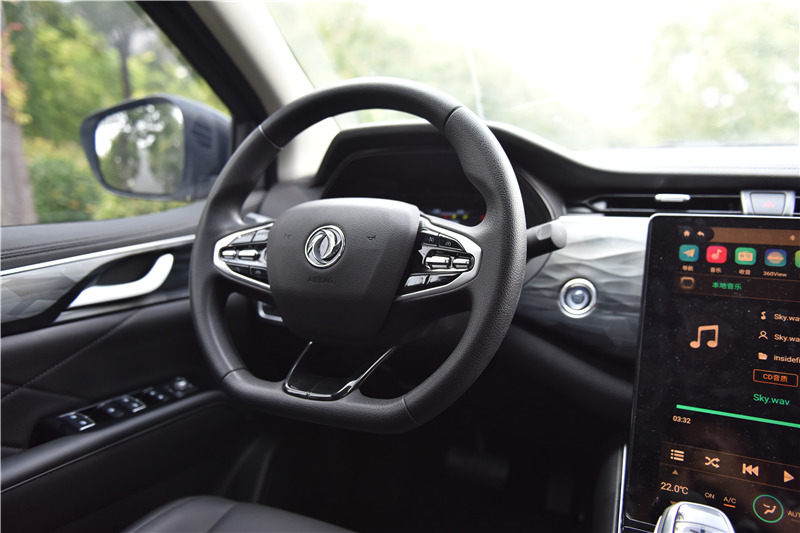

	Multifunction steering wheel	●
	Faux leather seats	●
	Cruise Control	●
	Multifunctional display (full LCD)	●
	10-inch full LCD instrument cluster	O
	10-inch multimedia infotainment system	●
	antenna	●
	Gas spring engine hood	●
	Short-pile automotive carpet	●
Convenience	Manual adjustment of side-view mirror	●
	Electric power-folding side mirror	O
	Four power-operated windows	●
	Smart Remote Key	●
	Portable mobile charging cable	●
	Keyless One-Touch Start PEPS	●
	Tire Sealant + Air Compressor	●
Symbol Explanation: “●” Standard Equipment; “-” Not Available; “○” Optional Equipment. The aforementioned configuration represents the primary specifications of the vehicle; the complete specifications are subject to the actual vehicle.
